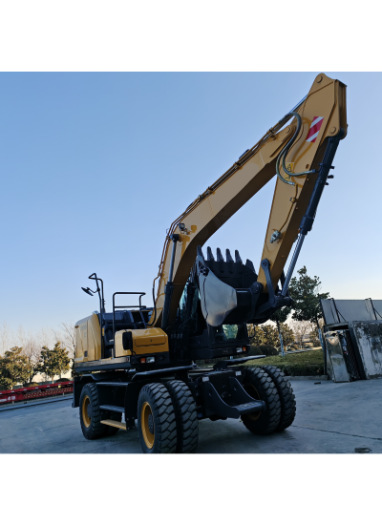

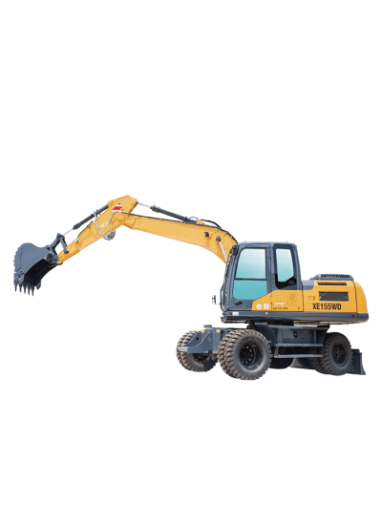

The XE155WD is a medium-sized wheeled excavator launched by XCMG, combining high mobility with strong operational capabilities. It is particularly suitable for urban construction, municipal engineering, road construction, and various working conditions. Compared with tracked excavators, the XE155WD has a faster relocation speed, causes less damage to the road surface, and is suitable for frequent movement and precision construction needs.
Applicable working conditions:
1. Municipal engineering and urban infrastructure construction
2. Road construction and maintenance
3. Pipeline construction and trench excavation
4. Landscaping and material handling
+
-
Features:
1.Wheeled chassis design: Flexible movement and fast relocation, suitable for frequent urban and municipal work conditions.
2.High-efficiency hydraulic system: Rapid response and precise control ensure smooth and efficient excavation and loading/unloading operations.
3.Outriggers + bulldozer blade structure: Effectively enhances overall machine stability and safety during operation.
4.Edible cab: Wide field of vision and reasonable control layout improve comfort during long-term operation.
5.Multi-functional adaptability: Can be equipped with various attachments such as hydraulic breakers and grab buckets to meet diverse construction needs.
Advantages:
01
Outstanding mobility: No need for frequent use of transport vehicles, saving time and costs associated with relocation.
02
Road-friendly: Wheeled operation causes less damage to urban roads, making it more suitable for municipal engineering projects.
03
High operational efficiency: Stable power output and a highly coordinated hydraulic system result in overall efficiency superior to comparable equipment.
04
Wide range of applications: It has obvious advantages in municipal construction, road maintenance, pipeline engineering and landscaping operations.
Model | Unit | XE155WD |
Operating weight | Kg | 13900 |
Bucket capacity | m³ | 0.58 |
Engine | ||
Model | \ | 1104D-E44TA |
Direct injection | \ | √ |
Four strokes | \ | √ |
Water cooled | \ | √ |
Turbocharged | \ | √ |
Air to air intercooler | \ | √ |
Number of cylinders | \ | 4 |
Rated power/speed | kw/rpm | 106/2200 |
Maximum torque/speed | N.m | 558/1400 |
Piston displacement | L | 4.4 |
Main performance | ||
Travel speed(H/L) | km/h | 38/11 |
Swing speed | r/min | 12 |
Gradeability | ° | ≤35 |
Bucket digging force | kN | 95 |
Arm digging force | kN | 72 |
Maximum tractive force | kN | 80 |
Hydraulic system | ||
Main pump | \ | 2 piston pump |
Relief valve setting pressure | L/min | 254 |
Pressure of prime valve | bar | 313 |
Travel system pressure | bar | 313 |
Swing system pressure | bar | 250 |
Pilot system pressure | bar | 39 |
Oil Capacity | ||
Fuel tank capacity | L | 250 |
Hydraulic tank capacity | L | 135 |
Engine oil capacity | L | 11 |
Appearance size | ||
Overall length | mm | 7714 |
Overall width | mm | 2495 |
Overall height | mm | 3180 |
Counterweight clearance | mm | 1252 |
Minimum ground clearance | mm | 360 |
Minimum tail swing radius | mm | 2316 |
Minimum tuming radius | mm | 6500 |
Wheel base | mm | 2800 |
Tread width | mm | 290*2 |
Width of platform | mm | 2490 |
The distance from front axle to the rotary center | mm | 1700 |
Engine hood height | mm | 2474 |
Working scope | ||
Maximum digging reach | mm | 7780 |
Maximum ground digging radius | mm | 7570 |
Maximum digging height | mm | 8190 |
Maximum dumping height | mm | 5855 |
Maximum digging depth | mm | 4630 |
Maximum depth cut for 8 ft level bottom | mm | 4325 |
Maximum vertical wall digging depth | mm | 4165 |
Maximum dozer lifting height | mm | 500 |
Maximum dozer cutting depth | mm | 98 |
Worker Standard | ||
Length of boom | mm | 4600 |
Length of am | mm | 2100 |
Bucket capacity | m³ | 0.58 |
Worker Optional | ||
Length of boom | m³ | \ |
Length of am | m³ | 2500 |
Bucket capacity | m³ | 0.24-0.7 |
The XE155WD is a medium-sized wheeled excavator with high mobility as its core advantage, making it particularly suitable for urban and municipal engineering applications. Thanks to its wheeled chassis's rapid relocation capability, efficient and reliable power and hydraulic systems, and stable operating performance provided by its outriggers and bulldozer blade, it can maintain high-efficiency construction in multi-point, frequent-movement conditions. Balancing operator comfort and multi-functional adaptability, the XE155WD is an ideal piece of equipment for road construction, municipal pipeline networks, and urban infrastructure development.
