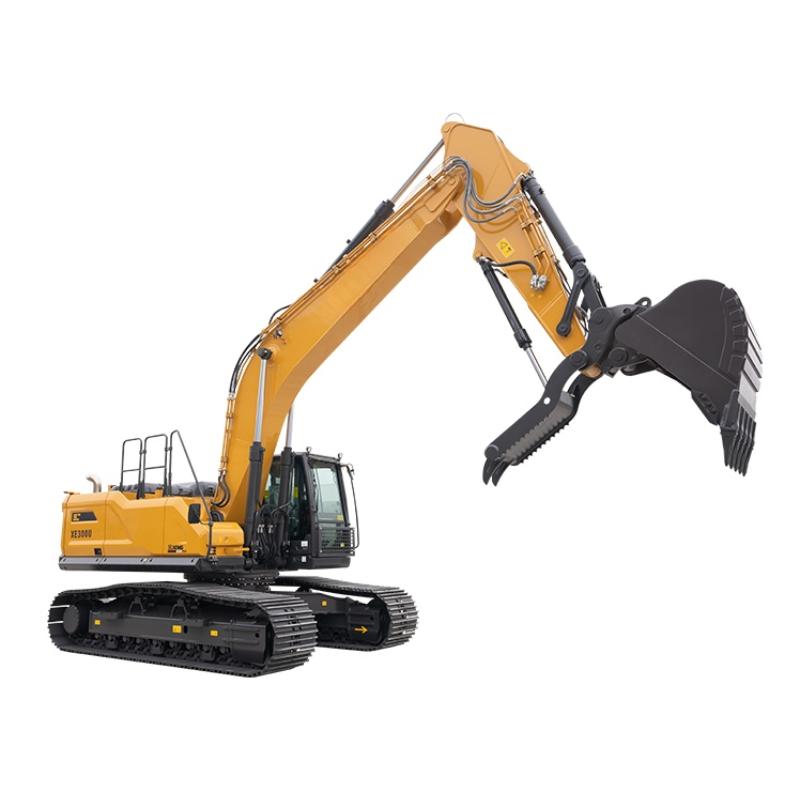

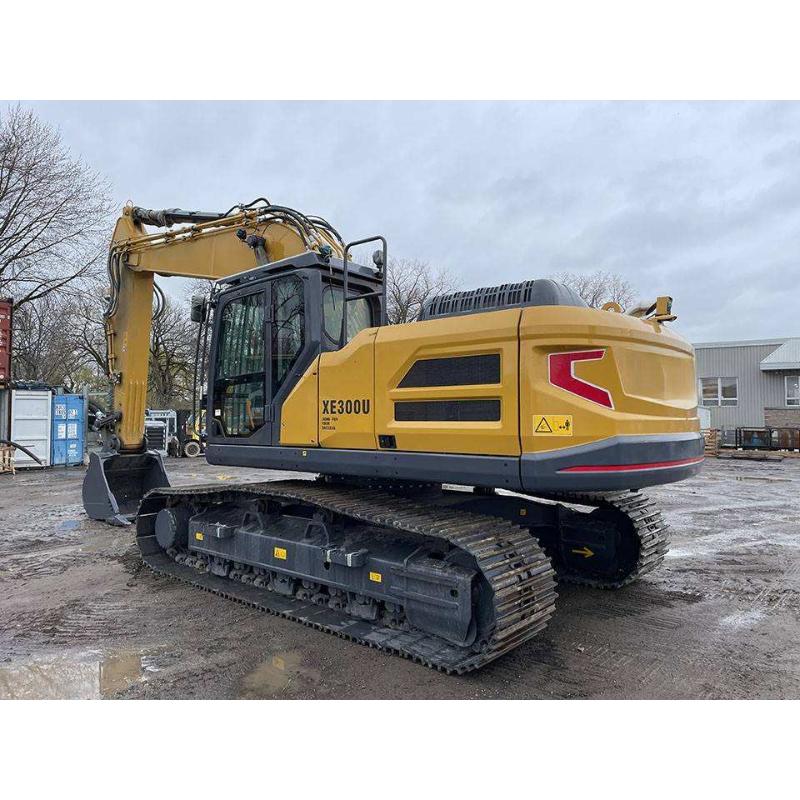

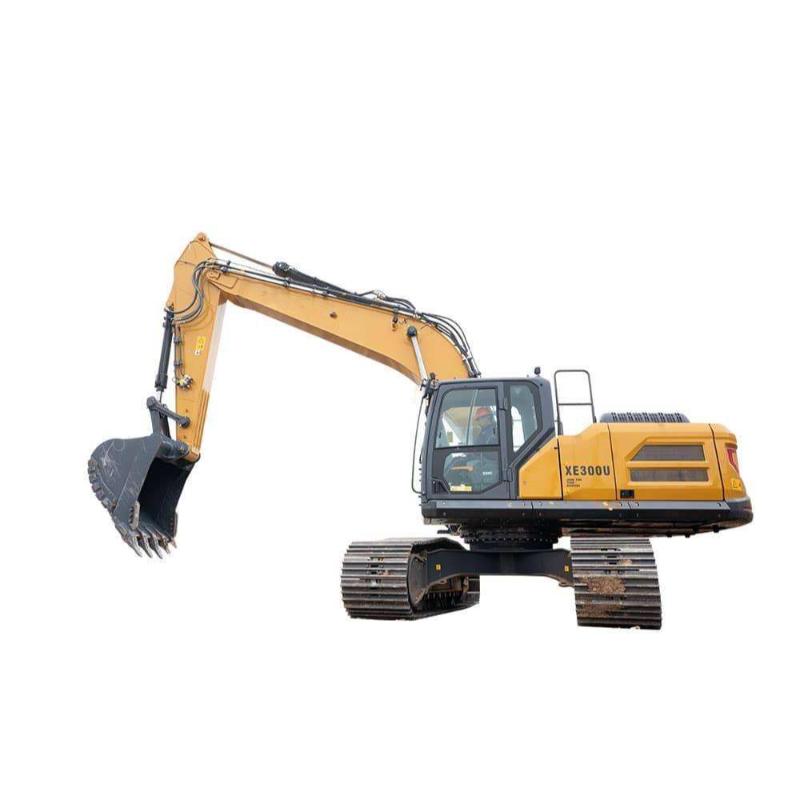

The XE300U crawler hydraulic excavator is a hot sell model with high-performance and 30-ton class construction machine from XCMG, engineered for demanding applications such as large-scale earthworks, mining, road construction and municipal engineering etc. Equipped with a highly efficient engine and an advanced hydraulic control system, the machine delivers powerful digging force, superior operational efficiency, and excellent fuel economy, meeting the demands of continuous, heavy-duty operation.
+
-
Features and Advantages:
1.Powerful Output for Heavy-Duty Operations：Equipped with a high-performance engine and XCMG’s advanced hydraulic system, This machine has stable performance and can efficiently handle high-intensity operations such as earth and rock excavation, mine loading, road construction, and large-scale infrastructure projects.
2. Efficient Hydraulic System：The system, employing intelligent hydraulic control technology, ensures smooth and coordinated movement of the excavator's boom, stick, and bucket. This rapid response and shorter work cycles effectively improve the excavator's operational efficiency.
3. Superior Digging Capability：The combination of reinforced working device and large-capacity bucket design provides greater digging force, lifting capacity and working range, easily handling complex conditions such as hard soil, rock and large earthwork projects.
4. Energy-Efficient , Lowering Operating Costs：The perfect match between the engine and hydraulic system, combined with intelligent power control technology, automatically optimizes power output based on operating conditions. This reduces fuel consumption while maintaining production efficiency, helping users lower long-term operating costs.
5. Rugged Durability and High Reliability：The undercarriage, swing platform, and work device are constructed from high-strength steel, with key load-bearing areas reinforced. The design offers excellent impact and fatigue resistance, ensuring suitability for prolonged, continuous heavy-duty operation.
6. Comfortable, Intelligent Operation：The spacious cab is equipped with a suspended seat, automatic air conditioning, a large LCD screen, and an ergonomic control layout. This effectively reduces operator fatigue and improves comfort during long working hours.
7. Easy Maintenance：The engine compartment features a spacious opening design, facilitating quick and easy access to filters, radiators, and critical maintenance points. This simplifies routine maintenance, effectively reduces maintenance time, and minimizes equipment downtime. Spare parts are readily available.
8. Versatile Attachment Compatibility：It supports quick switching between various attachments, such as hydraulic breakers, timber grabs, hydraulic shears, and scrap grabs, making it suitable for a variety of applications including mining, demolition, municipal construction, landscaping, and road engineering.
The XCMG XE300U excavator is widely used for：
·Large-scale earthwork engineering
· Road and highway construction Municipal engineering
· Building foundation construction

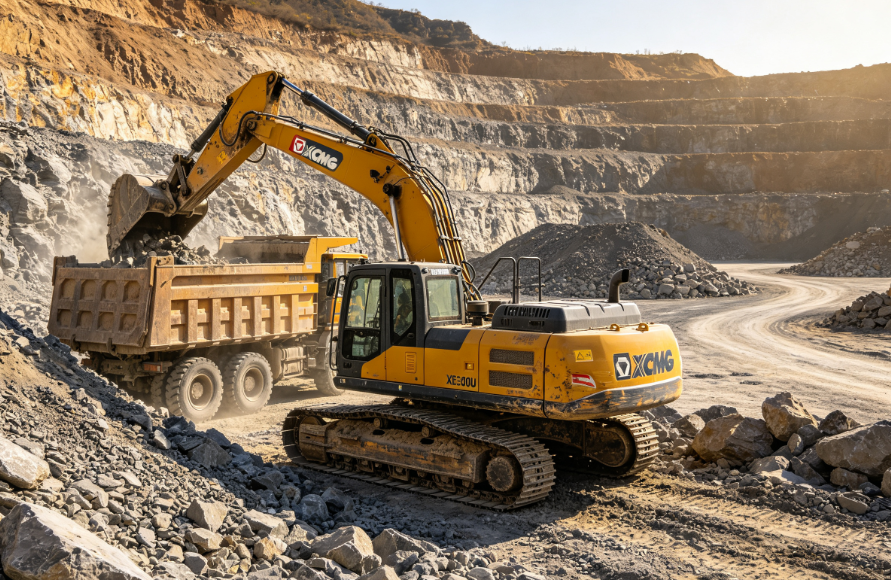

·Mining and quarry auxiliary operations
01
Powerful performance, efficient heavy-duty operation. Rated power: 168 kW | Working weight: 29.8 t. Equipped with a high-performance 168 kW engine and a working weight of approximately 29.8 tons, this machine provides continuous and stable power for mining, earthmoving, and large infrastructure projects, meeting the needs of high-intensity, continuous operations.
02
Super digging capabilities for increased efficiency. Bucket capacity: 1.4–1.6 cubic meters | Maximum digging depth: approx. 7,135 mm. Equipped with a reinforced front-end attachment and a large-capacity bucket, this machine can dig to a maximum depth of approximately 7.14 meters. It can quickly complete deep foundation excavation, large trench excavation, and heavy-duty digging operations, thereby improving work cycle efficiency.
03
Maximum digging radius: approx. 10,620 mm | Maximum unloading height: approx. 7,170 mm. The optimized boom and stick structure allows for a maximum digging radius exceeding 10.6 meters and an unloading height of approximately 7.17 meters. This results in a wider working area, reduced machine repositioning, and improved truck loading efficiency.
04
Energy-efficient and reliable, reducing operating costs. Fuel tank capacity: 520 liters | Maximum travel speed up to 5.5 km/h. The engine and hydraulic system are highly matched to ensure low fuel consumption and high operating efficiency. The large 520-liter fuel tank supports long-term continuous operation, while the maximum travel speed of 5.5 km/h facilitates rapid relocation to work sites, thereby increasing equipment uptime and reducing overall operating costs.
| Sales model | XE300U | |
| Operating weight | 32700 | |
| Bucket capacity | 1.4~1.6 | |
| Engine | Model | QSB6.7 |
| Direct injection | √ | |
| Four strokes | √ | |
| Water cooling | √ | |
| Turbo-charging | √ | |
| No. of cylinders | 6 | |
| Rated power | 186/2000 | |
| Maximum torque/speed | 990/1500 | |
| Displacement | 6.7 | |
Main performance | Travel speed | 5.0/2.9 |
| Swing speed | 9.8 | |
| Gradeability | ≤35 | |
| Ground pressure | 44.7 | |
| Bucket digging force | 201 | |
| Arm digging force | 140 | |
| Maximum tractive force | 262 | |
| Hydraulic system | Rated flow of main pump | 2×266 |
| Main safety valve pressure | 34.3/37 | |
| Travel system pressure | 34.3 | |
| Swing system pressure | 30 | |
| Pilot system pressure | 3.9 | |
Oil Capacity | Fuel tank capacity | 520 |
| Hydraulic tank capacity | 270 | |
| Engine oil capacity | 30 | |
Appearance size | Overall length | 10645 |
| Overall width | 3390 | |
| Overall height | 3500 | |
| Width of platform | 2960 | |
| Track length | 4945 | |
| Overall width of chassis | 3390 | |
| Track width | 800 | |
| Wheel base of crawler | 4030 | |
| Track gauge | 2590 | |
| Counterweight clearance | 1198 | |
| Min. ground clearance | 536 | |
| Min. tail swing radius | 3200 | |
| Track height | 1085 | |
Working scope | Max. digging height | 10145 |
| Max. dumping height | 7180 | |
| Max. digging depth | 7200 | |
| Maximum depth cut for 2240mm(8 ft) level bottom | - | |
| Max. vertical wall digging depth | 5185 | |
| Max. digging radius | 10665 | |
| Min. swing radius | 3850 | |
Standard | Length of boom | 6200 |
| Length of arm | 3110 | |
| Bucket capacity | 1.4 | |
Optional | Length of boom | 6200 |
| Length of arm | 2650 | |
| Bucket capacity | 1.4(Rock bucket) 1.6(Earthwork bucket) | |
FAQ:
Q1: What are the main applications of the XCMG XE300U excavator?
A: The XCMG XE300U is mainly used for heavy-duty operations such as large-scale earthmoving projects, road construction, building foundation engineering, municipal engineering, and mining.
Q2: What attachments can the XE300U excavator use?
A: Depending on the job requirements, the XE300U can be equipped with different attachments, such as a standard bucket, rock bucket, breaker hammer, and other suitable tools.
Q3: Can the XE300U be used for mining operations?
A: Yes. The XE300U can be used for mine support, stripping, material loading, and general earthmoving operations. For very hard rock or special mining conditions, customers should select the appropriate bucket and attachments according to the specific operation.
Q4: Can you arrange shipping from China?
A: Yes. We can help arrange shipment from China to your destination port. Available shipping methods may include container shipping, Ro-Ro shipping or bulk shipping, depending on the machine and order quantity.
