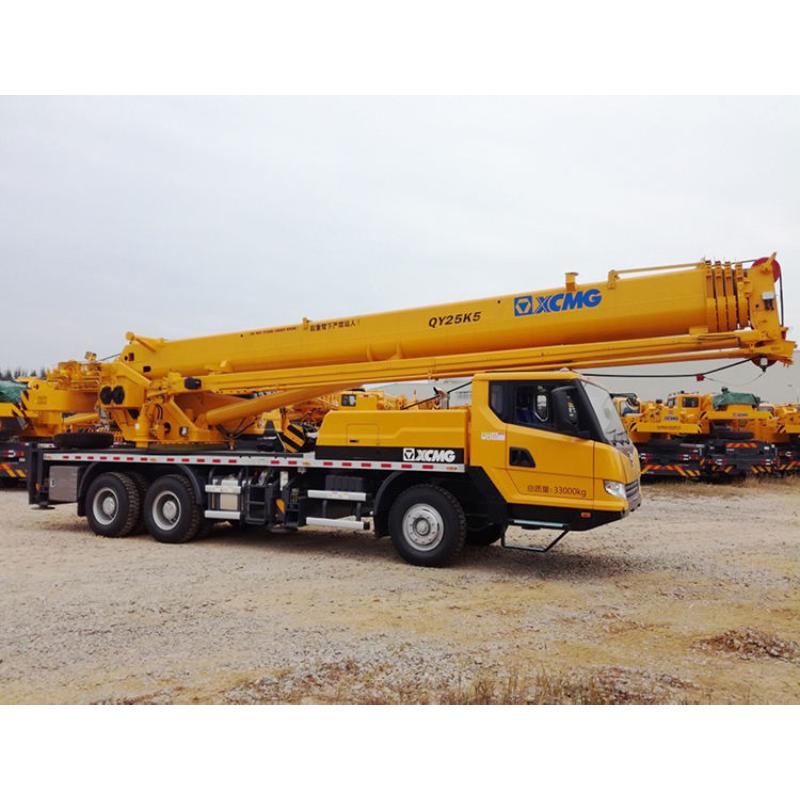

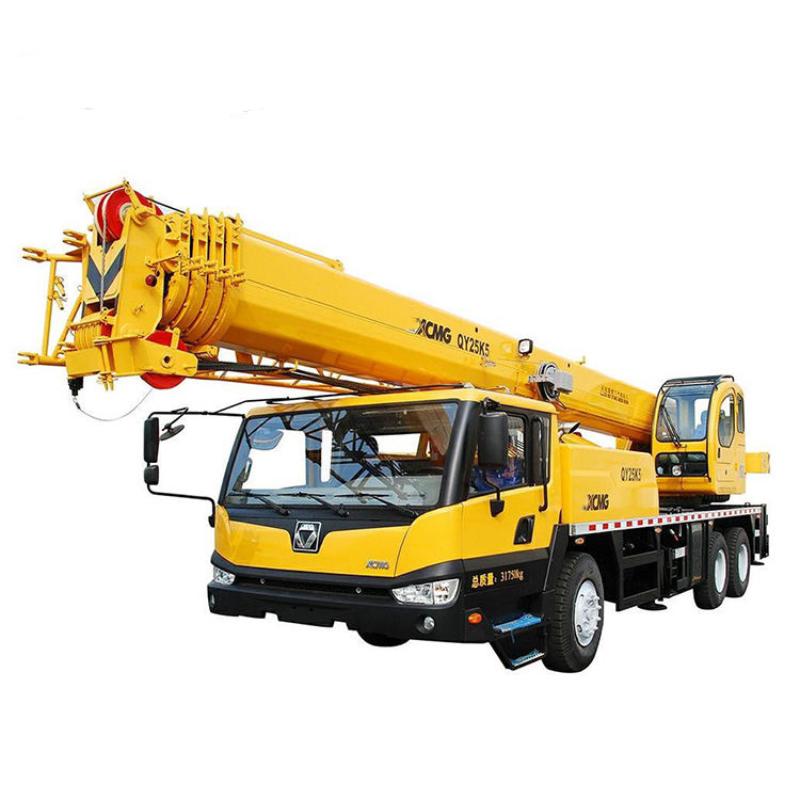

The QY25K5 is a classic 25-ton truck crane introduced by XCMG, designed specifically for construction projects, municipal engineering, and various lifting operations. This machine integrates powerful lifting capabilities, exceptional maneuverability, and robust reliability, enabling it to efficiently handle a diverse range of working conditions.
Equipped with a high-performance engine and a mature, stable hydraulic system, this model achieves an optimal balance between power output and precise control. Furthermore, its optimized boom structure and chassis system ensure outstanding driving performance and operational stability, all while maintaining high work efficiency.
+
-
Advantages and highlights:
1. Bi-hexagonal cross-section boom has small depth-width ratio, strong bearing capacity, small deformation, strong anti bending and powerful lifting capacity. The main boom length is 10.7m to 34m, completely surpassing its rivals with excellent lifting capacity. Steel plate for main boom is BS700MC, lifting performance of fully-extended boom improves 10~20%, exceeding its rival 1~7%.01
Powerful Lifting Capacity Rated lifting capacity of 25 t and a lifting moment of 961 kN·m, meeting diverse lifting requirements across various scenarios.
02
Extensive Operating Range A maximum main boom length of 39.5 m and a minimum working radius of 3 m, covering a significantly larger operating area.
03
Robust Power and High Efficiency Equipped with a 206 kW engine and a top travel speed of 75 km/h, ensuring high efficiency during site-to-site transfers.
04
Stable and Reliable Featuring an outrigger span of 5.14 × 6 m, the machine demonstrates exceptional overall stability, ensuring safer and more reliable operations.
| Item | Specification |
|---|---|
| Model | QY25K5 |
| Overall Dimensions (L×W×H) | 12.000 × 2.500 × 3.380 m |
| Operating Weight | 31.75 t |
| Max Travel Speed | 75 km/h |
| Min Turning Radius | 11 m |
| Max Gradeability | 30% |
| Approach/Departure Angle | 16° / 13° |
| Min Ground Clearance | 260 mm |
| Engine Model | SC8DK280Q3 |
| Max Engine Power | 206 kW |
| Rated Speed | 2200 rpm |
| Rated Lifting Capacity | 25 t |
| Rated Lifting Moment | 961 kN·m |
| Min Working Radius | 3 m |
| Boom Length (Base) | 10.1 m |
| Boom Length (Fully Extended) | 39.5 m |
| Boom Extension Time | 150 s |
| Slewing Speed | 2.5 r/min |
| Outrigger Span (L×W) | 5.14 × 6 m |
Boasting a robust 25-ton lifting capacity and a rated lifting moment of 961 kN·m, the QY25K5 demonstrates stable and highly efficient performance across a wide range of hoisting operations. Equipped with a main boom extending up to 39.5 meters, it offers an expansive working range, enabling it to effortlessly handle the diverse demands of construction projects, municipal engineering, and equipment installation tasks. The machine is powered by a high-output 206 kW engine, delivering ample power and a maximum travel speed of 75 km/h—striking an optimal balance between operational efficiency and on-site maneuverability.
Furthermore, the QY25K5 features an optimized chassis structure and outrigger design (with a span of 5.14 × 6 meters), enhancing overall stability and ensuring safer, more reliable operations. Its user-friendly control system and comfortable cab effectively minimize operator fatigue, significantly improving the experience during prolonged work shifts. These advantages—combined with ease of maintenance and a high operational uptime—ensure that the machine not only maximizes construction efficiency but also effectively keeps operating and maintenance costs in check.
