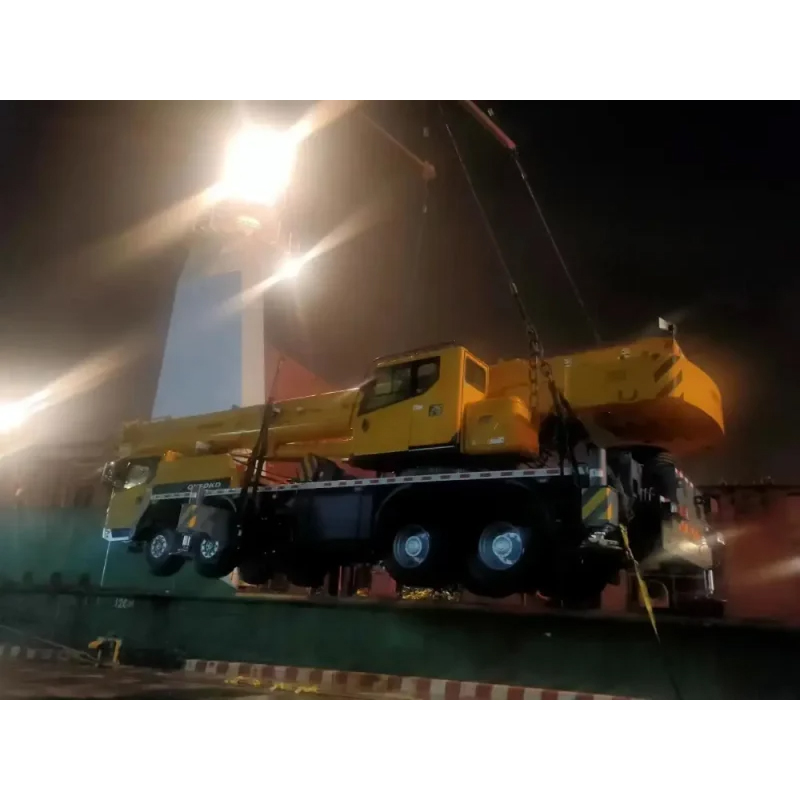

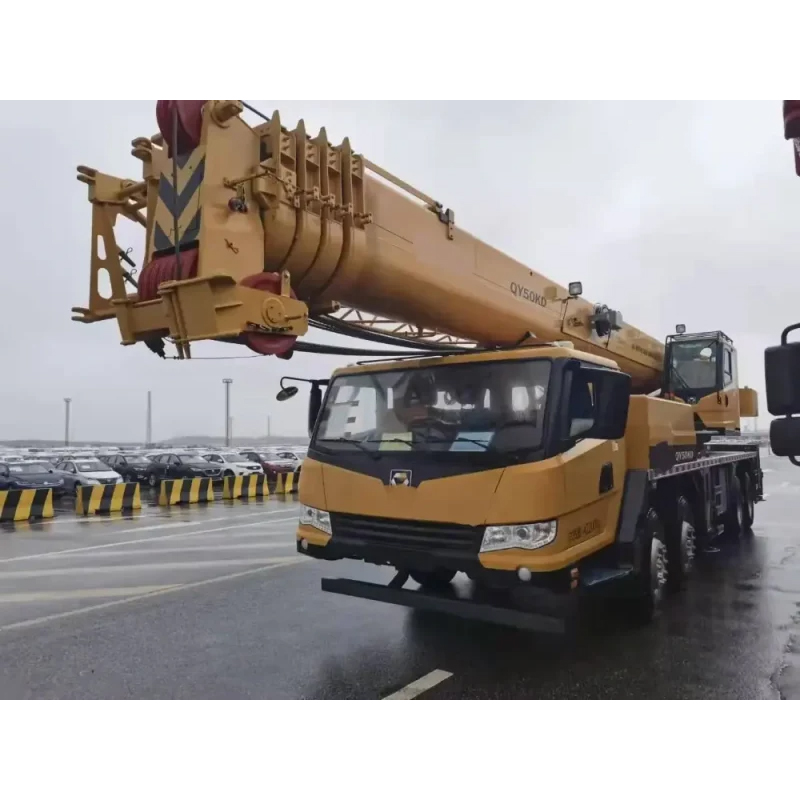

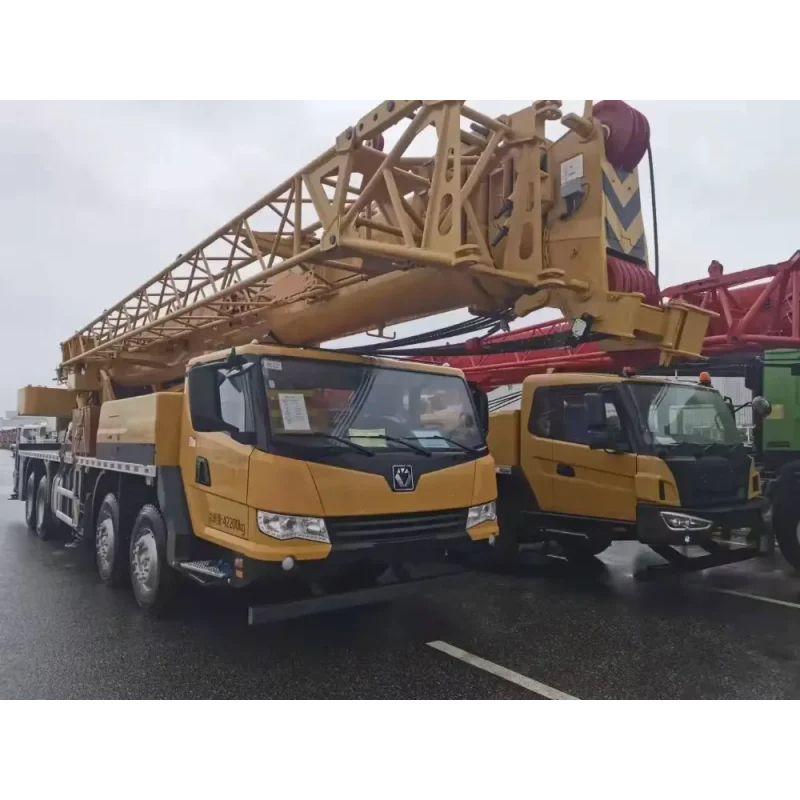

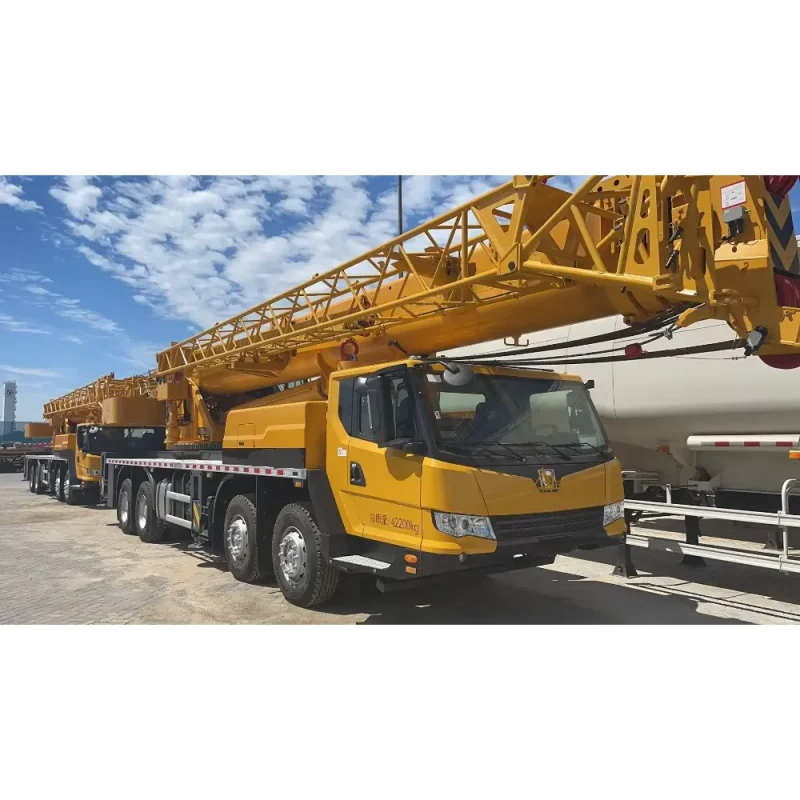

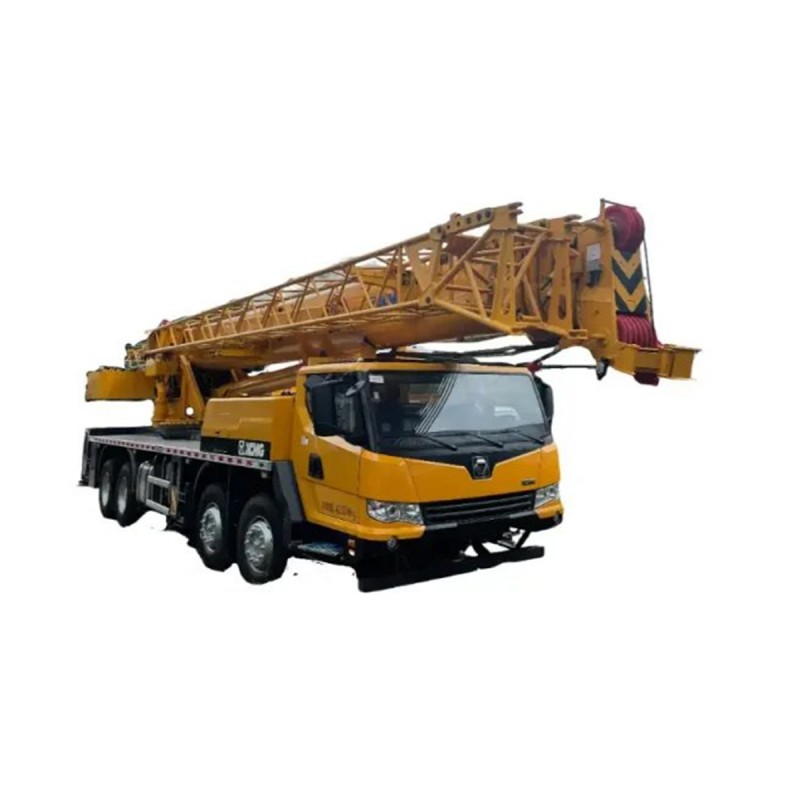

XCMG QY50KD truck crane is a high-performance lifting equipment with excellent lifting capacity and stable performance. The main parameters of the crane include: the length of the whole machine is 14030mm, the width is 2800mm, the height is 3630mm, and the self-disassembly counterweight mass is 1000kg. It is equipped with two engine models, D10.38-50 and SC10E380Q5, with rated power of 276kW and 279kW respectively, which can meet the needs of various complex construction sites.
+
-
Advantages
01
Powerful Lifting Capacity: With a 50-ton lifting capacity and optimized boom length and lifting performance, it meets the needs of various medium and large-scale lifting operations.
02
Excellent Mobility: Multi-axle chassis design allows for rapid site relocation, suitable for frequent site changes and complex road conditions.
03
Stable and Reliable: Reinforced chassis and mature hydraulic system ensure smooth lifting operations and high safety.
04
Comfortable Operation and Convenient Maintenance : Humanized cab and control system reduce operator fatigue while facilitating maintenance and improving uptime.
QY50KD Product Specifications
| Description | Unit | Parameter value | |
| Overall length | mm | 13930 | |
| Overall width | mm | 2780 | |
| Overall Height | mm | 3630 | |
| Axle base | 1st ,2nd axle | mm | 1470 |
| 2nd ,3rd axle | 4300 | ||
| 3rd ,4th axle | 1350 | ||
| Wheel Base | mm | 2304+2075 | |
| Front overhang/rear overhang | mm | 2389/2064or 2376/2064 | |
| Front extension/rear extension | mm | 2131/226 or 2144/226 | |
| Total vehicle mass in travel configuration | kg | 42200 | |
| Axle load | Front axle | kg | 16200 |
| Rear axle | 26000 | ||
| Engine Model | WD615.338 | ||
| Engine rated power | kw/(r/min) | 276/2200 | |
| Engine rated torque | N.m/(r/min) | 1500/1300-1600 | |
| Max. travel speed | km/h | 85 | |
| Min. steady travel speed | km/h | 2~3 | |
| Min. turning diameter | m | 24 | |
| Min. ground clearance | mm | 327 | |
| Max. grade ability | % | 42 | |
| Approach angle | ° | 19 | |
| Departure angle | ° | 15 | |
| Braking distance (at 30 km/h, full load ) | m | ≤10 | |
| Oil consumption per 100km | L | 40 | |
| Exterior noise level during acceleration traveling | dB (A) | ≤88 | |
| Noise level at seated position | dB (A) | ≤90 | |
