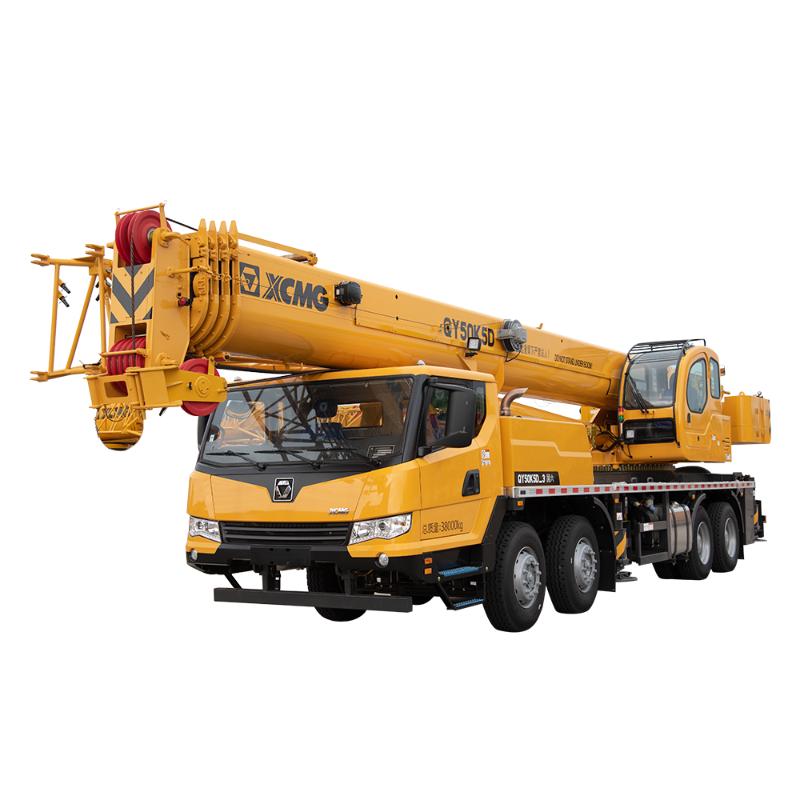

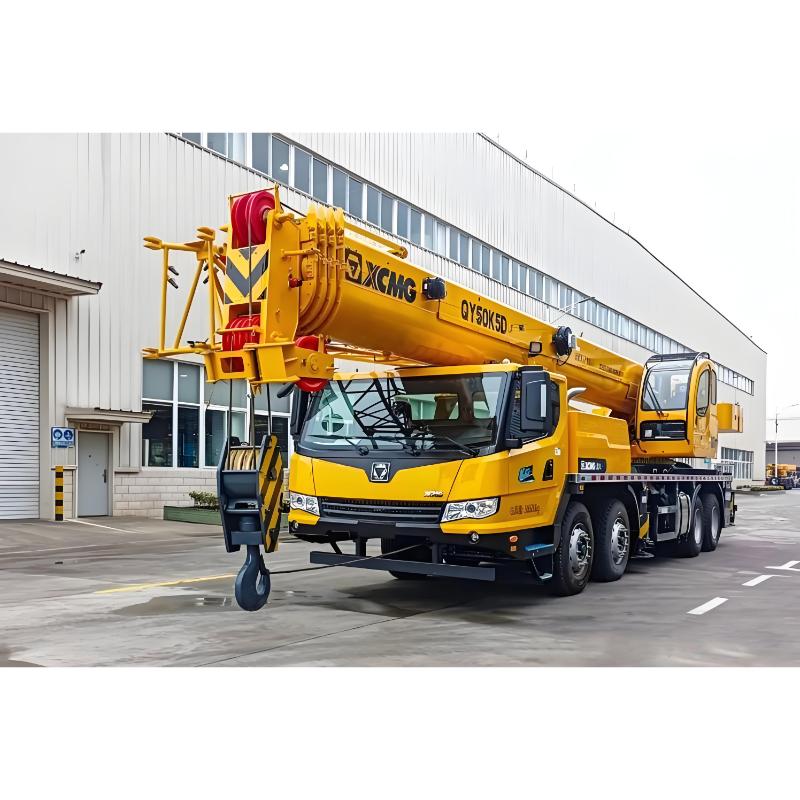

The QY50K5D is a high-performance, 50-ton truck crane introduced by XCMG, engineered specifically for medium-to-large-scale lifting projects and complex construction environments. This machine integrates powerful lifting capabilities, superior maneuverability, and a stable, reliable structural design, making it widely applicable across a diverse range of operational scenarios—including general construction, municipal engineering, bridge building, and equipment installation.
Equipped with a high-power engine and a proven hydraulic system, this model achieves an efficient synergy between power output and precision control. Furthermore, its optimized multi-section telescopic main boom design extends the operational coverage area and significantly boosts lifting efficiency. Concurrently, the chassis and outrigger structures have undergone reinforced design to ensure exceptional stability and safety, even when operating under heavy-load conditions.
+
-
1. Powerful Lifting Performance, Adaptable to Diverse Conditions
Rated lifting capacity of 50 tons, delivering robust lifting power.
Designed with a high lifting moment to meet the demands of medium-to-large scale hoisting operations and complex working environments.
Ideal for applications in construction, bridge engineering, equipment installation, and similar scenarios.
2. Long-Boom Design, Extensive Operating Range
Features a multi-section telescopic main boom that covers a significantly larger operating radius.
Offers strong capabilities for high-altitude and long-distance hoisting, thereby boosting construction efficiency.
Adaptable to a wide variety of hoisting environments, reducing the frequency of equipment relocation.
3. Powerful Performance, Excellent Maneuverability
Equipped with a high-power engine that delivers stable and consistent power output.
Achieves high travel speeds, ensuring rapid and efficient site-to-site transfers.
Boasts excellent off-road passability and gradeability, allowing it to navigate complex construction roads with ease.
4. Stable Structure, Safe and Reliable
Features an optimized design for both the chassis and outrigger structures.
Ensures exceptional stability under heavy-load conditions, resulting in safer operations.
Key components have been reinforced to enhance the overall durability and service life of the machine.
5. Intelligent Controls, Enhanced Efficiency
Equipped with an intelligent monitoring system and comprehensive safety protection features.
Enables precise control, thereby minimizing the risk of operational errors.
Improves equipment management efficiency and enhances overall construction safety.
6. Comfortable Cab, Convenient Maintenance
Features a spacious cab with an ergonomically designed control layout.
Helps reduce operator fatigue and boosts operational efficiency.
Maintenance points are centrally located, making routine upkeep simple, quick, and cost-effective.
01
Powerful Lifting Capacity Rated lifting capacity of 50 tons; designed with a high lifting moment to meet the demands of medium-to-large scale hoisting operations.
02
Extensive Operating Range Features a multi-section main boom design with a length of approximately 40–45 meters, covering a significantly larger operating radius.
03
Powerful and Highly Maneuverable Equipped with a high-power engine and a top speed of approximately 80 km/h, ensuring high efficiency during site-to-site transfers.
04
Stable and Reliable Features an optimized outrigger structure that enhances operational stability by approximately 15–20%, ensuring a higher level of safety.
Description | Unit | Parameter value | |
Overall length | mm | 13930 | |
Overall width | mm | 2780 | |
Overall Height | mm | 3630 | |
Axle base | 1st ,2nd axle | mm | 1470 |
2nd ,3rd axle | 4300 | ||
3rd ,4th axle | 1350 | ||
Wheel Base | mm | 2304+2075 | |
Front overhang/rear overhang | mm | 2389/2064or 2376/2064 | |
Front extension/rear extension | mm | 2131/226 or 2144/226 | |
Total vehicle mass in travel configuration | kg | 42200 | |
Axle load | Front axle | kg | 16200 |
Rear axle | 26000 | ||
Engine Model | WD615.338 | ||
Engine rated power | kw/(r/min) | 276/2200 | |
Engine rated torque | N.m/(r/min) | 1500/1300-1600 | |
Max. travel speed | km/h | 85 | |
Min. steady travel speed | km/h | 2~3 | |
Min. turning diameter | m | 24 | |
Min. ground clearance | mm | 327 | |
Max. grade ability | % | 42 | |
Approach angle | ° | 19 | |
Departure angle | ° | 15 | |
Braking distance (at 30 km/h, full load ) | m | ≤10 | |
Oil consumption per 100km | L | 40 | |
Exterior noise level during acceleration traveling | dB (A) | ≤88 | |
Noise level at seated position | dB (A) | ≤90 | |
With its robust lifting capacity, extensive operating range, and stable, reliable structural design, the QY50K5D delivers a highly efficient and safe performance across a wide spectrum of medium-to-large-scale hoisting projects. Furthermore, its exceptional maneuverability and intelligent control system effectively boost construction efficiency while simultaneously reducing operating costs. By virtue of its comprehensive performance capabilities and economic advantages, the QY50K5D stands as a trusted choice among 50-ton truck cranes for applications in building construction, municipal engineering, and equipment installation.
