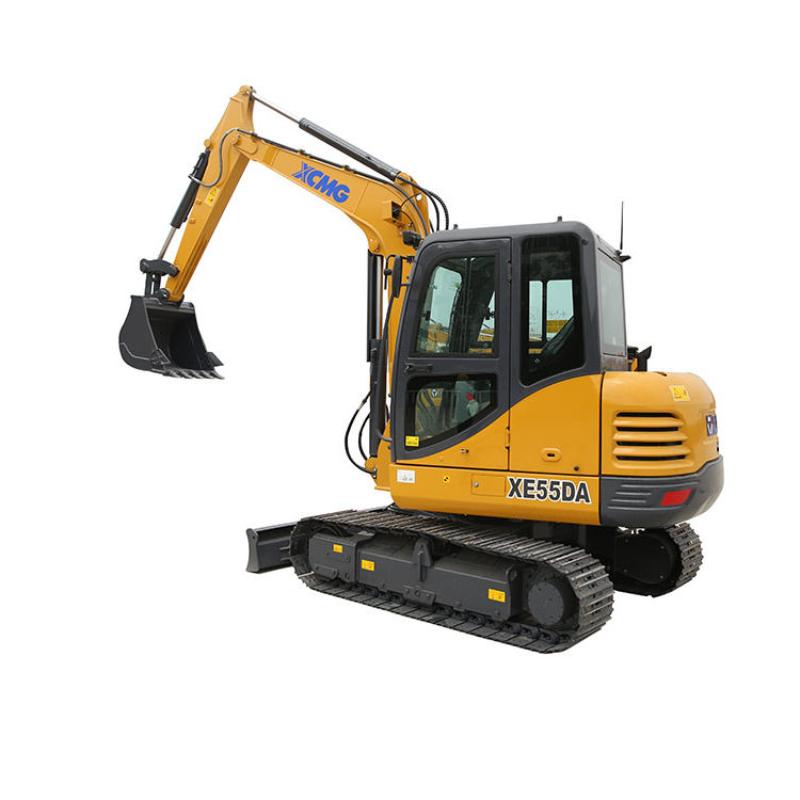

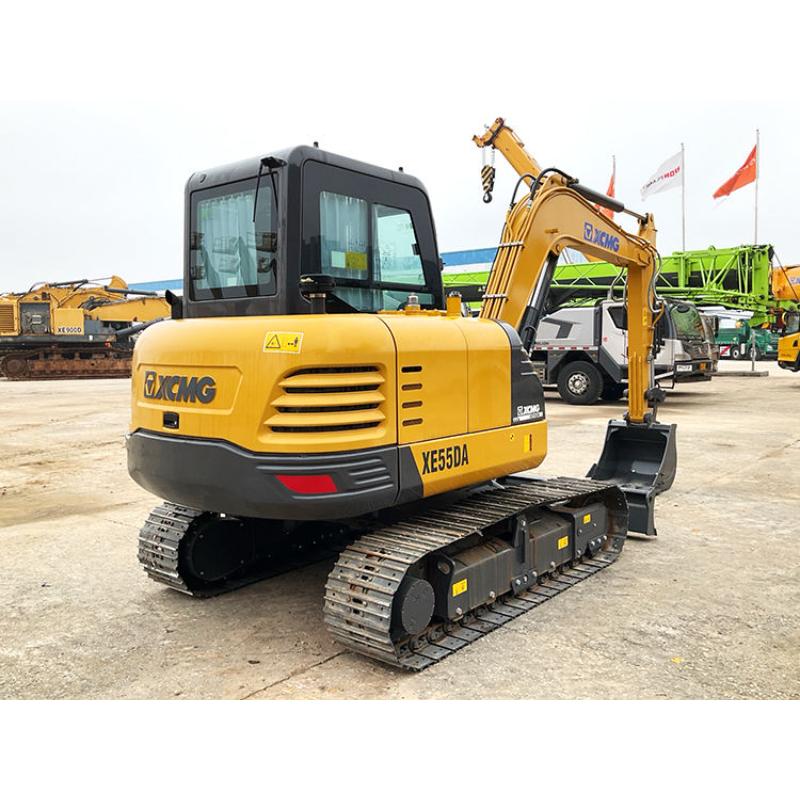

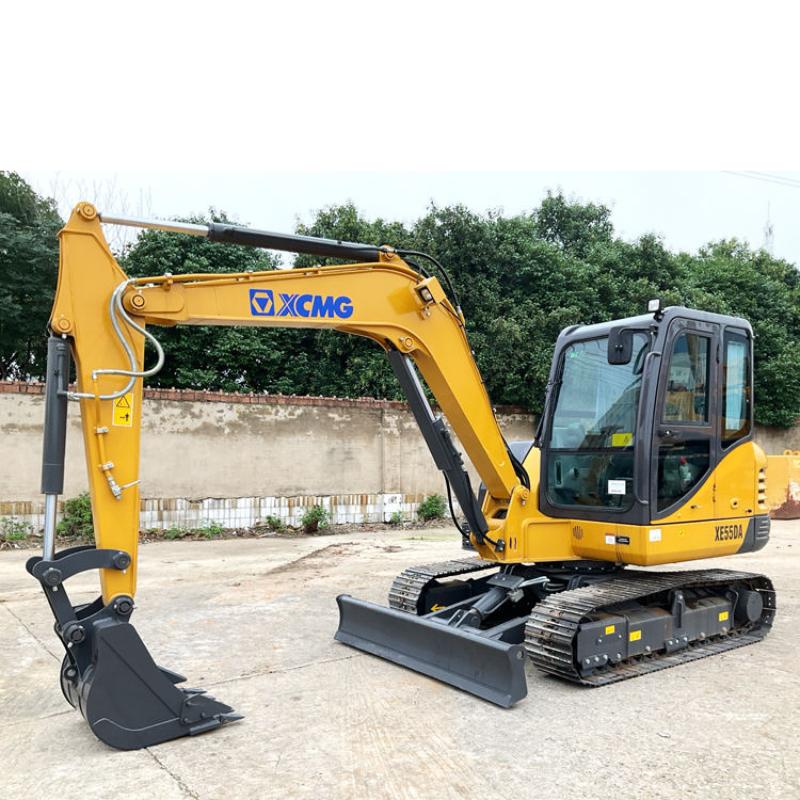

The XE55DA is a high-performance compact tracked excavator designed for urban construction, landscaping, municipal engineering, and small-scale earthmoving. The machine utilizes an advanced hydraulic system and efficient power matching technology, ensuring powerful digging capabilities while achieving lower fuel consumption and higher operating efficiency. With its stable and reliable structural design, flexible and compact body, and comfortable ergonomic operating environment, the XE55DA can easily handle various complex working conditions, providing users with an efficient, energy-saving, and reliable construction experience.
+
-
1.High-Efficiency and Energy-Saving Power System
Equipped with a high-performance engine, providing stable and reliable power output.
Optimized matching between the engine and hydraulic system improves fuel efficiency.
Effectively reduces fuel consumption and operating costs while ensuring construction efficiency.
2. Excellent Hydraulic Performance
Adopts an advanced hydraulic control system for rapid response.
Smooth and coordinated compound movements enhance excavation and loading efficiency.
Enables precise control, suitable for refined construction needs.
3. Compact, Flexible, and Highly Adaptable
Compact structure facilitates easy relocation and transportation.
Easily accesses narrow construction sites and complex construction areas.
Suitable for various working conditions including urban roads, landscaping, municipal works, and rural construction.
4. Stable and Reliable Structural Design
Robust and durable chassis ensures high overall machine stability.
Reinforced working device design enhances durability and service life.
Suitable for continuous high-intensity construction environments.
5. Comfortable Driving Experience
Wide field of vision in the cab provides a comfortable operating environment.
Ergonomically designed layout reduces operator fatigue.
Equipped with a shock-absorbing seat and a high-efficiency air conditioning system, improving comfort during long-term operation.
6. Convenient Maintenance and Upkeep
Centralized maintenance points for easier inspection.
Large-opening hood design improves maintenance efficiency.
Reduces maintenance difficulty and downtime.
7. Versatile Attachment Capabilities
Optional attachments include hydraulic breakers, log grapples, and hydraulic clamps.
Meets various construction needs such as excavation, breaking, clamping, and leveling.
Achieves multi-purpose functionality, increasing equipment utilization.
01
Powerful Engine, Efficient Construction Equipped with a high-performance engine, rated power is approximately 36.2 kW, and bucket digging force reaches 48.3 kN, meeting the needs of various earthmoving conditions.
02
Deeper Digging Range Maximum digging depth is approximately 3520 mm, and maximum digging radius is approximately 6110 mm, easily handling municipal and foundation engineering construction.
03
Stable Hydraulic System, Smoother Operation The main hydraulic system has a maximum flow rate of approximately 150 L/min, providing rapid response to complex actions and improving continuous operation efficiency.
04
Compact Body, More Flexible Construction With a total operating weight of approximately 5.7 tons and an overall width of approximately 1920 mm, the machine is suitable for construction in confined spaces and urban conditions.
| Sales model | Unit | XE55DA | |
| Operating weight | Kg | 5750 | |
| Bucket capacity | m³ | 0.21 | |
Engine | Model | / | V2607-DI-E3B |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo-charging | / | × | |
| No. of cylinders | / | 4 | |
| Output power | kw/rpm | 35/2200 | |
| Maximum torque/speed | N.m/rpm | 171.50/1300 | |
| Displacement | L | 2.615 | |
Main performance | Travel speed | km/h | 4.2/2.2 |
| Swing speed | r/min | 10 | |
| Gradeability | ° | 35 | |
| Ground pressure | kPa | 31 | |
| Bucket digging force | kN | 48.3 | |
| Arm digging force | kN | 32.5 | |
| Maximum traction | kN | 50.5 | |
Hydraulic system | Rated flow of main pump | L/min | 149.1 |
| Main safety valve pressure | MPa | 24.5 | |
| Travel system pressure | MPa | 24.5 | |
| Rotary system pressure | MPa | 24 | |
| Pilot system pressure | MPa | 3.5 | |
Oil Capacity | Fuel tank capacity | L | 110 |
| Hydraulic tank capacity | L | 77 | |
| Engine oil capacity | L | 10 | |
Appearance size | Overall length | mm | 5860 |
| Overall width | mm | 1920 | |
| Overall height | mm | 2585 | |
| Width of platform | mm | 1780 | |
| Track length | mm | 2540 | |
| Overall width of chassis | mm | 1920 | |
| Track width | mm | 400 | |
| Length to center of rollers | mm | 1990 | |
| Track gauge | mm | 1500 | |
| Counterweight clearance | mm | 700 | |
| Min. ground clearance | mm | 385 | |
| Min. tail swing radius | mm | 1670 | |
| Track height | mm | 606 | |
Working scope | Max. digging height | mm | 5630 |
| Max. dumping height | mm | 3945 | |
| Max. digging depth | mm | 3830 | |
| Maximum depth cut for 2240mm(8 ft) level bottom | mm | 2680 | |
| Max. vertical wall digging depth | mm | / | |
| Max. digging radius | mm | 6130 | |
| Min. swing radius | mm | 2460 | |
Standard configuration | Length of boom | mm | 3000 |
| Length of arm | mm | 1600 | |
| Bucket capacity | m³ | 0.21 | |
Optional configuration | Length of boom | m³ | / |
| Length of arm | m³ | / | |
| Bucket capacity | m³ | 0.09 Narrow bucket 0.2 Strengthened bucket | |
The XE55DA tracked excavator, with its powerful and stable power system, efficient and precise hydraulic performance, and compact and flexible design, can easily handle various working conditions, including urban construction, municipal engineering, landscaping, and small-scale earthmoving. The machine combines high efficiency, low fuel consumption, and a comfortable operating experience, while also supporting various attachments to further enhance its applicability and construction value. As a 5-ton excavator that balances performance, reliability, and economy, the XE55DA is an ideal choice for improving project efficiency and reducing operating costs.
