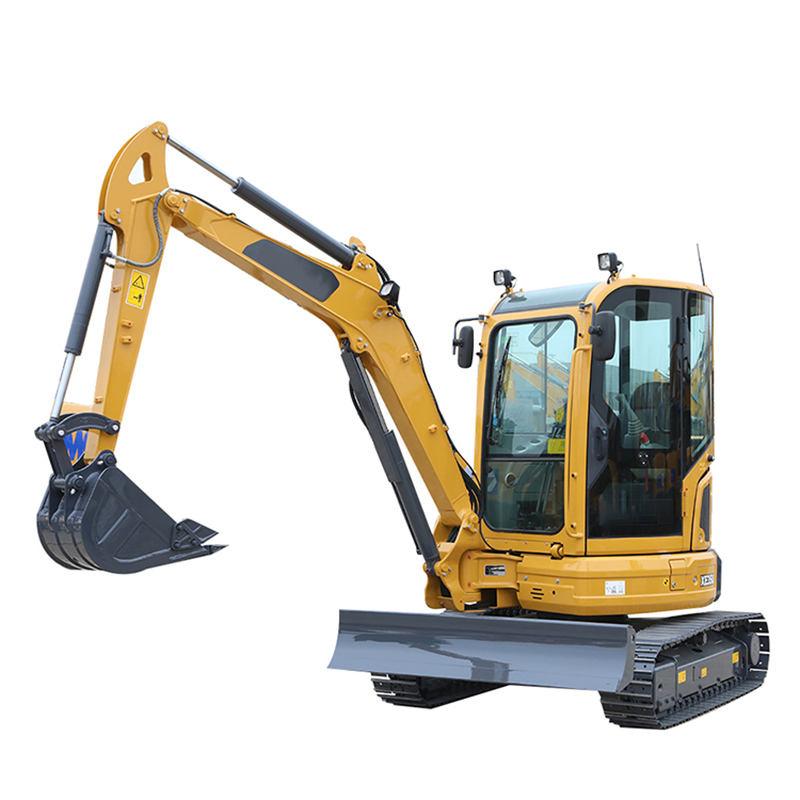

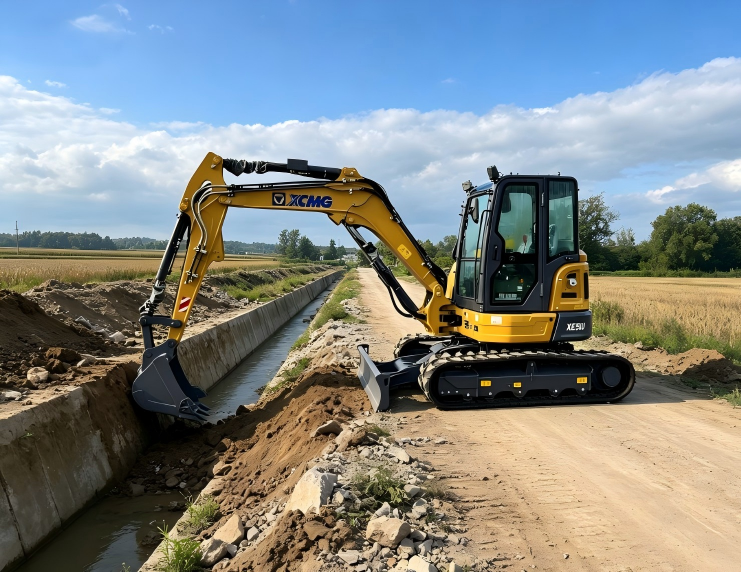

The XE55U is a compact, high-performance tracked excavator. It is equpped with a stable and reliable power system, precise and efficient hydraulic control, and a comfortable ergonomic driving environment, the XE55U can meet the needs of various complex working conditions, bringing users higher construction efficiency and lower operating costs. If you want to buy a small excavator with
+
-
Small-scale Construction: Foundation construction, demolition, etc
Municipal Engineering: Road maintenance, pipeline construction, and other urban infrastructure development.
Landscape: Park and residential area landscaping.
Pipeline and Utility Construction: Drainage pipes, cable trench excavation, etc.
Road Construction and Maintenance: Roadbed excavation, pavement repair, etc.
Agricultural and Rural Engineering: Land reclamation, irrigation ditches, farmland drainage, etc.

01
It's zero tail swing design allows for greater flexibility in confined spaces, easily adapting to narrow working conditions such as urban roads and underground projects
02
Powerful power output for higher construction efficiency Equipped with a high-performance engine, the rated power is approximately 35 kW, and the bucket digging force reaches 48.3 kN.
03
Stable and efficient hydraulic system Maximum flow rate of approximately 150 L/min, faster response to complex actions, and improved continuous operation efficiency.
04
Deeper digging capacity for various working conditions: The maximum digging depth is approximately 3520 mm, and the maximum digging radius is approximately 6120 mm, meeting the needs of municipal and earthwork engineering projects.
Sales model | XE55U | |
Operating weight | 5700 | |
Bucket capacity | 0.16 | |
Engine | Model | V2403-CR-E5B |
Direct injection | √ | |
Four strokes | √ | |
Water cooling | √ | |
Turbo-charging | / | |
No. of cylinders | 4 | |
Rated power | 31.2/2200 | |
Maximum torque/speed | 159.8 / 1500 | |
Displacement | 2.434 | |
Main performance | Travel speed | 4.6/2.8 |
Swing speed | 9.5 | |
Gradeability | ≤35 | |
Ground pressure | 32 | |
Bucket digging force | 44.5 | |
Arm digging force | 24.3 | |
Maximum tractive force | 52.8 | |
Hydraulic system | Rated flow of main pump | 158.4 |
Main safety valve pressure | 30 | |
Travel system pressure | 30 | |
Swing system pressure | 24 | |
Pilot system pressure | 3.5 | |
Oil Capacity | Fuel tank capacity | 68 |
Hydraulic tank capacity | 46 | |
Engine oil capacity | 9.5 | |
Appearance size | Overall length | 5340 |
Overall width | 1960 | |
Overall height | 2555 | |
Width of platform | 1830 | |
Track length | 2490 | |
Overall width of chassis | 1960 | |
Track width | 400 | |
Wheel base of crawler | 1990 | |
Track gauge | 1560 | |
Counterweight clearance | 637 | |
Min. ground clearance | 315 | |
Min. tail swing radius | 2430 | |
Track height | 550 | |
Working scope | Max. digging height | 5650 |
Max. dumping height | 4010 | |
Max. digging depth | 3640 | |
Maximum depth cut for 2240mm(8 ft) level bottom | 3200 | |
Max. vertical wall digging depth | 2690 | |
Max. digging radius | 6110 | |
Min. swing radius | 1040 | |
Standard | Length of boom | 2850 |
Length of arm | 1570 | |
Bucket capacity | 0.16 | |
Optional | Length of boom | / |
Length of arm | / | |
Bucket capacity | / | |
Q1: What are your payment terms?
A: T/T, L/C
Q2: What are your delivery terms?
A: EXW, FCA, FOB ,CIF ,DAP
Q3: Are spare parts available in Africa?
A:Yes, widely available in Nigeria, Ghana, Kenya.
Q4: What is the warranty period?
A: The specific warranty period varies depending on the purchase contract,normally 6
months.
Q5: How long is the production time?
A: Production time mainly depends on inventory, machine configuration, order quantity etc. A new machinery normally need about 20-45 working days.
