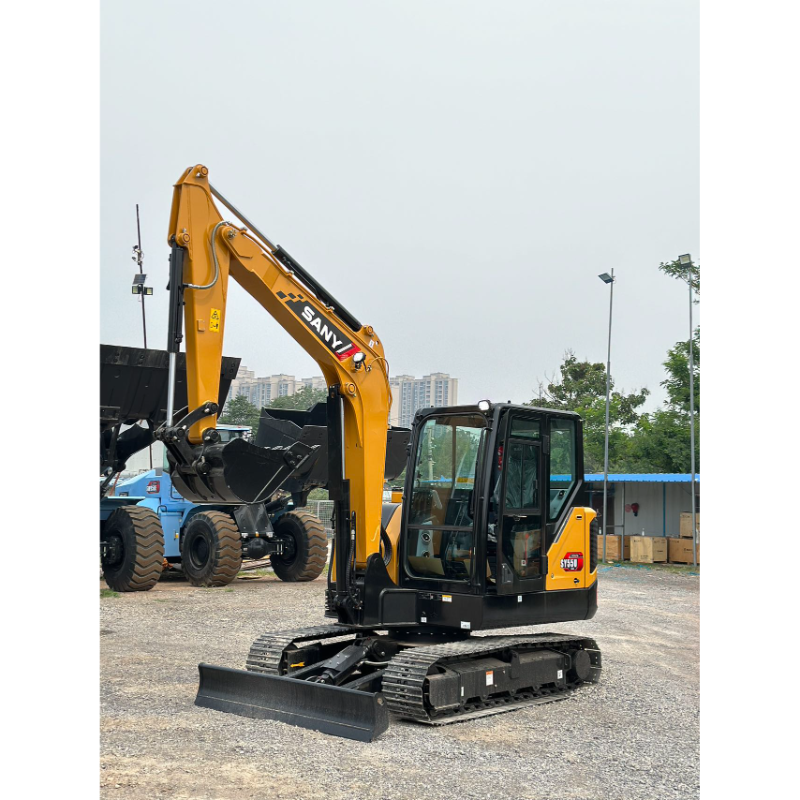

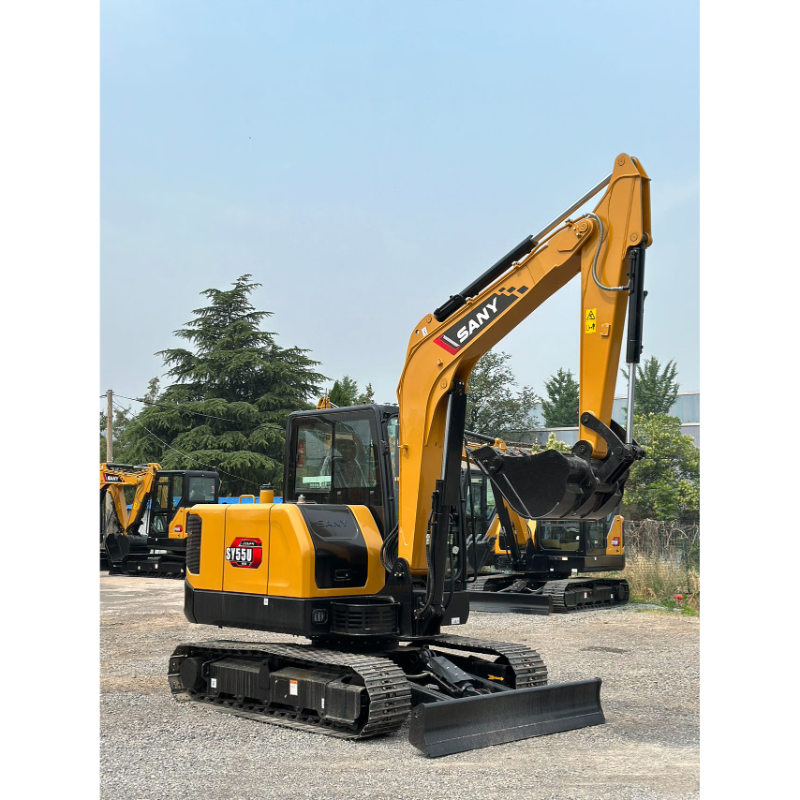

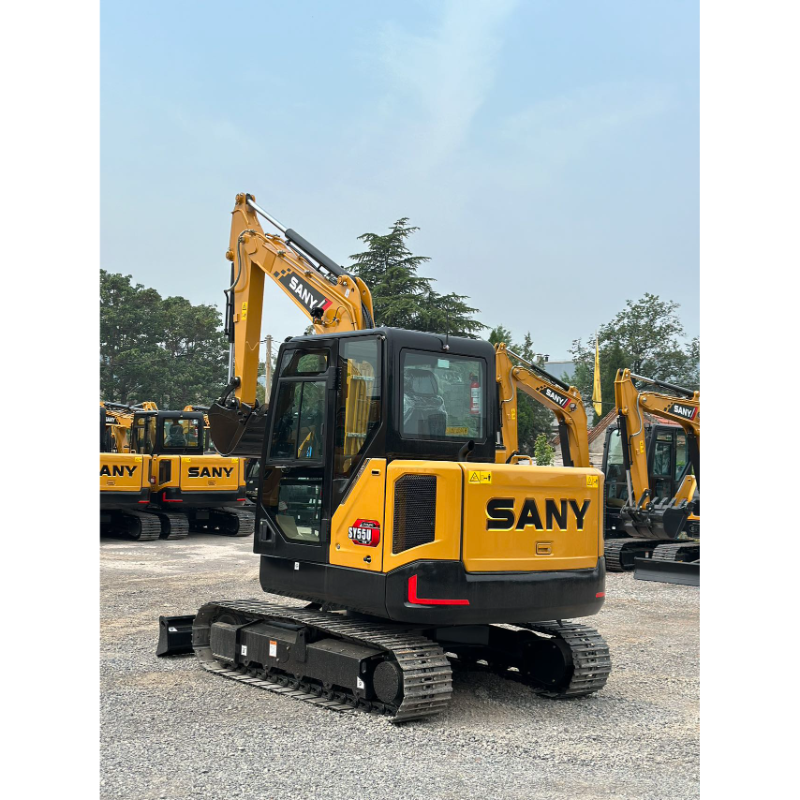

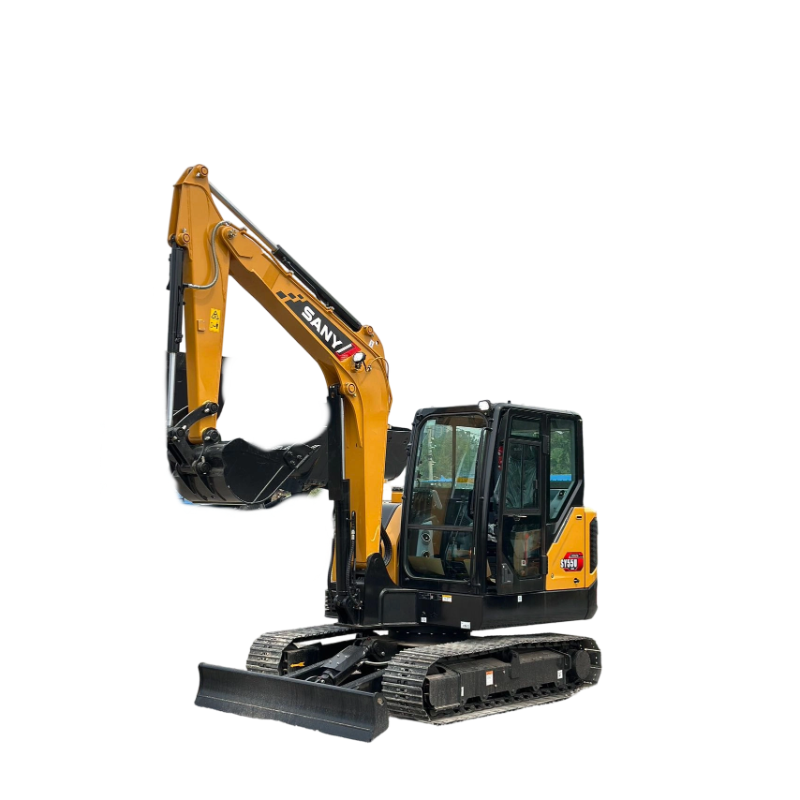

The SY55U Ultimate Edition is a 5.8-ton compact excavator from SANY, a proven leader in the 5-6 ton segment with over 10,000 units sold. Built on the legacy of the SY55C, this model is engineered for high cost-effectiveness and exceptional fuel efficiency, delivering a smooth operational experience across市政, landscaping, farming, and general small earthmoving projects.
+
-
Features & Advantages
Superior Efficiency: Powered by a fuel-efficient Kubota V2607 engine that delivers robust performance while keeping operating costs low. This is complemented by a highly responsive hydraulic system that ensures swift cycle times and maximum productivity on every job site.
Compact & Agile Design: With a rear-end swing radius of just 1635 mm and a compact transport dimension of 5915×2025×2560 mm, the SY55U navigates congested urban environments and confined job sites with ease. Its retractable track design (2025 mm width) allows for easy transport on standard trailers.
Unmatched Durability: Designed for the toughest conditions, the machine features a robust undercarriage with 5 bottom rollers per side and 400 mm track shoes, providing excellent stability and a low ground pressure of just 33 kPa to protect delicate surfaces.
Superior Comfort & Control: The spacious, ROPS-certified cab offers excellent all-around visibility and is designed with ergonomic controls to reduce operator fatigue, ensuring peak performance during long working hours.
01

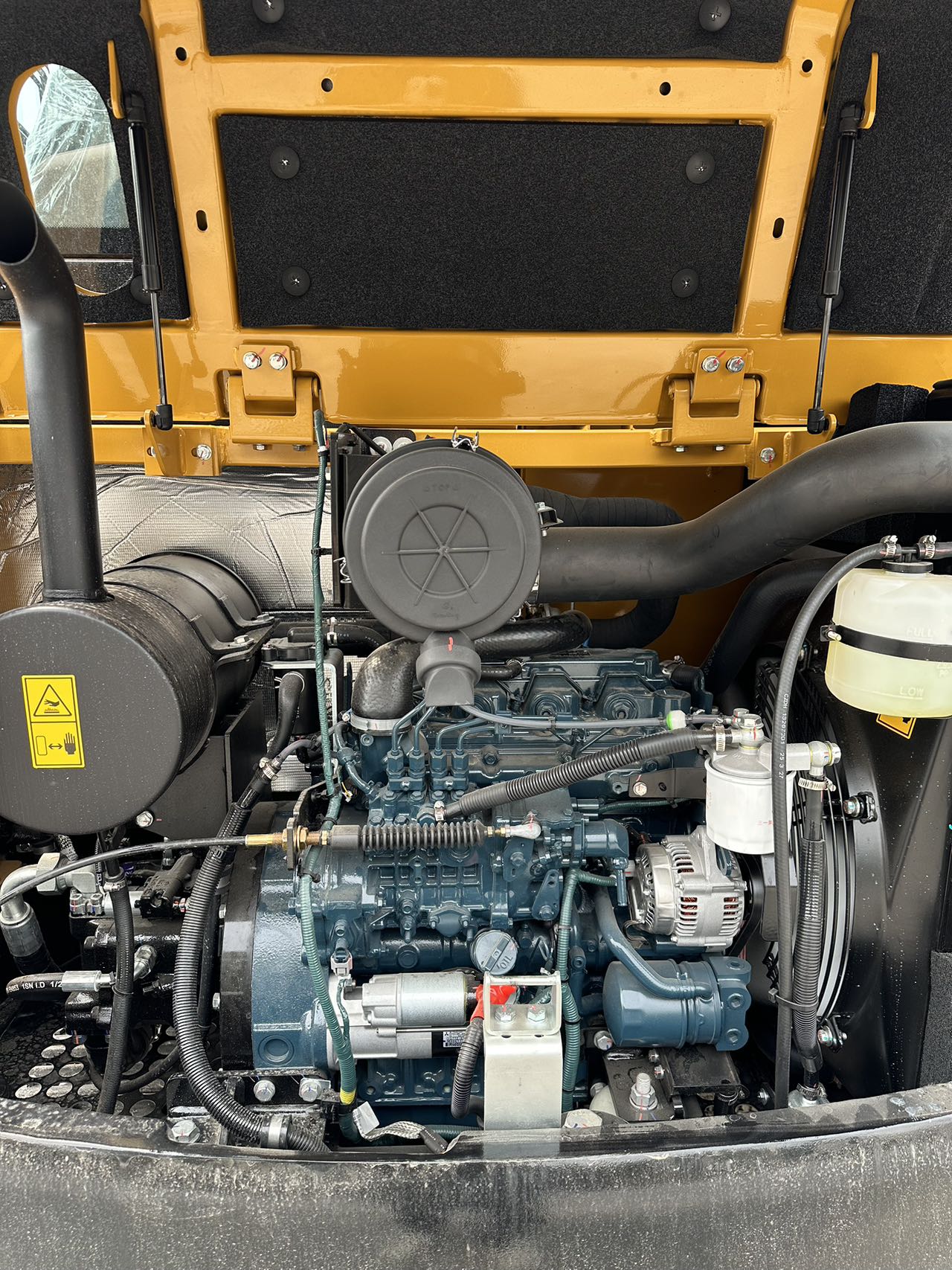

Powerful & Efficient Engine: Equipped with a Kubota V2607 engine, delivering 36 kW of net power at 2,000 rpm, providing high torque of 206.9 N·m for heavy digging operations while maintaining excellent fuel economy.
02
Excellent Digging Capability: Offers a maximum digging depth of 3,830 mm and a maximum reach of 6,070 mm with a bucket capacity of 0.25 m³, enabling the machine to handle substantial earthmoving tasks despite its compact footprint.
03
High Performance Output: With a bucket digging force of 36 kN and an arm digging force of 29 kN, this excavator masters a wide range of applications from foundation work and trenching to material handling with ease.
04
Extended Working Hours: A large-capacity 130 L fuel tank paired with an 85 L hydraulic tank ensures prolonged operation between refuels, significantly minimizing downtime and boosting overall job site productivity.
Parameter | Specification |
Operating Weight | |
Bucket Capacity | |
Engine Model | |
Rated Power | |
Max. Torque | |
Fuel Tank Capacity | |
Hydraulic Tank Capacity | |
Travel Speed (High/Low) | |
Swing Speed | |
Max. Digging Depth | |
Max. Digging Reach | |
Max. Dumping Height | |
Bucket Digging Force | |
Arm Digging Force | |
Tail Swing Radius | |
Overall Width | |
Track Shoe Width |
The SY55U Ultimate Edition represents the perfect balance of power, precision, and practicality in the compact excavator class. Whether you are navigating tight urban job sites, tackling landscaping projects, or handling demanding earthmoving tasks on farms and construction sites, this machine delivers reliable performance day in and day out. With its fuel-efficient Kubota engine, impressive digging capabilities, extended service intervals, and operator-centric design, the SY55U offers exceptional value for contractors seeking a versatile and durable workhorse. Backed by SANY's global reputation for quality and after-sales support, the SY55U Ultimate Edition is not just an equipment purchase—it's a long-term investment in productivity and profitability. Choose SY55U, and get the job done right, every time.
