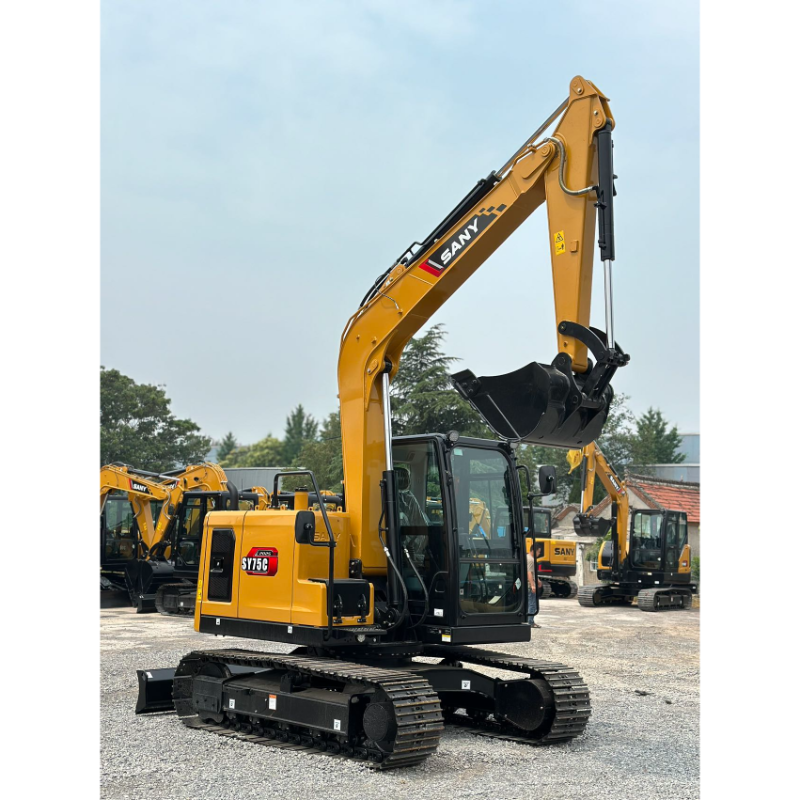

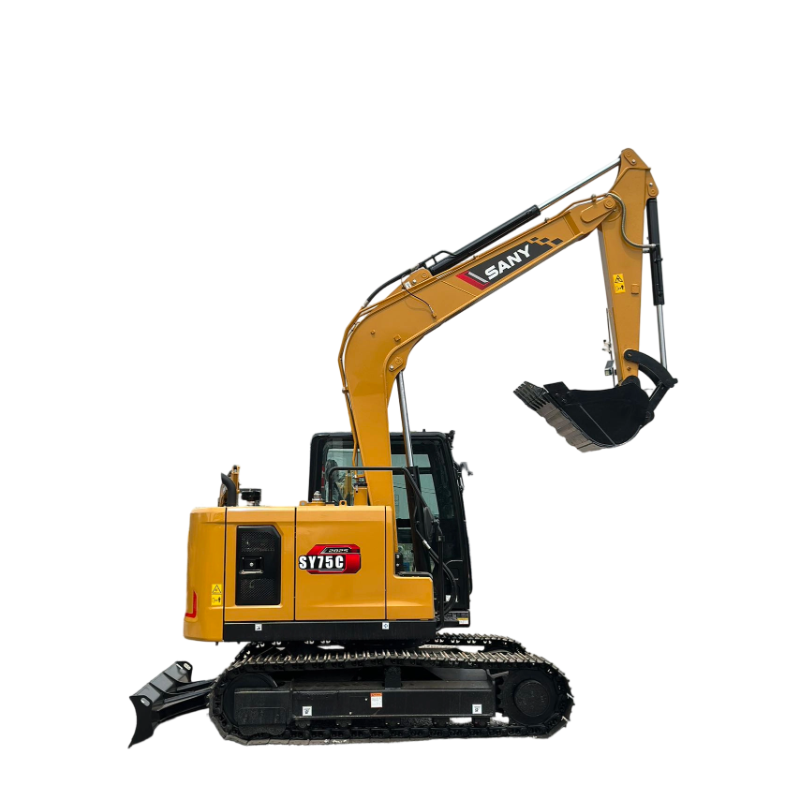

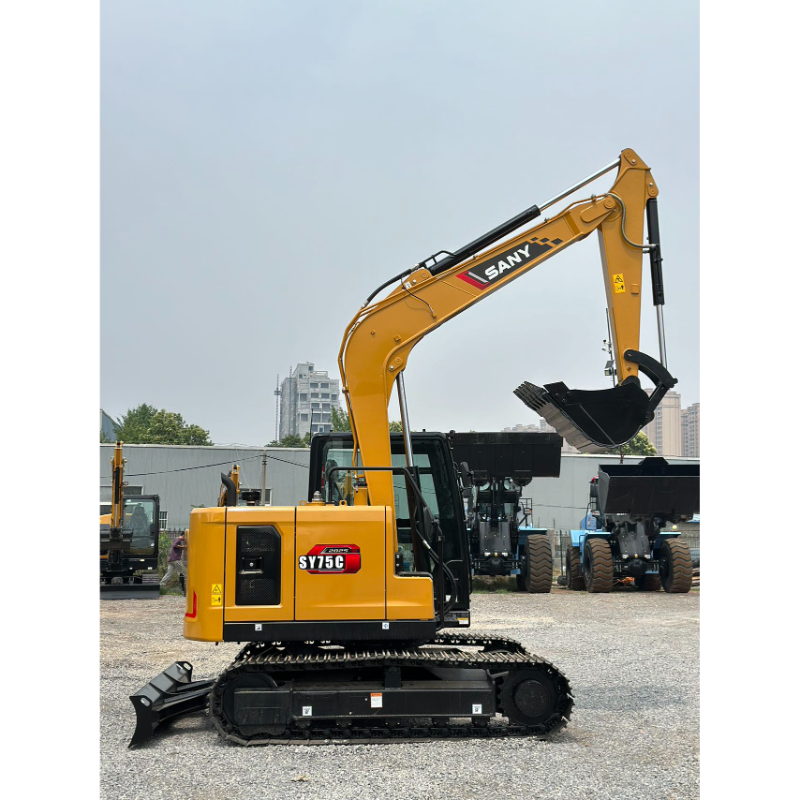

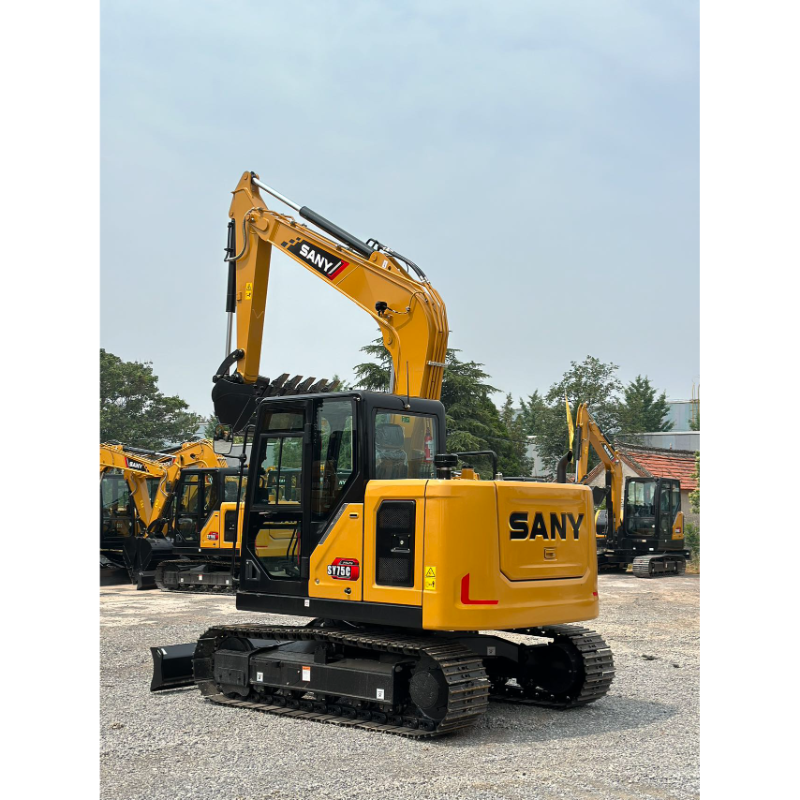

The SANY SY75C is a 7.35-ton class compact hydraulic excavator powered by an Isuzu 4JG3X engine with a rated power of 55 kW. Combining robust power, stable performance, and agile handling, it is suitable for a wide range of applications, including earthworks, road construction, municipal projects, landscaping, and agricultural operations.

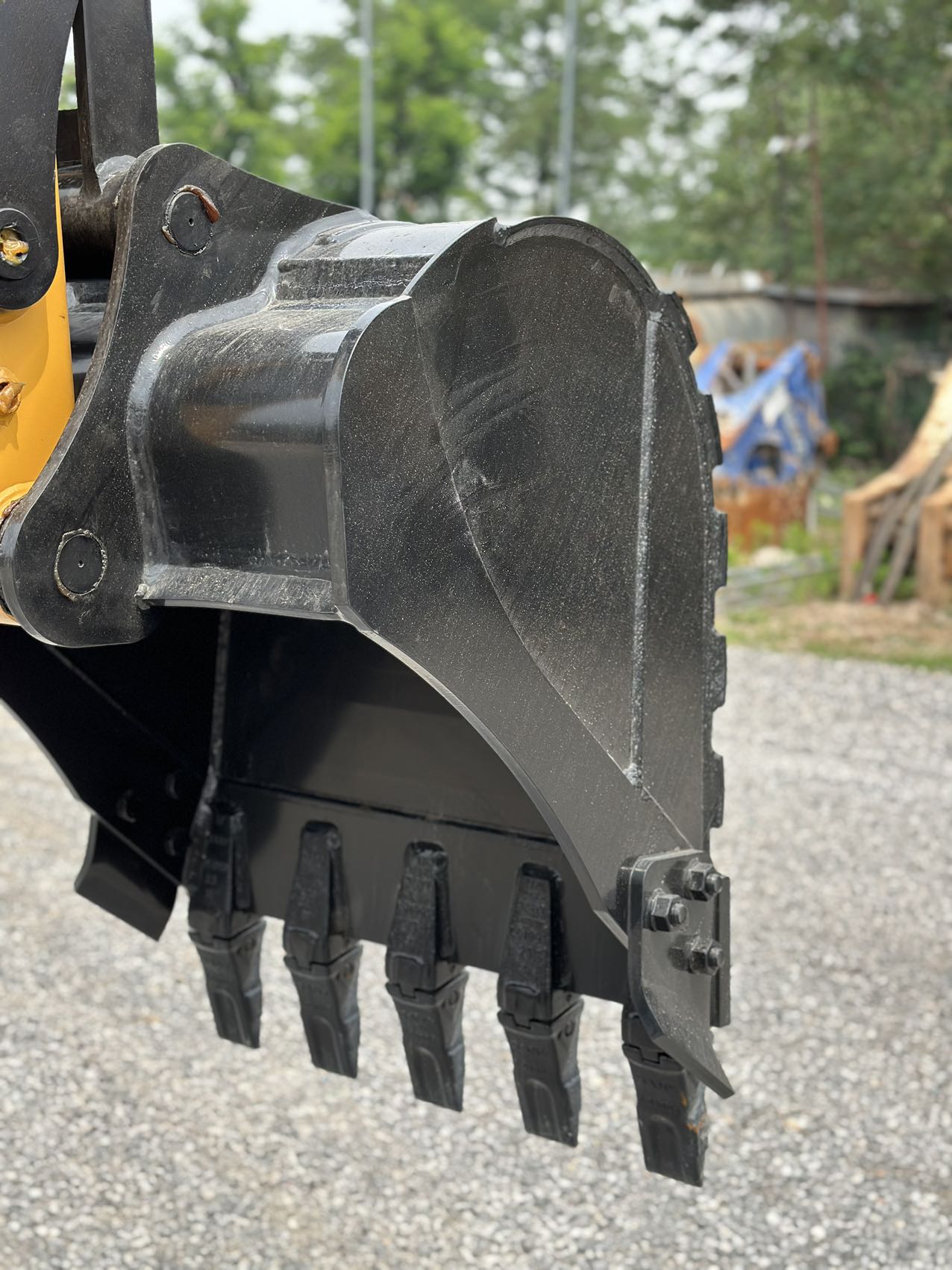

Equipped with a 0.3 m³ bucket, the SY75C offers a maximum digging radius of 6,240 mm and a maximum digging depth of 4,065 mm, efficiently meeting the excavation requirements of small-to-medium-sized projects. Its compact design and 1,800 mm tail swing radius ensure excellent maneuverability, even in confined working spaces.
+
-
1. Powerful Performance, Reliable Durability
Equipped with an Isuzu 4JG3X engine, delivering a rated power of 55 kW and a maximum torque of 280 N·m for stable power output.
2. Efficient Excavation, Wide Operating Range
Features a 0.3 m³ bucket, a maximum digging radius of 6,240 mm, and a maximum digging depth of 4,065 mm, meeting diverse construction requirements.
3. Compact and Agile, Ideal for Confined Spaces
With an operating weight of 7,350 kg and a rear swing radius of just 1,800 mm, the machine offers excellent maneuverability, making it suitable for space-constrained environments such as municipal projects and landscaping.
4. Superior Stability and Adaptability to Complex Terrain

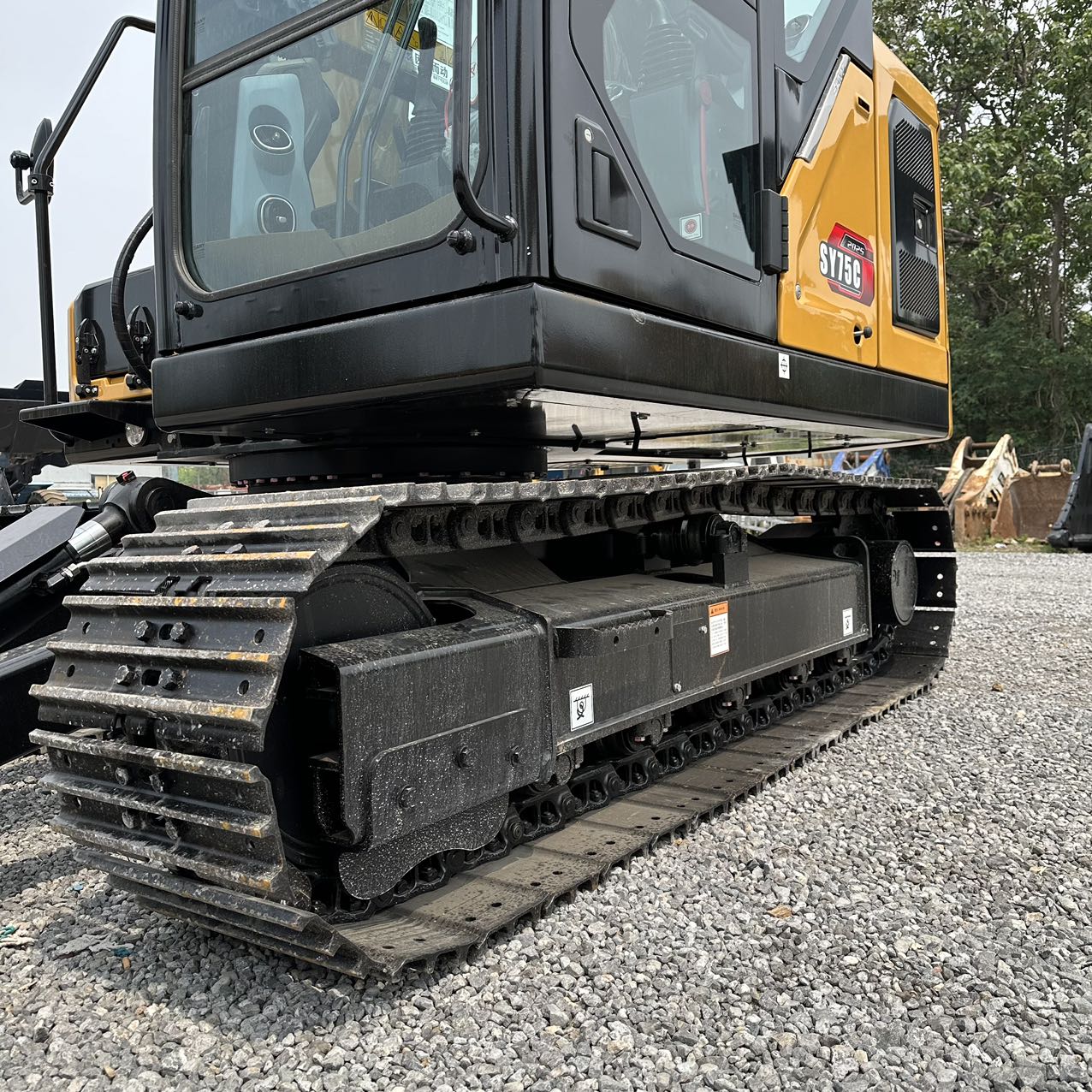

Boasts a ground pressure of only 33 kPa and a maximum gradeability of 70%; combined with a crawler undercarriage, it adapts well to various terrains and working conditions.
5. Responsive Control, Enhanced Operational Efficiency
Offers a swing speed of 11.5 rpm and travel speeds of 4.4 km/h (high) and 2.4 km/h (low), enabling rapid site relocation and efficient, continuous operation.
01
Powerful, Stable, and Reliable Equipped with an Isuzu 4JG3X engine, delivering a rated power of 55 kW and a maximum torque of 280 N·m.
02
Efficient Excavation with Wide Operating Range Features a 0.3 m³ bucket, a maximum digging radius of 6,240 mm, and a maximum digging depth of 4,065 mm.
03
Compact and Agile for Confined Workspaces With an operating weight of 7,350 kg and a tail swing radius of just 1,800 mm, it is ideal for space-constrained environments such as municipal projects and landscaping.
04
Stable Control and Efficient Operation Boasts a ground pressure of only 33 kPa, a swing speed of 11.5 rpm, and a maximum gradeability of 70%, ensuring adaptability to complex terrain.
| Category | Item | Specification |
|---|---|---|
| General Parameters | Model | SY75C |
| Model Class | 75 | |
| Tonnage Class | Mini Excavator (4–13 tons) | |
| Travel Type | Crawler | |
| Bucket Type | Backhoe | |
| Application | General Purpose | |
| Power Type | Diesel | |
| Engine (Diesel) | Engine Model | 4JG3X |
| Engine Type | 4-Cylinder, 4-Stroke, Direct Injection, Overhead Camshaft, Water-Cooled, Turbocharged | |
| Rated Power | 55 kW | |
| Rated Speed | 2000 rpm | |
| Maximum Torque | 280 N·m | |
| Displacement | 2.999 L | |
| Number of Cylinders | 4 | |
| Engine Brand | Isuzu | |
| Emission Standard | China Stage IV | |
| Performance | Operating Weight | 7350 kg |
| Bucket Capacity | 0.3 m³ | |
| Travel Speed (High/Low) | 4.4 / 2.4 km/h | |
| Swing Speed | 11.5 rpm | |
| Ground Pressure | 33 kPa | |
| Gradeability | 70% | |
| Bucket Digging Force | 56 kN | |
| Arm Digging Force | 38 kN | |
| Overall Dimensions | Overall Dimensions (L × W × H, Transport) | 6120 × 2220 × 2675 mm |
| Track Ground Length | 2195 mm | |
| Track Length | 2820 mm | |
| Track Shoe Width | 450 mm | |
| Track Gauge | 1750 mm | |
| Minimum Ground Clearance | 380 mm | |
| Rear Swing Radius | 1800 mm | |
| Working Range | Maximum Digging Reach | 6240 mm |
| Maximum Digging Depth | 4065 mm | |
| Maximum Digging Height | 7015 mm | |
| Maximum Dumping Height | 5110 mm | |
| Maximum Vertical Digging Depth | 3335 mm | |
| Dozer Blade Width × Height | 405 mm (Height) | |
| Dozer Blade Lift / Digging Depth | 480 / 417 mm | |
| Fluid Capacities | Fuel Tank Capacity | 150 L |
| Hydraulic Oil Tank Capacity | 120 L | |
| Engine Oil Change Capacity | 9.5 L | |
| Coolant Capacity | 6.5 L |
The SANY SY75C is a highly efficient, versatile, and reliable 7.35-ton class crawler excavator. Powered by an Isuzu 4JG3X engine delivering a rated power of 55 kW and equipped with a 0.3 m³ bucket, it combines robust power with outstanding digging performance. Its compact design, 1,800 mm tail swing radius, and excellent maneuverability make it particularly well-suited for a wide range of applications—including earthworks, road construction, municipal projects, landscaping, and agricultural work—positioning it as an ideal choice for overseas customers undertaking small- to medium-sized projects.
