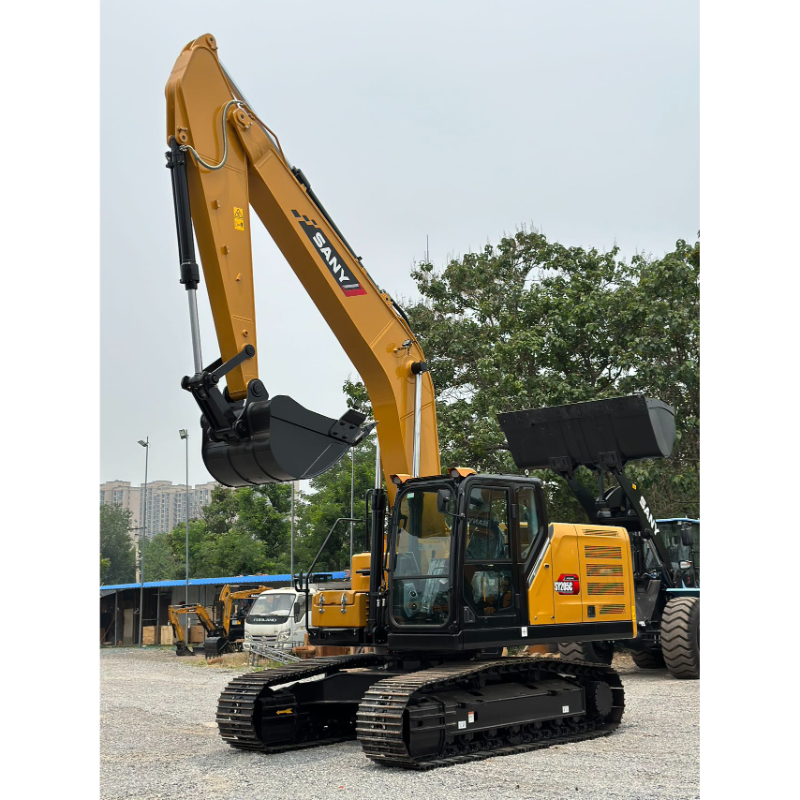

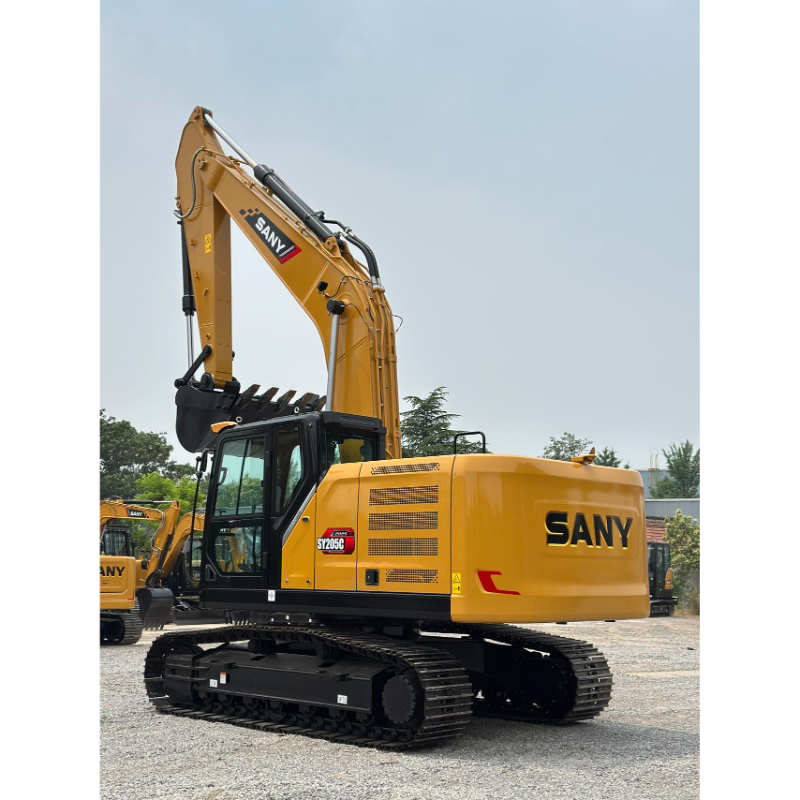

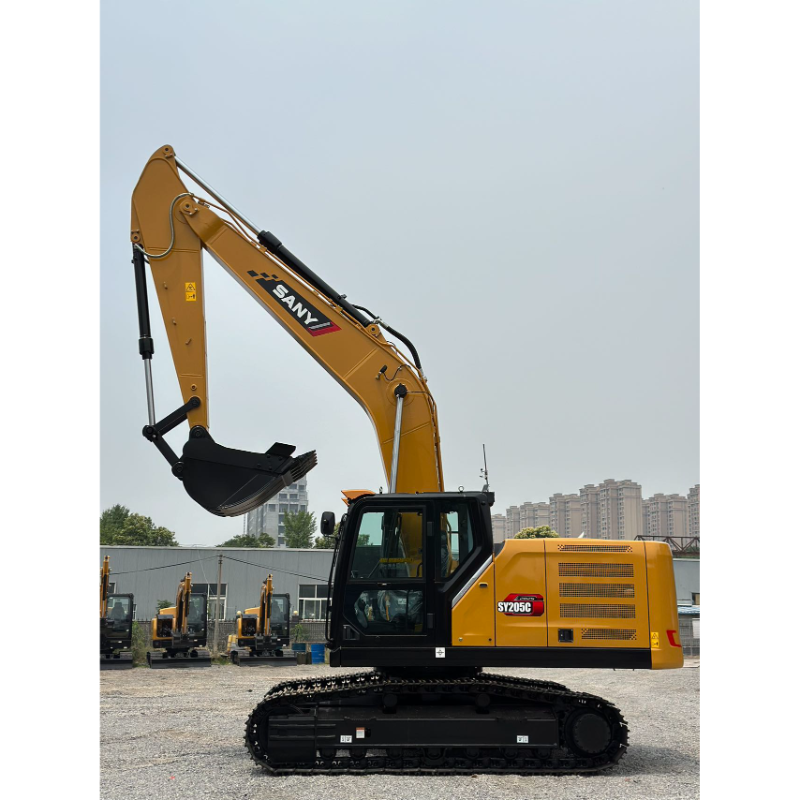

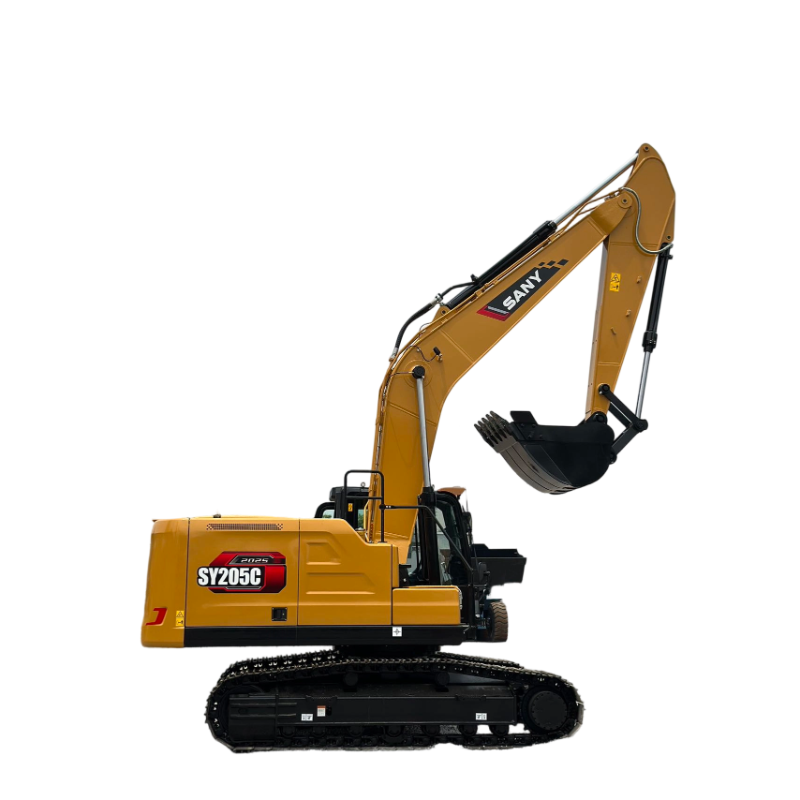

The SANY SY205C is a 20-ton class medium-sized hydraulic excavator designed for a wide range of applications, including earthmoving, road construction, mining operations, municipal projects, and infrastructure development. It features a highly efficient powertrain and hydraulic system, balancing robust power, operational efficiency, and fuel economy.
With an operating weight of approximately 21,500 kg and a rated power of 118 kW, the SY205C is equipped with a 0.9–1.1 m³ bucket and offers a maximum digging reach of 10,280 mm, effectively meeting the operational range and digging capacity requirements of diverse construction projects.
+
-
Features and Advantages of the SANY SY205C Crawler Excavator
1. Powerful Performance, High Operational Efficiency

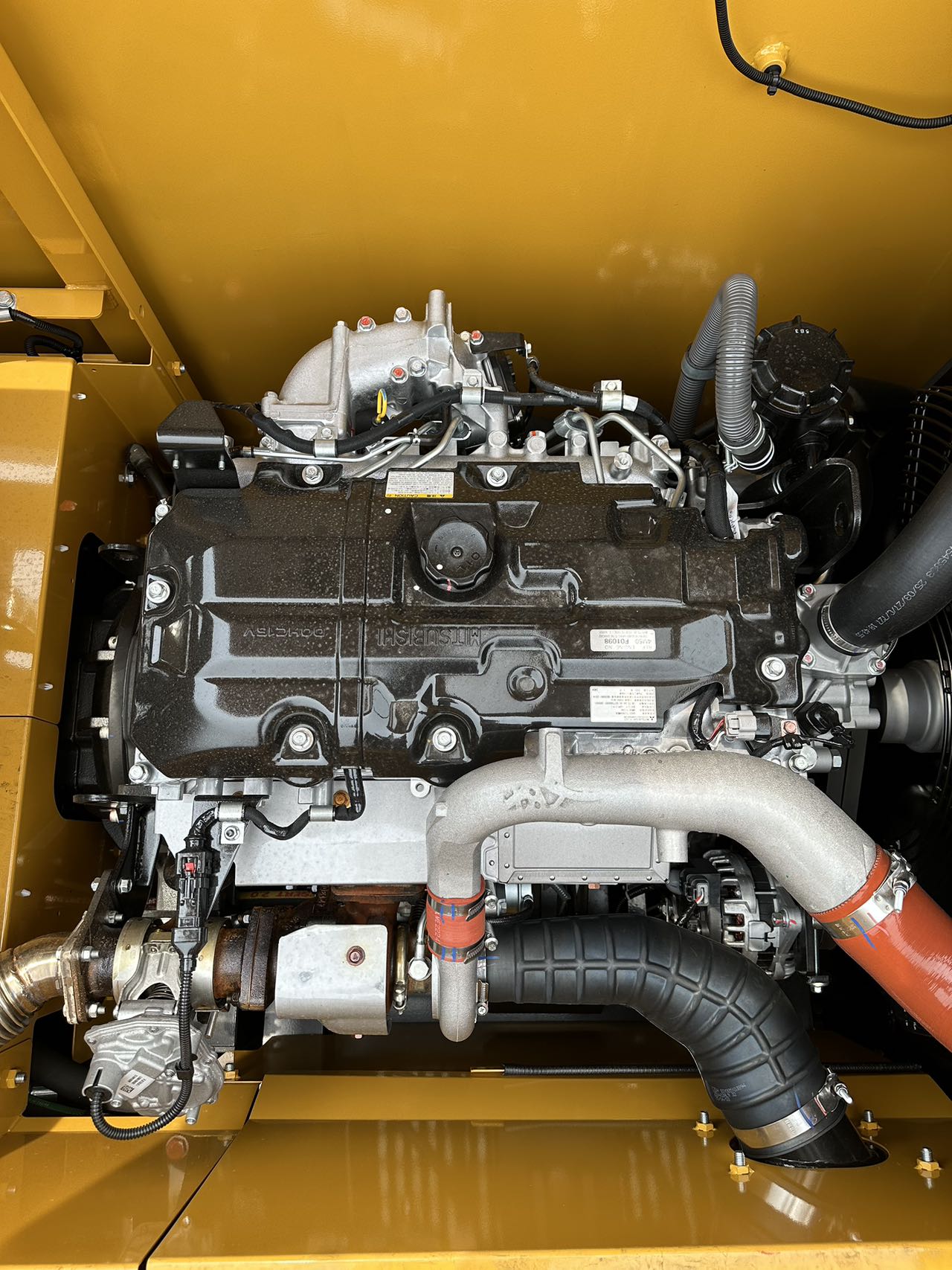

Delivers a rated power of 118 kW at 2000 rpm and a maximum bucket digging force of 138 kN, meeting the demands of heavy-duty operations such as earthmoving and mining.
2. Optimized Bucket Capacity, High Productivity
Equipped with a 0.9–1.1 m³ bucket and offering a maximum digging reach of 10,280 mm, it is suitable for a wide range of job site applications.
3. Stable and Reliable, Adaptable to Challenging Conditions
With an operating weight of 21,500 kg, a ground pressure of just 47.3 kPa, and a maximum gradeability of 35°, the machine offers excellent stability and off-road mobility.
4. Agile Control, Enhanced Operational Efficiency
Features a swing speed of 11 rpm and travel speeds of 5.4 km/h (high) and 3.3 km/h (low), ensuring flexible maneuverability and suitability for continuous, high-efficiency operations.
5. Extensive Working Range, Meeting Diverse Project Needs
With a maximum digging height of 9,600 mm and a maximum digging depth of 6,600 mm, it meets the requirements for road construction, municipal projects, foundation work, and earthmoving operations.
01
Powerful Performance, Efficient Excavation Rated power of 118 kW and maximum bucket digging force of 138 kN meet the demands of heavy-duty operations.
02
Extensive Operating Range, Enhanced Efficiency Bucket capacity of 0.9–1.1 m³ and a maximum digging reach of 10,280 mm accommodate a wide range of job site conditions.
03
Stable and Reliable, Adaptable to Complex Conditions Operating weight of 21,500 kg, ground pressure of only 47.3 kPa, and a maximum gradeability of 35°.
04
Agile Control, Rapid Operation Swing speed of 11 rpm and maximum travel speed of 5.4 km/h boost efficiency during site transfers and continuous operations.
| Item | Specification |
|---|---|
| Overall Length (Transport) | 9680 mm |
| Overall Width | 2980 mm |
| Overall Height (Transport) | 3440 mm |
| Upper Structure Width | 2875 mm |
| Overall Height (Cab Top) | 3075 mm |
| Standard Track Shoe Width | 600 mm |
| Track Gauge | 2380 mm |
| Minimum Ground Clearance | 440 mm |
| Tail Swing Radius | 2900 mm |
| Track Ground Length | 3360 mm |
| Track Length | 4160 mm |
| Operating Weight | 21500 kg |
| Bucket Capacity | 0.9–1.1 (1.0) m³ |
| Rated Power | 118 kW / 2000 rpm |
| Travel Speed (High/Low) | 5.4 / 3.3 km/h |
| Swing Speed | 11 rpm |
| Gradeability | 70% / 35° |
| Ground Pressure | 47.3 kPa |
| Bucket Digging Force | 138 kN |
| Arm Digging Force | 109 kN |
| Maximum Digging Height | 9600 mm |
| Maximum Dumping Height | 6730 mm |
| Maximum Digging Depth | 6600 mm |
| Maximum Digging Reach | 10280 mm |
| Maximum Height at Minimum Swing Radius | 7680 mm |
| Minimum Swing Radius | 3730 mm |
The SANY SY205C is a reliable 20-ton class medium-sized crawler excavator. With an operating weight of 21,500 kg, a rated power of 118 kW, and a bucket capacity of 0.9–1.1 m³, it combines powerful digging force, stable performance, and agile handling. Thanks to its excellent working range and reliable operational performance, the SY205C is suitable for a wide range of applications—including earthworks, road construction, municipal projects, mining, and infrastructure development—making it a cost-effective choice for overseas engineering projects.
