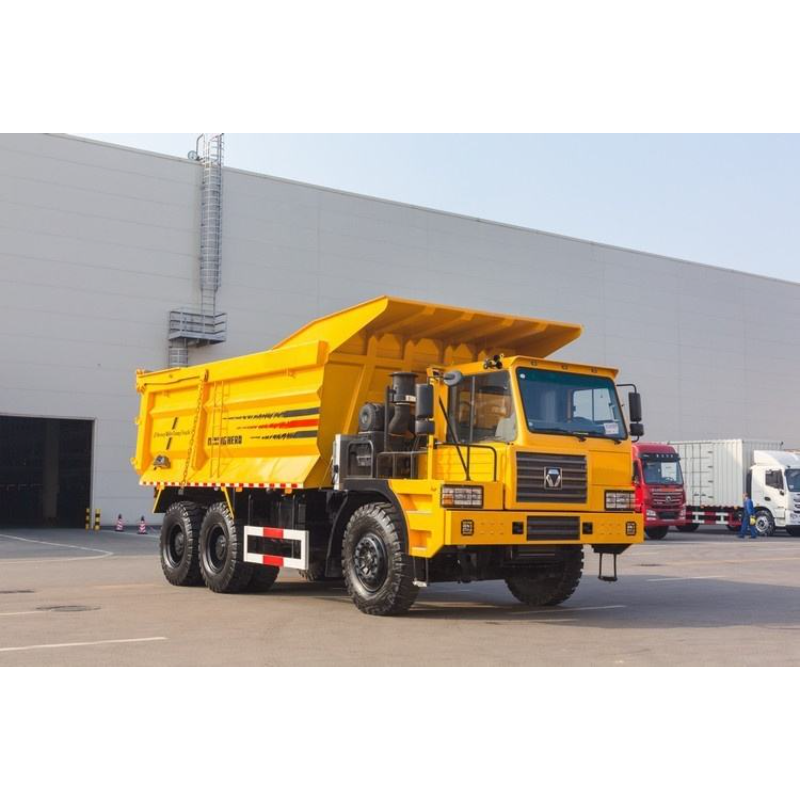

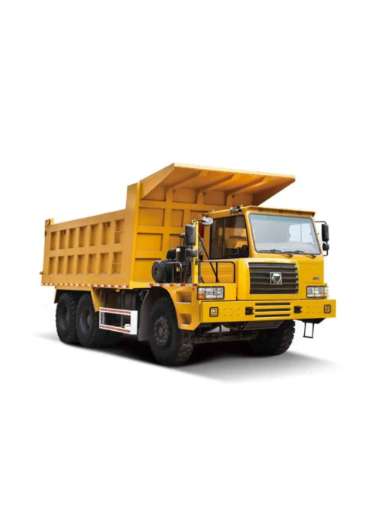

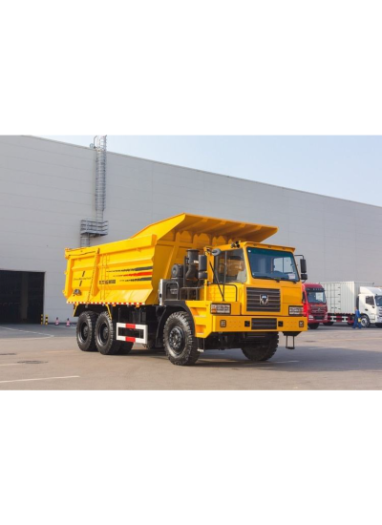

The NXG5650D3T dump truck is a heavy-duty engineering dump truck designed for mines, gravel yards, and large-scale earthmoving projects. The vehicle's core design principles are high load capacity, high reliability, and strong adaptability, enabling stable and efficient operation in complex working conditions and high-intensity environments.
This model features a reinforced frame and a high-strength cargo box structure, providing excellent impact resistance and durability to meet the demands of frequent heavy-load and continuous operation. The powertrain is matched with a high-torque diesel engine and a reliable transmission assembly, offering strong low-speed traction and excellent climbing performance, making it particularly suitable for mining areas and unpaved roads.
+
-
NXG5650D3T Dump Truck
1. Reinforced heavy-duty frame design ensures long-term heavy-load operation without deformation, specifically built for high-intensity transportation in mining and earthmoving applications.
2. High torque power output provides quick acceleration and strong climbing ability, ensuring efficient operation even under complex working conditions.
3. High-efficiency hydraulic lifting system enables fast unloading and stable operation, significantly shortening the work cycle.
4. Engineering-grade safety features, including reliable braking and stable handling, guarantee continuous high-intensity operation.
Advantages
01
High-power engine: Low-speed, high torque, strong starting and climbing capabilities under heavy load.
02
Reinforced frame and cargo box: High-strength design, suitable for mining and harsh working conditions.
03
Reliable transmission system: Gearbox + heavy-duty axle, high uptime and low failure rate.
04
Efficient hydraulic lifting system: Fast lifting and clean unloading, resulting in high operating efficiency.
NXG5650D3T Product Parameters
| Item | Unit | Parameter |
|---|---|---|
| Drive Type | – | 6×4 |
| Kerb Mass | kg | 25,500 |
| GVW (Gross Vehicle Weight) | kg | 65,000 |
| Max. Speed | km/h | 45 |
| Min. Turning Diameter | m | 9.4 |
| Grade Ability | – | ≥42% |
| Fuel Tank Capacity | L | 400 |
| Dimension (L×W×H) | mm | 8,860 × 3,275 × 3,740 |
| Wheelbase | mm | 3,800 + 1,560 |
| Min. Ground Clearance | mm | 380 |
| Approach Angle | – | 30° |
| Departure Angle | – | 48° |
| Cargo Size (L×W×H) | mm | 5,800 × 3,000 × 1,600 |
| Cabin Model | – | 3.0m Left Dislocation Cab |
| Left/Right Driving | – | LHD |
| Air Conditioning | – | Optional |
| Person Allowed in Cabin | – | 1 |
| Engine Model | – | WP12G380E310 |
| Emission Standard | – | EUR III |
| Engine Displacement | L | 11.596 |
| Output Power | kW | 280 |
| Max. Torque Speed | N·m | 1,650 |
| Transmission Model | – | 9JSD180 / 7DS180 |
| PTO (Power Take-Off) | – | QH50 |
| Front Axle Model | – | 13T |
| Rear Axle Model | – | 25T |
| Main Reducer Ratio | – | 11.125 / 13.51 |
| Rim Specification | – | 10.00W-24 |
| Tire Specification | – | 14.00-24 NHS |
The NXG5650D3T is specifically designed for heavy-duty applications and harsh working conditions. It features powerful performance, a robust structure, and fast unloading capabilities, making it a reliable choice for mining and large-scale earthmoving transportation.
