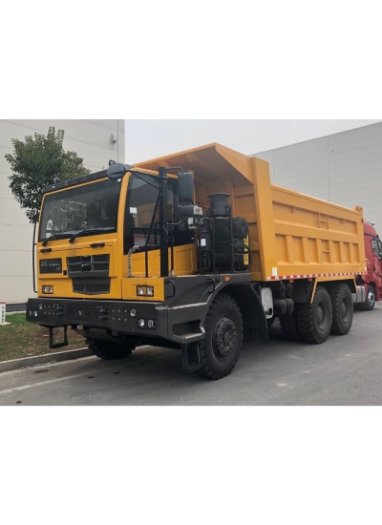

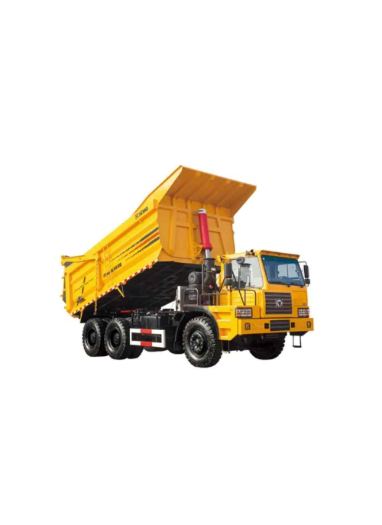

The XGA5652DT is a high-performance specialized transport equipment designed for mining and heavy-duty applications. It boasts excellent load-bearing capacity, a stable overall structure, and a reliable power system. The machine is reinforced for complex working conditions, balancing operational efficiency and stability, effectively meeting the needs of mines, energy companies, and large-scale engineering projects for efficient and safe transportation.
+
-
01
High Payload Capacity Designed for heavy-duty mining and large-scale material hauling, ensuring high transport efficiency.
02
Powerful Engine Provides strong and reliable power output for demanding operating conditions.
03
High Mobility Performance Ensures excellent climbing ability and fast cycle times in complex mine environments.
04
Heavy-Duty Structure & Reliability Reinforced frame, optimized chassis and braking system deliver stable, durable, and safe operation.

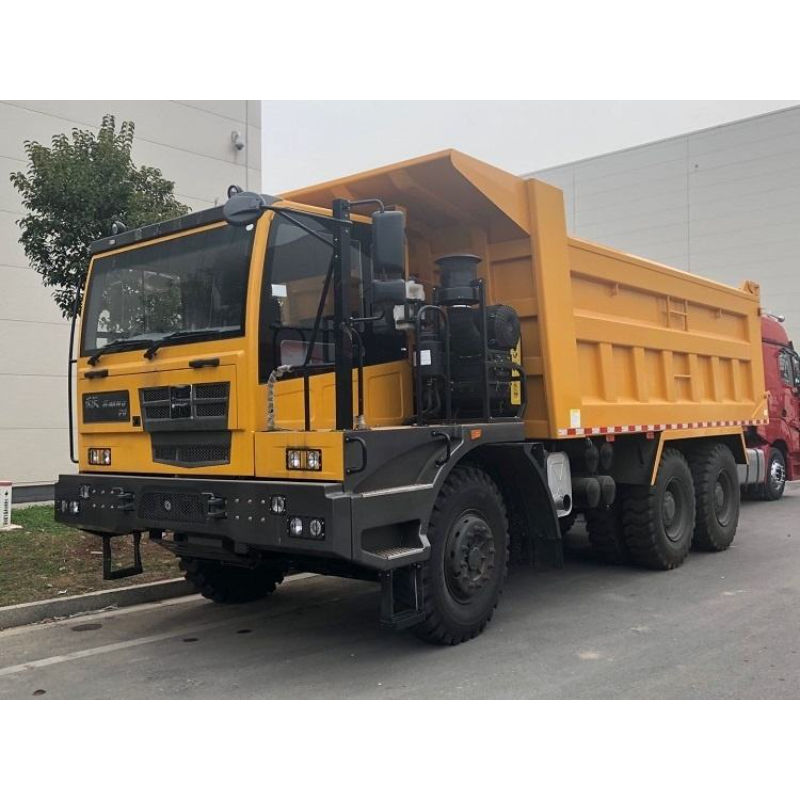

XGA5652DT
Vehicle model | XGA5652DT | ||
Mass parameter | Curb weight | 26500kg | |
GVW | 65000kg | ||
Performance | Max. speed | 40km/h | |
Min. turning diameter | 9.4m | ||
Grade ability | 46% | ||
Fuel tank | 400L | ||
Dimensions | Overall dimensions | Length | 8860mm |
Width | 3275mm | ||
Height | 3740mm | ||
Wheelbase | 3800+1560mm | ||
Wheel track | Front tire | 2505mm | |
Rear tire | 2250mm | ||
Min.Clearance | 380mm | ||
Approach angle | 30° | ||
Departure angle | 48° | ||
Front overhang | 1685mm | ||
Rear overhang | 1815mm | ||
Cargo Size | 5800×3000×1600mm | ||
Cab | Model | K20 HanWo P6 | |
Members Allowed | 1 | ||
Engine | Model | WD12G420E211 | |
Displacement | 11.596L | ||
Output power | 309kW | ||
Max. torque speed | 1750N·m | ||
Clutch | Model | Φ430 Pull type diaphragm spring clutch | |
Operation | Hydraulic manual | ||
Transmission | Model | Allison 4500 ORS | |
PTO | QH70 | ||
Operation | Flexible shaft | ||
Forward ratio | 12.44/8.31/6.09/4.54/3.36/2.47/1.81/1.35/1.00 | ||
Reverse ratio | 12.99 | ||
Driven axle | Model | 25T PENGXIANG | |
Main reducer ratio | 11.125/13.51 | ||
Brake type | Drum | ||
Differential lock | Inter-axle differential lock | ||
Front axle | Model | 13T PENGXIANG | |
Brake type | Drum | ||
Wheel | Rim | 10.00W-24 | |
Tire | 14.00-24NHS | ||
Frame | Model | Box beam | |
HxW-t | 450mm | ||
Frame Width | 1000mm | ||
Suspension | Front | Type | Leaf spring |
Leaf springs | 14 | ||
Rear | Type | Balanced suspension | |
Leaf springs | 13 | ||
Steering | Model | Φ120/Circulating ball type hydraulic power | |
Steering Ration | 23.27 | ||
Max. pressure of pump | 17MPa | ||
Brake System | Rated pressure | 1MPa | |
Service brake system | Dual circuit pneumatic braking | ||
Parking brake system | Spring energy storage air brake | ||
Auxiliary braking system | Engine exhaust brake+Retarder | ||
Electrical system | Voltage | 24V | |
Generator power | 2.2kw | ||
Battery voltage/capacitance | 2×12 V/165Ah | ||
The XGA5652DT is designed for high-intensity mining and heavy-duty transportation conditions, balancing load-bearing capacity, operational stability, and transportation efficiency. The entire vehicle features a reinforced structure and highly reliable configuration, enabling it to maintain continuous and efficient operation in complex and harsh working environments. This helps users reduce operating costs, making it a reliable transportation solution for mines and large-scale engineering projects.
