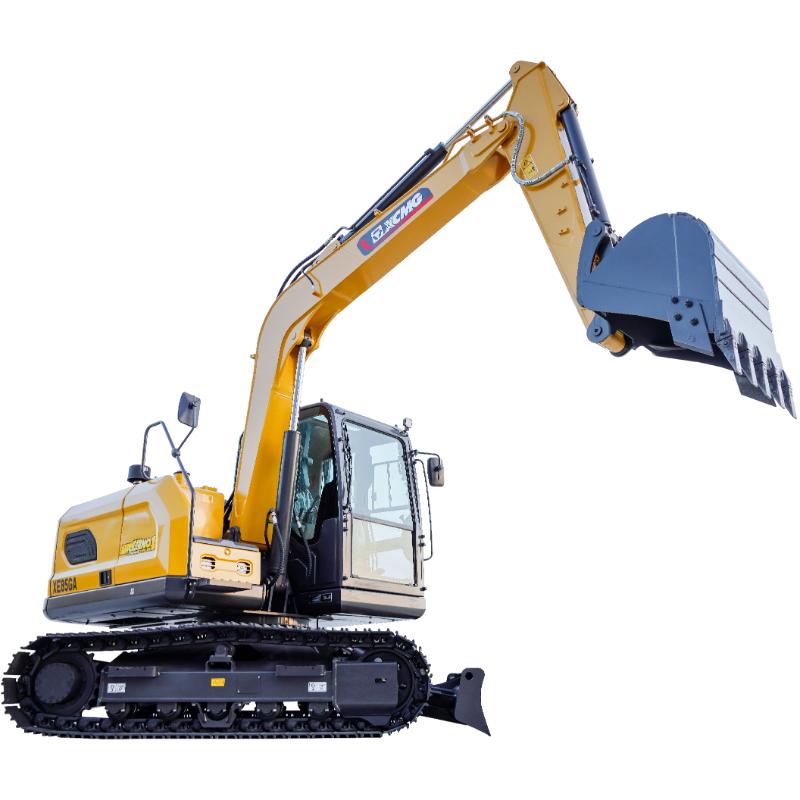

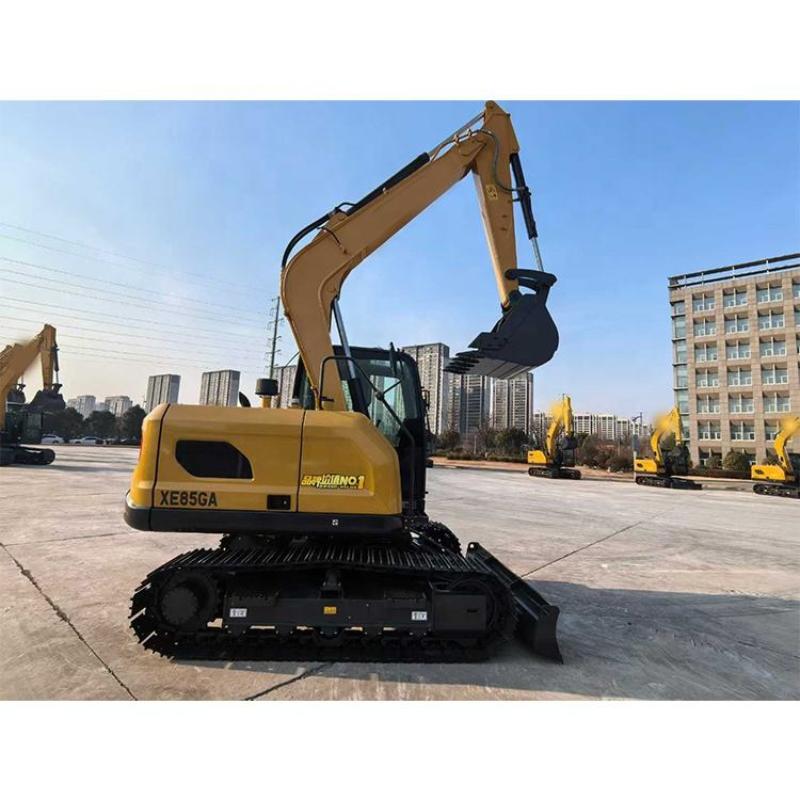

XE85GA 8.5 Ton Small Crawler Excavator Mini Digger

The XE85GA is an 8-ton tracked excavator in XCMG's G series, designed for urban infrastructure construction, road construction, pipeline laying, and small to medium-sized earthwork projects. The machine has undergone optimization and upgrades in its power system, hydraulic matching, and structural design, ensuring strong operational capabilities while also considering fuel economy and handling comfort.

+

-

small crawler excavator XE85GA use of Yanmar naturally aspirated engine widely used in the industry, with the features of small displacement, low fuel consumption, low-speed and large-torque, is perfectly matched the excavator operation conditions.

small crawler excavator XE85GA uses direct injection technology with good oil adaptability. The mechanical speed regulation is upgraded to electronic speed regulation, the speed control is more stable, not only reduce the fuel consumption, but also effectively reduce the "black smoke" from the engine.

[Advantages and Highlights]
1.  The new generation XE85GA bucket capacity is enhanced more 10% than C Series products, the bucket capacity is increased to  0.33m3, improving the working efficiency of earthmoving operation.
2.  The larger fuel tank capacity, with ultra-low fuel consumption level, extends the machine's continuous operation time.
3.  According to the improved and upgraded hydraulic system, the hydraulic tank capacity is re-optimized, which is 11% lower than  the C Series products, significantly reducing the machine maintenance costs.


Sales model
Unit
XE85GA
Operating weight
Kg
7730
Bucket capacity
0.33
Engine
Model
/
4TNV98-ZCSXG
No. of cylinders
/
4
Output power
kw/rpm
46.3/2200
Maximum torque/speed
N.m/rpm
239.1/1650
Displacement
L
3.319
Main performance
Travel speed
km/h
5.0/2.7
Swing speed
r/min
11
Gradeability
°
35
Ground pressure
kPa
34.85
Bucket digging force
kN
57
Arm digging force
kN
38
Maximum traction
kN
68.3
Hydraulic system
Rated flow of main pump
L/min
176
Main safety valve pressure
MPa
28
Travel system pressure
MPa
27.4
Rotary system pressure
MPa
20.6
Pilot system pressure
MPa
3.5
Oil Capacity
Fuel tank capacity
L
137
Hydraulic tank capacity
L
82
Engine oil capacity
L
12
Appearance size
A Overall length
mm
6215
B Overall width
mm
2280
C Overall height
mm
2690
D Width of platform
mm
2260
F Overall width of chassis
mm
2200
G Track width
mm
450
H Length to center of rollers
mm
2195
I Track gauge
mm
1750
J Counterweight clearance
mm
800
K Min. ground clearance
mm
373
Working scope
A Max. digging height
mm
7120
B Max. dumping height
mm
5160
C Max. digging depth
mm
4070
E Max. vertical wall digging depth
mm
3120
F Max. digging radius
mm
6245
G Min. swing radius
mm
1800
Standard configuration
Length of boom
mm
3720
Length of arm
mm
1622
Bucket capacity
0.33
Bucket capacity
0.20 Narrow bucket
