China Brand Excavator 21Ton Crawler Excavator XE210C

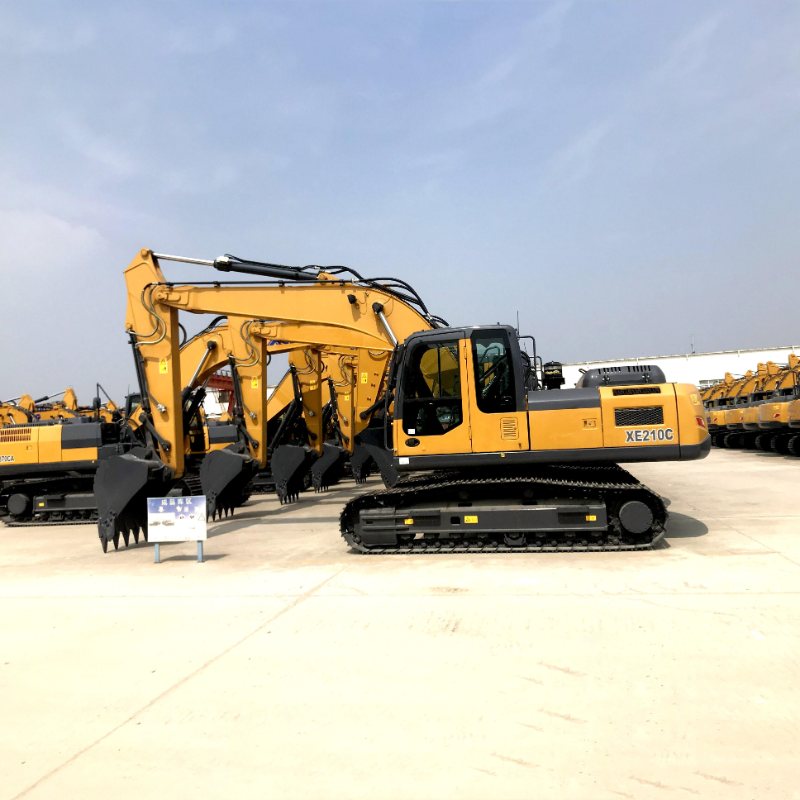

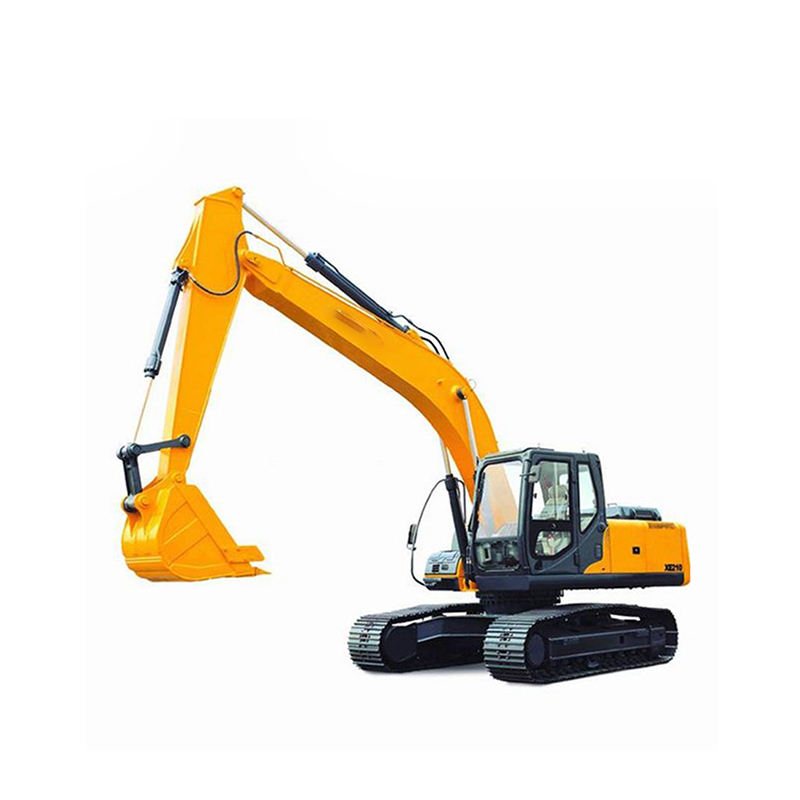

The XE210C tracked excavator is a mature, reliable, and stable classic model, widely used in earthmoving, road construction, and infrastructure development. Its robust structure and mature manufacturing process ensure stable and efficient operation under various complex working conditions.


Equipped with a high-efficiency power system and optimized hydraulic system, this machine boasts excellent digging, loading, and slewing performance, balancing work efficiency with fuel economy. The reinforced chassis and key structural components enhance the machine's stability and durability, making it suitable for extended periods of high-intensity operation.


+

-

  • High Efficiency:

    Equipped with a powerful Cummins engine and an optimized hydraulic system for efficient operation.

  • Fuel Economy:

    Designed with fuel efficiency in mind, ensuring cost-effective performance.

  • Durability:

    Constructed with high-strength steel and reinforced structural components for long-lasting durability.

  • Comfortable Cab:

    Features an enclosed cab with air conditioning, air ride seat,and a rearview camera for enhanced operator comfort and safety.

  • Advanced Controls:

    Includes an integrated control panel and large display screen for easy operation and monitoring.


Additional Features

  • Hydraulic System: High-flow hydraulic system for smooth and efficient operation

  • Versatility: Compatible with a wide range of attachments for various applications.

  • Emission Compliance: Meets EURO IV emission standards, ensuring environmental compliance.

The XE210C is a versatile and powerful excavator suitable for earthmoving,

road construction, and municipal engineering projects.
Its combination of power, efficiency,

and advanced features makes it an excellent choice for demanding construction tasks.


Item
Unit
Parameters
Model
Operating weight
Kg
21000

Bucket capacity
1
Engine
Model
-
Top Brand

No. of cylinders
-
6

Rated power
kw/rpm
128.5 kW

Maximum torque/speed
N.m
800/1500

Displacement
L
6.7
Main performance
Travel speed (H/L)
km/h
5.4/2.9

Swing speed
r/min
11.8

Gradeability
°
≤35

Ground pressure
kPa
45

Bucket digging force
kN
149

Arm digging force
kN
111

Maximum tractive force
kN
184
Hydraulic system
Rated flow of main pump
L/min
2x225

Main safety valve pressure
Mpa
34.3/37

Travel system pressure
Mpa
34.3

Swing system pressure
Mpa
27.5

Pilot system pressure
Mpa
3.9
Oil capacity
Fuel tank capacity
L
420

Hydraulic tank capacity
L
300

Engine oil capacity
L
24
Appearance size
A Overall length
mm
10220

B Overall width
mm
2990

C Overall height
mm
3300

D Width of platform
mm
2830

E Track length
mm
4455

F Overall width of chassis
mm
2990

G Track shoe width
mm
600

H Wheel base of crawler
mm
3647

I Track gauge
mm
2390

J Counterweight clearance
mm
1053

K Minimum ground clearance
mm
485

L Minimum tail swing radius
mm
2985

M Track height
mm
810
Working range
A Maximum digging height
mm
9620

B Maximum dumping height
mm
6780

C Maximum digging depth
mm
6680

D Maximum depth cut for 2240mm(8 ft) level bottom
mm
6500

E Maximum vertical wall digging depth
mm
5715

F Maximum digging radius
mm
9940

G Minimum swing radius
mm
3530
Standard
Length of boom
mm
5680

Length of arm
mm
2910
Optional
Length of arm
mm
2400

Bucket capacity
1.0(Rock bucket)



1.14 (Strengthened bucket)
