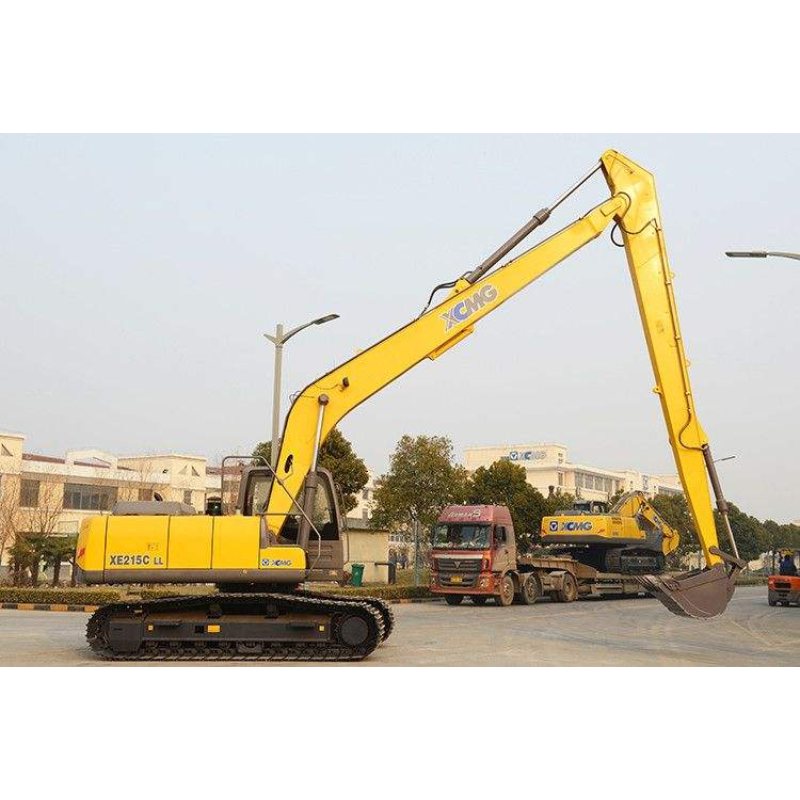

The XE215CLL long-arm tracked excavator is a professional model designed by XCMG specifically for river dredging, port dredging, and long-distance earthmoving operations. Through its extended boom and stick design, the machine boasts a larger working radius and deeper digging depth, enabling it to efficiently complete construction tasks that are difficult for traditional excavators to reach.
While maintaining the stability and reliability of a 20-ton class excavator, the XE215CLL combines a mature power system with efficient hydraulic technology to achieve smooth operation and high-efficiency output during long-distance operations.
+
-

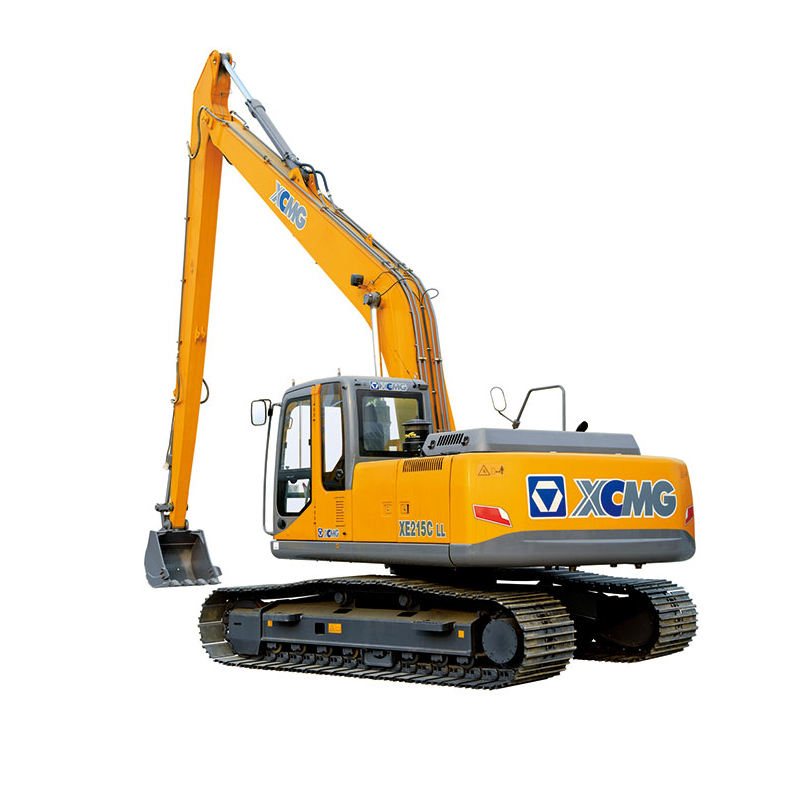

The XE215CLL long reach excavator is a 21 ton crawler excavator specially designed for operations requiring extended working range. Equipped with a durable long boom and stick, it is ideal for river dredging, port construction, reservoir maintenance, and large-scale earthmoving projects. With a reliable hydraulic system, powerful engine, and reinforced structure, the XE215CLL provides high efficiency, stability, and durability for contractors working in water conservancy, mining, and infrastructure construction.
Main Features:
21 Ton Operating Weight – Balanced size for heavy-duty long reach applications.
Extended Boom & Stick – Provides larger working range for dredging and deep excavation.
Durable Crawler Chassis – Ensures stability on soft ground and water-side operations.
Advanced Hydraulic System – Smooth, efficient, and reliable control for all applications.
Reinforced Structure – Heavy-duty boom and frame designed for long service life.
Operator-Friendly Cabin – Spacious cab with AC, ergonomic seat, and wide visibility.
01
Extended Working Range: The extended working device increases the working radius by over 30%, meeting the needs of long-distance construction.
02
Greater Digging Capacity: Significantly increased digging depth, suitable for deep foundation pits and river dredging.
03
Stable and Reliable Platform: Approximately 21 tons in size, with a reinforced chassis and counterweight design, ensuring greater stability during long-distance operations.
04
High-Efficiency Hydraulic Control: Fast response and precise control ensure efficient operation even with a long boom.
Model | Unit | XE215CLL | |
Operating weight | kg | 22350 | |
Standard bucket capacity | m³ | 0.5 (standard) | |
Engine | Engine Model | / | CC-6BG1TRP |
Rated power/speed | kw/rpm | 128.5/2100 | |
Max. torque/speed | N.m | 551/1600 | |
Displacement | L | 6.494 | |
Working range | A Max. digging height | mm | 13250 |
B Max. dumping height | mm | 10942 | |
C Max. digging depth | mm | 11690 | |
D 8inch horizonal digging depth | mm | — | |
E Max. vertical wall digging depth | mm | 11200 | |
F Max. digging reach | mm | 15394 | |
G Min. swing radius | mm | 4835 | |
The XE215CLL long-arm excavator boasts an ultra-long working range and superior deep-digging capabilities, making it ideal for river dredging, port dredging, and long-distance earthwork construction. While ensuring stability and operational efficiency, it significantly expands the construction range and reduces equipment relocation needs, providing a highly efficient and professional solution for water conservancy projects and special working conditions.
