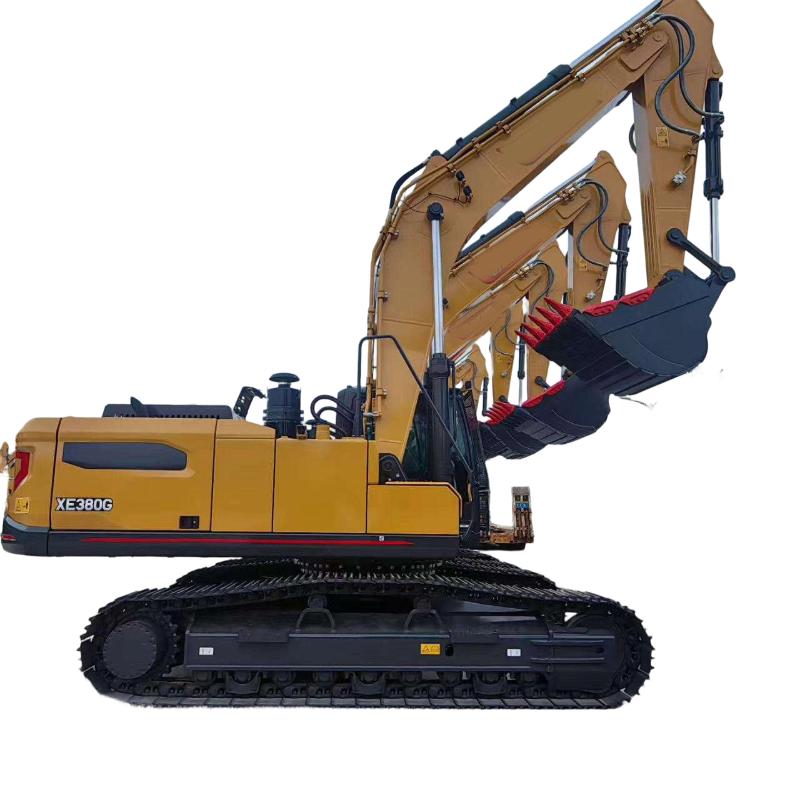

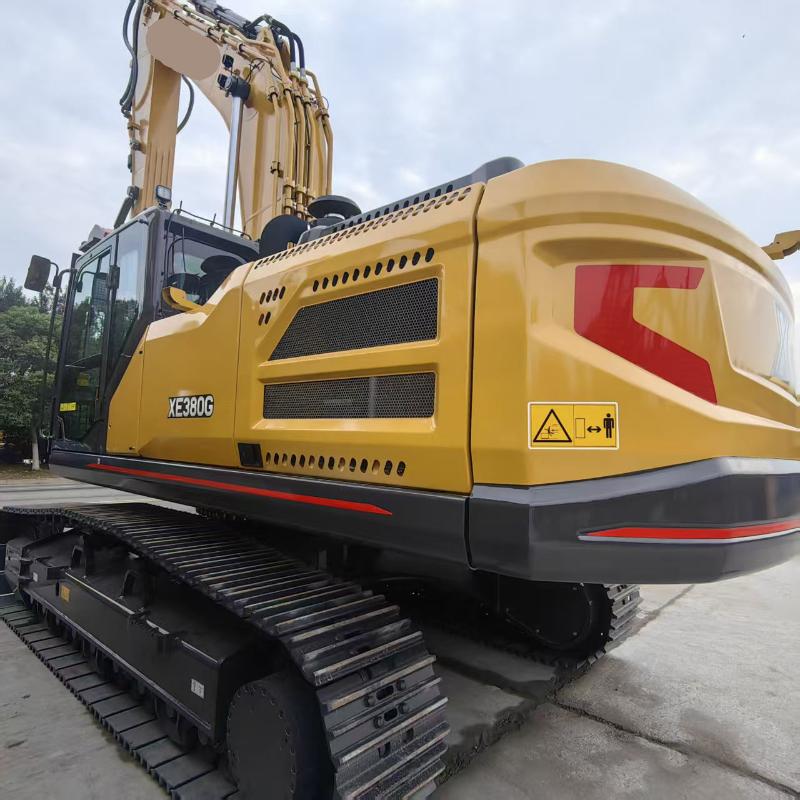

Heavy Duty 38 Tons Hydraulic Crawler Excavator XE380G

The XE380G is a large tracked hydraulic excavator (approximately 38 tons) launched by XCMG, primarily used in heavy-duty applications such as mining, large-scale earthmoving projects, and infrastructure construction. This model is renowned for its powerful engine and efficient operating capabilities, meeting the demands of high-intensity continuous construction.


The equipment is equipped with a high-performance engine and an optimized hydraulic system, achieving a good match between power and operating efficiency, enhancing digging force and operating speed. Simultaneously, the overall structure has been reinforced, possessing excellent stability and durability, enabling it to adapt to complex and harsh construction environments.


+

-

1.Widely used for small and medium-sized mine construction, municipal projects, water conservancy, highway and bridge construction, and other projects.

2.New Pressurized Cabin, comprehensive improvement in comfort and safety, with high power automatic hot and cold AC system, enlarged suspension seat, 8-inch instrument panel with touch screen.
3.Large-displacement main pump, large flow rate, high operating efficiency, all well-matched pump and valve, ensuring reliability.
4.Newly upgraded three-stage fuel filtration system, better oil adaptability.


Advantages

Product Parameters

Operating weight
Operating weight
kg
38700
Engine
Engine brand/model
-
T3-254A1
Rated power/rpm
kW/rpm
254/1900
Direct injection
-
Electric injection
-
4-stroke
-
Water-cooled
-
Turbocharged
-
Air-to-Air intercooling
-
Stroke
mm
145
Cylinder bore
mm
114
Number of cylinders
-
6
Maximum torque/rpm
N·m/rpm
1520/1200
Displacement
L
8.9
Main performance
Travel speed (high/low)
km/h
5.6/3.3
Swing speed
r/min
9.6
Maximum swing torque
kN·m
125
Gradeability
-
35° (70%)
Ground specific pressure
kPa
70.1
Bucket digging force (SAE)
kN
290
Bucket digging force (ISO)
kN
292
Arm digging force (SAE)
kN
201
Arm digging force (ISO)
kN
210
Maximum traction force
kN
305
Track
Standard track shoe width
mm
600
Number of track shoes (per side)
-
49
Number of track roller (per side)
-
9
Number of track carrier roller (per side)
-
2
Hydraulic system
Main pump
-
2 × Variable pumps
Pilot pump
-
PTO pump
-
1 × Gear pump
Maximum flow rate of main system
L/min
2 × 330
Main system pressure
MPa
34.3
Main system pressure (power-max pressure)
MPa
37
Pilot system pressure
MPa
3.9
Travel system pressure
MPa
34.3
Swing system pressure
MPa
26.5
Cab standard
ISO 10262: 1998 (OPG)
-
ISO 12117-2: 2008 (ROPS)
-
Oil capacity
Fuel tank capacity
L
575
Hydraulic oil tank capacity
L
345
Standard
Length of boom
mm
6400
Length of arm
mm
2900
Bucket capacity
1.9 (1.1)
Optional
Length of boom
mm
6400
Length of arm
mm
2670
Bucket capacity
2.1
