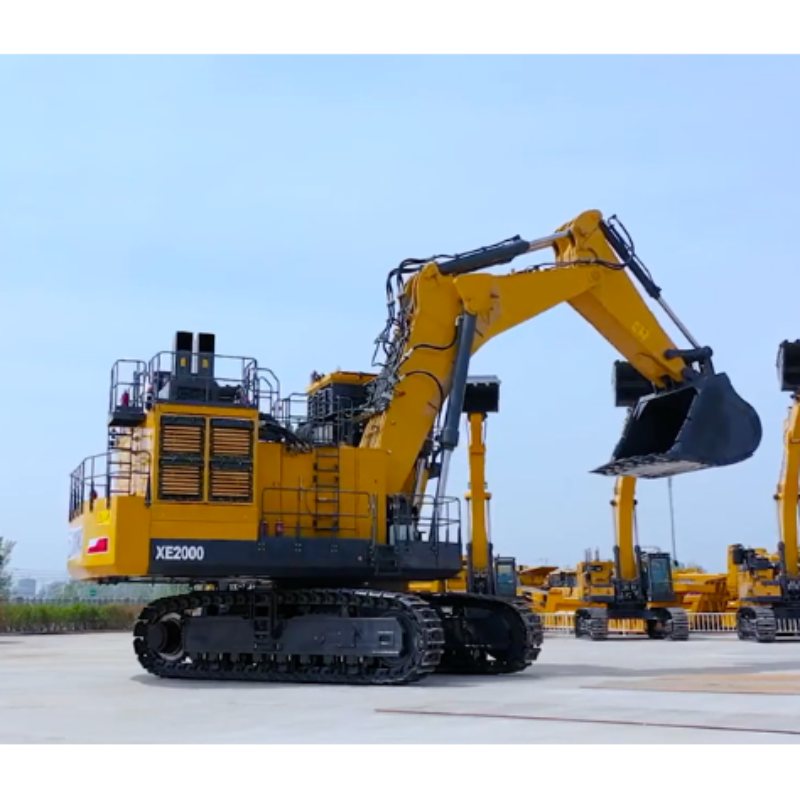

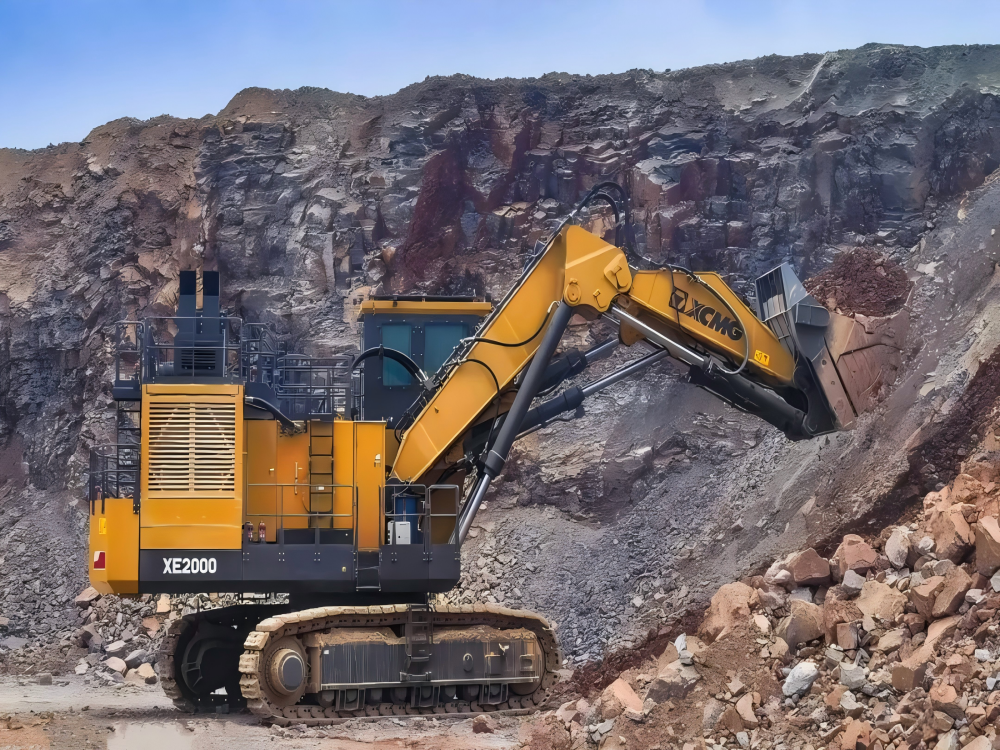

Ultra-large-scale mining operations, widely used in open-pit mining, stripping operations, and large-scale earthmoving projects. Based on an ultra-heavy-duty platform design, key structural components are comprehensively reinforced, providing excellent impact resistance and an extended service life, enabling stable and reliable operation under high-intensity, continuous working conditions.
+
-
Product Features:
Heavy-Duty Structure Platform: The boom, stick, and chassis are all fully reinforced to withstand the high-impact, high-load mining environment.
Powerful Power System: Equipped with an 800 kW engine
High-Efficiency Hydraulic System: A large-displacement main pump and high-pressure system ensure rapid response and efficient operation in combined operations.
Large Capacity Bucket Design: The 8-12 cubic meter large-capacity bucket enables a larger single load
Wide Track Design: Enhances overall machine stability and load-bearing capacity
Intelligent Monitoring System
Product Advantages:
Superior Production Efficiency
Excellent Adaptability to Working Conditions
Lower Total Operating Costs
High Reliability and High Uptime
Greater Operational Stability
Main application scenarios
Open-Pit Coal Mining – Digging and loading coal in large open-pit mines.
Metal Ore Mining – Excavating copper ore, iron ore, and other mineral resources.
Overburden Removal – Removing soil and rock above coal or ore deposits before mining.
Large-Scale Earthmoving – Moving large amounts of soil and rock at mining sites.
Loading Mining Trucks – Loading excavated materials into large mining trucks for transport.
Quarry Operations – Digging and moving rock and other materials in large quarries.
01
Powerful Power System: Rated power of 810 kW / 1800 rpm, meeting the demands of continuous high-load operations in mines.
02
Large Loading Capacity: Bucket capacity of 8–12 m³, significantly increasing single-load capacity and overall productivity.
03
Superior Digging Force: Bucket digging force of 734 kN and boom digging force of 678 kN, easily handling hard rock conditions.
04
Exceptional Stability: Operating weight of 192,000 kg, combined with a wide-body chassis design, ensuring greater stability and reliability during heavy-duty operations.
| Item | Unit | Specification |
|---|---|---|
| Power Type | / | Conventional |
| Manufacturer | / | Domestic (China) |
| Bucket Type | / | Backhoe |
| Operating Weight | kg | 192,000 |
| Tonnage Class | ton | 200 |
| Bucket Capacity | m³ | 8 – 12 |
| Swing Speed | rpm | 4.7 |
| Travel Speed (High/Low) | km/h | 2.7 / 2.1 |
| Bucket Digging Force | kN | 734 |
| Arm Digging Force | kN | 678 |
| Rated Power | kW / rpm | 810 / 1800 |
| Max. Digging Radius | mm | 15,325 |
| Max. Dumping Height | mm | 9,035 |
FAQ:
Q1: What are your payment terms?
A: T/T, L/C
Q2: What are your delivery terms?
A: EXW, FCA ,FOB ,CIF ,DAP.
Q3: What is the warranty period?
A: The specific warranty period varies depending on the purchase contract, normally 6 months.
Q4: How long is the production time?
A: Production time mainly depends on inventory, machine configuration, order quantity, etc. New machinery normally needs about 20-45 working days.
Q5：How long is the warranty?
A：For the brand new models, normally 6 months
