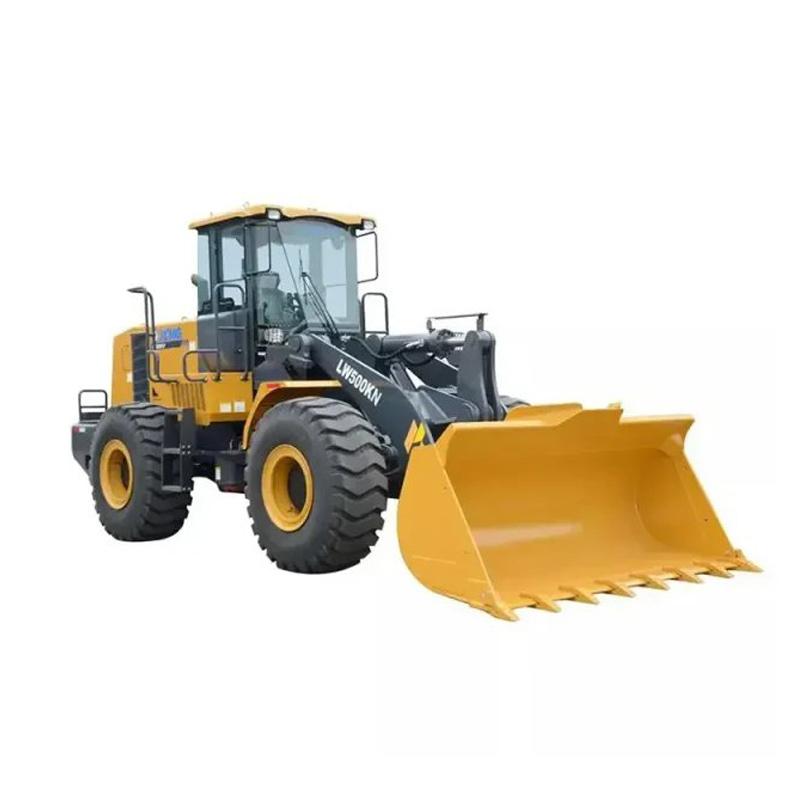

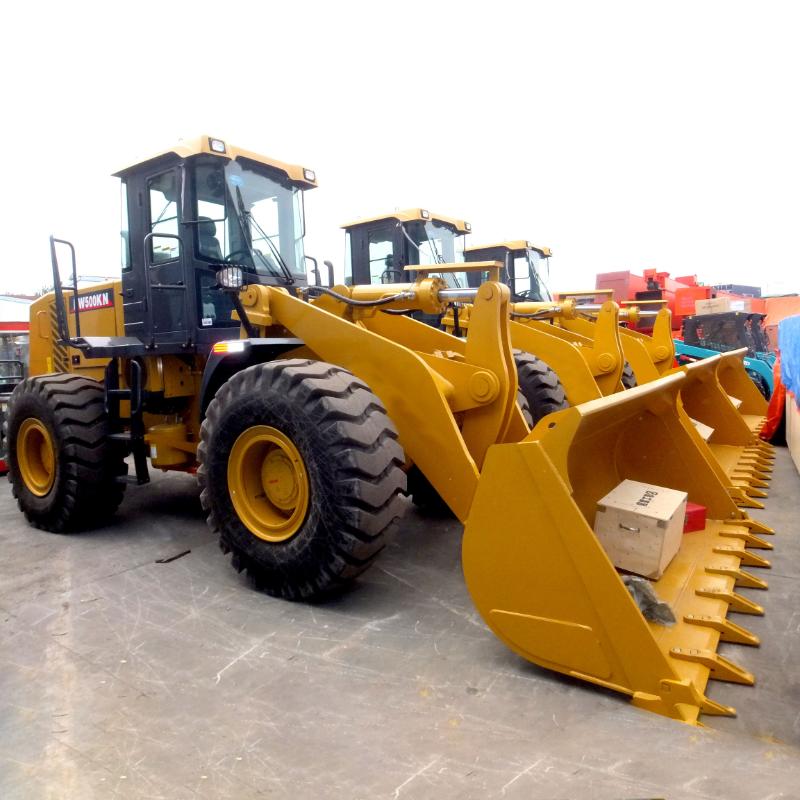

The LW500KN is a classic 5-ton front-end wheel loader from XCMG, widely used in construction, mining, ports, and bulk material yards, primarily for earthmoving, material handling, and loading/unloading operations.
This model employs a mature and reliable power system and optimized transmission matching, possessing strong loading capacity and stable operating performance, maintaining high efficiency even under high-intensity working conditions. The machine's overall structure is robust and durable, with key components reinforced to adapt to complex and harsh construction environments.
+
-
LW500KN is suitable for heavy loads under rock conditions; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity. The large rock bucket with capacity of 3M3 is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
Advantages and highlights:
01
Powerful Heavy-Duty Capacity This equipment boasts a 5-ton heavy-duty capacity and a high-strength working device, easily handling mining and high-intensity loading and unloading environments.
02
Highly Efficient Work Cycle Performance Optimized power and hydraulic matching improves loading speed and response efficiency, shortening work cycle time.
03
Highly Reliable Structural Design Key components have been reinforced and upgraded, enhancing the machine's durability and enabling long-term continuous high-load operation.
04
Good Fuel Economy While ensuring power output, fuel consumption is reduced, achieving a balance between efficiency and cost.
Description | Unit | lw500kn |
Rated operating load | kg | 5000 |
Bucket capacity | m³ | 2.7~4.5 |
Machine weight | kg | 17200 |
Dump clearance at maximum lift | mm | 3150~3560 |
Reach at maximum lift | mm | 1100~1190 |
Wheel base | mm | 3300 |
Tread | mm | 2250 |
Height of hinge at maximum lift height | mm | 4112 |
Working height(fully lifted) | mm | 5407 |
Max.breakout force | kN | 170 |
Hydraulic cycle time-raise | s | ≤6.5 s |
Total hydraulic cycle time | s | ≤11 s |
Min. turning radius over tyres | mm | 5925 mm |
Articulation angle | ° | 30 º |
Gradeability | ° | 45 º |
Tyre size | 23.5-25-16PR | |
Overall machine dimension L×W×H | mm | 8870*3000*3350 |
Model | WD10G220E21 | |
Rated Power | kW | 162 |
The LW500KN wheel loader excels in various earthmoving operations, mining, port, and bulk material storage yard construction scenarios due to its powerful loading capacity, stable and reliable operating performance, and high work efficiency. Its robust and durable structure, optimized power system, and comfortable operating experience make it an ideal choice for medium to large-scale engineering projects. With its good fuel economy and wide applicability, the LW500KN is a highly efficient, reliable loader with long-term investment value.
