1,Outstanding capability： With traction at ≥9t and breakout force at ≥13t. High adaptability.The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
2,Market position: Industry 3t single-model sales champion. Excellent quality power and drive systems.
3,Optimized bucket shape: The bucket is made of high strength material to realize high wear and impact resistance.The lengthened bucket bottom and the sharp bucket shape ease the penetration and realize higher bucket loading capacity.
+
-

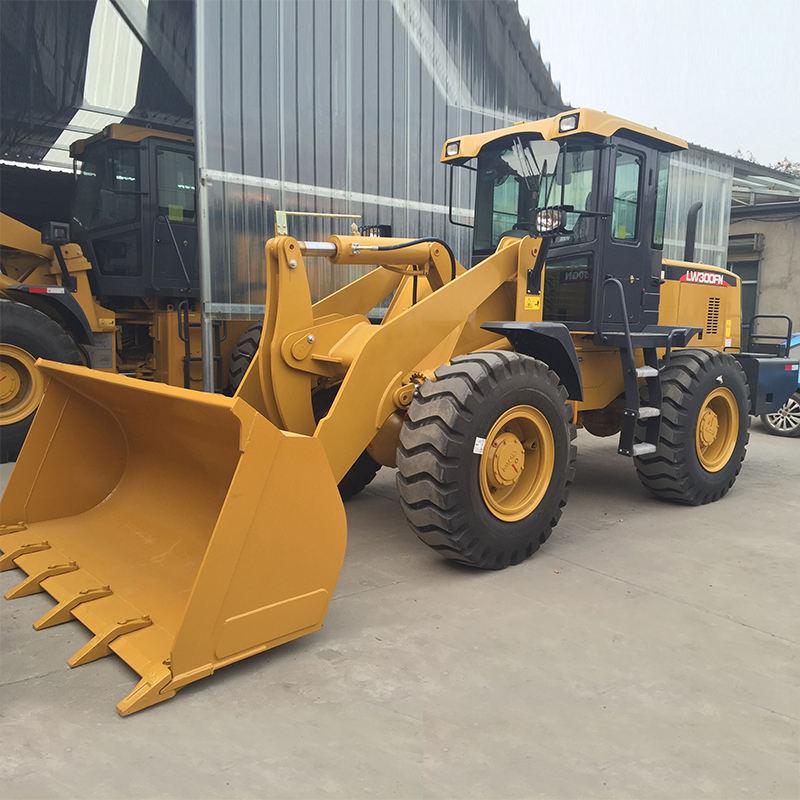

Power system: The LW300FN loader is equipped with a Yuchai YCD4J series engine with a power of up to 220kW. The powerful engine ensures the stable performance of the machine in various working environments. The engine adopts an environmentally friendly design, meets the European Stage III emission standards, and reduces pollution to the environment.
Hydraulic system: Equipped with a load-sensitive hydraulic system (LUDV), which effectively improves work efficiency. The system can automatically adjust the oil flow and pressure according to load changes to achieve optimal working performance and fuel efficiency.
Speed transmission system: The LW300FN loader adopts a ZF automatic transmission, providing 4 forward gears and 3 reverse gears, with smooth shifting characteristics, which can effectively improve the work efficiency and operating comfort of the whole machine.
Drive system: It adopts a full hydraulic drive, has higher transmission efficiency, and can adapt to various complex working conditions, ensuring that tasks are completed smoothly and safely during work.
Structural design: The LW300FN loader adopts a full steel welded frame design with strong rigidity and good durability. The design of the frame and front and rear axles have optimized the structure, improved the stability of the vehicle, and ensured high reliability under complex working conditions.
Advantages and strengths:
Powerful power and high efficiency: The loader is equipped with a high-power engine, combined with an optimized hydraulic system, which can operate stably under higher loads and improve work efficiency, especially under heavier working conditions.
Superior fuel economy: The LW300FN loader adopts advanced power system and hydraulic system optimization design, and the fuel consumption of the whole machine is low, which saves energy and reduces emissions while reducing operating costs.
Operational comfort: It adopts humanized design, spacious cab, wide field of vision, equipped with highly comfortable seats and advanced air conditioning system, which reduces the driver’s operating fatigue and improves work efficiency.
High reliability: The design, material selection and manufacturing process of the LW300FN loader are strictly controlled, and the whole vehicle is durable. The design of the hydraulic system and drive system enables it to operate stably under various harsh working conditions, reducing the failure rate.
Excellent traction and passability: Equipped with large-size tires and a powerful drive system, the LW300FN loader has excellent traction and high passability, and can operate smoothly even in muddy or uneven terrain.
Intelligent configuration: Equipped with an LCD display, it can monitor various parameters in real time, allowing operators to grasp the machine status in real time and perform precise operations. The automatic alarm system can promptly remind maintenance needs, which helps reduce equipment failures and improve the long-term stability of the equipment.
Easy to maintain: The design of the LW300FN loader pays great attention to maintainability, and daily maintenance is very convenient. The engine hood and hydraulic system design have spacious maintenance space, which is convenient for operators to perform routine inspections and repairs.
01
Classic 3-ton General Purpose Loader This proven 3-ton loader is suitable for various working conditions, including sand and gravel, coal, earthmoving, and port loading and unloading, offering exceptional versatility.
02
High Cost-Effectiveness While ensuring performance and reliability, this loader also boasts advantages in purchase and operating costs, making it ideal for large-scale applications.
03
Mature and Reliable Technology Platform Utilizing a market-proven powertrain system, it features high stability and a low failure rate, suitable for long-term continuous operation.
04
Balanced Operating Efficiency A good balance between loading capacity, speed, and fuel consumption achieves a perfect combination of efficiency and economy.
| Description | Unit | Parameter value |
|---|---|---|
| Rated operating load | kg | 3000 |
| Bucket capacity | m³ | 1.5~2.5 |
| Machine weight | kg | 10600±200 |
| Dump clearance at maximum lift | mm | 2770~3260 |
| Reach at maximum lift | mm | 1010~1210 |
| Wheel base | mm | 2600 |
| Tread | mm | 1850 |
| Height of hinge at maximum lift height | mm | 3830 |
| Working height(fully lifted) | mm | 4870 |
| Max.breakout force | kN | 130 |
| Max.horse power | kN | 95 |
| Hydraulic cycle time-raise | s | 5.5 |
| Total hydraulic cycle time | s | 10 |
| Min. turning radius over tyres | mm | 5165 |
| Articulation angle | ° | 35±1 |
| Gradeability | ° | 28 |
| Tyre size | 17.5-25-12PR | |
| Overall machine dimension L×W×H | mm | 7050×2482×3118 |
| Model | WP6G125E22 | |
| Emission standards | Emission 2 | |
| Rated Power/Speed | kW/rpm | 92/2200 |
| Fuel Tank | L | 170 |
| Hydraulic Tank | L | 170 |
| Ⅰ-gear(F/R) | km/h | 8/10 |
| Ⅱ-gear(F/R) | km/h | 13/30 |
| Ⅲ-gear(F) | km/h | 24/- |
| Ⅳ-gear(F) | km/h | 40/- |
The LW300FN wheel loader, with its mature and reliable technology platform, excellent versatility, and superior cost-effectiveness, performs stably and efficiently in various material handling and construction projects. Its balanced performance and convenient maintenance not only improve operational efficiency but also effectively reduce operating costs.
Products Center

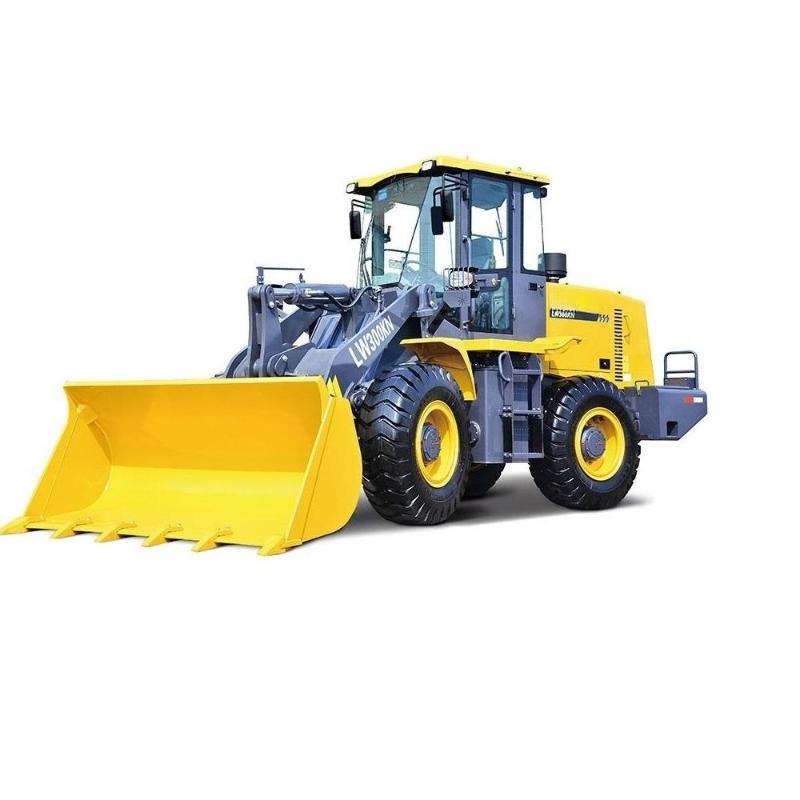

LW300KN is a classic high-end loader from XCMG, which is famous for its superior performance and adaptability.
