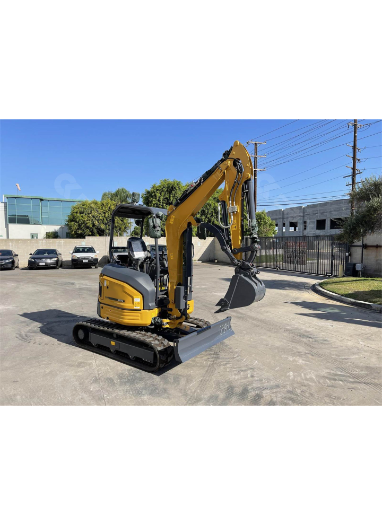

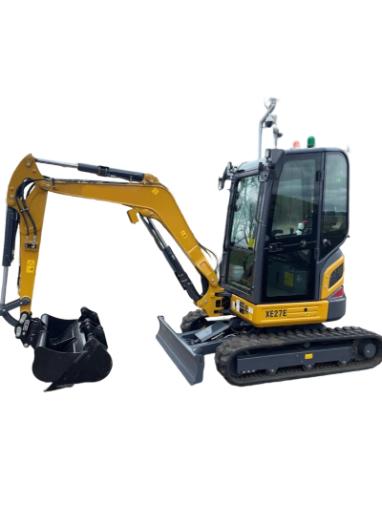

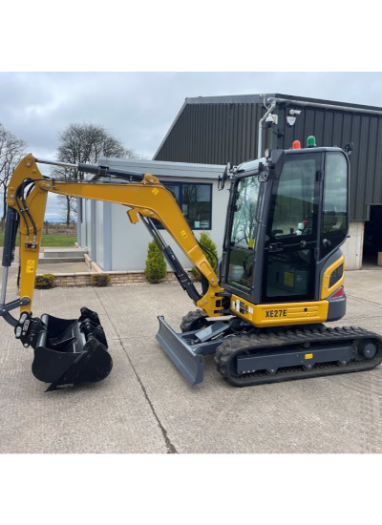

The XE27E excavator is a 2-3 ton class small crawler hydraulic excavator launched by XCMG, designed specifically for municipal construction, landscaping, rural construction, and operation in confined spaces. The machine features a compact structure and flexible controls, ensuring excellent performance while also prioritizing fuel efficiency and operator comfort.
This machine utilizes a mature and reliable engine and hydraulic system, providing smooth power output and coordinated movements, meeting the demands of various operations such as digging, loading, and leveling. The optimized working device and stable undercarriage structure ensure excellent operational stability even on complex terrain.
+
-
XE27E Excavator Features and Advantages
1. Compact Structure and High Maneuverability
The XE27E features a small crawler design with a compact overall size and flexible turning capabilities, allowing it to easily access narrow passages, courtyards, and confined construction areas, improving construction adaptability.
2. Optimized Power Matching and High Operating Efficiency
Equipped with a mature and reliable engine and hydraulic system, it provides stable power output and smooth, coordinated movements, meeting various operational needs such as excavation, loading, and backfilling.
3. Excellent Overall Stability and Durability
The reinforced chassis structure and work device design ensure excellent overall stability and strong impact resistance, making it suitable for long-term continuous operation.
4. Comfortable Operation and High Safety
The cab or protective canopy features an ergonomic layout, providing a wide field of vision and easy operation, reducing operator fatigue and improving work safety.
5. Convenient Maintenance and Cost-Effective
Key components are centrally located, making daily inspection and maintenance more convenient, effectively reducing maintenance time and operating costs.
XE27E Excavator Key Selling Points
01
Compact body for greater flexibility in confined spaces
02
Reliable power and coordinated, efficient operation
03
Stable and durable, suitable for various working conditions
04
Comfortable operation and low maintenance costs
Product Parameters
Model | Metric unit | XE27E | ||
Operating weight | kg | 2780 | ||
Engine | Make/model | -- | Kubota/D1105 /EU Stage V | |
Fuel/cooling | -- | Diesel/Liquid,forced circulation | ||
No. of cylinders | -- | 3 | ||
Piston displacement | cm³ | 1123 | ||
Power output | -- | 15.4 kW (20.9 hp) / 2400 rpm (ISO 14396) | ||
Max torque | -- | 70.3 N.m/1600rpm | ||
Bore × stroke | mm | 78.0×78.4 | ||
Alternator | -- | 12 V/40 A | ||
Pump | Type | km/h | Load-sensing axial-piston pump with variable displacement | |
Maximum system flow rate | L/min | 82.8 | ||
AUX1 & AUX2 maximum flow rate | L/min | 25/7 | ||
AUX1/AUX2 standard relief pressure | -- | 180/180 bar | ||
Maximum system pressure | Boom | -- | 243 bar | |
Arm / bucket / travel | -- | 243bar/243 bar/190 bar | ||
Swing | -- | 162 bar | ||
Number of rollers and track shoes | Bottom rollers (per side) | -- | 3 | |
Track shoes | -- | Rubber | ||
Overall track length | mm | 1980 | ||
Shoe width | mm | 300 | ||
Fluid Capacity | Cooling system (radiator capacity) | L | 6.5 | |
Engine lubrication plus oil filter | L | 5.1 | ||
Fuel tank capacity | L | 33 | ||
Hydraulic tank capacity | L | 22 | ||
Hydraulic system | L | 40 | ||
Noise emission | Noise level LpA (ISO 6396) | dB(A) | 79 | |
Noise level LwA (ISO 6395) | dB(A) | 93 | ||
Swing system | Boom swing, left | 。 | 75 | |
Boom swing, right | 。 | 55 | ||
Slew rate | rpm | 10 | ||
Speed & traction | Travel speed (low - high) | km/h | 2-3.1 | |
Traction force | kN | 29.7 | ||
Gradeability | 。 | 30° | ||
Digging forces (ISO 6015) | Digging force, long arm (ISO 6015) | kN | 14 | |
Digging force, bucket (ISO 6015) | kN | 23 | ||
Weight | Operating weight with canopy and bucket (ISO 6016) | kg | 2780 | |
Ground pressure with rubber tracks | kPa | 26.4 | ||
Transport mass (no attachment) | kg | 2650 | ||
Weight of steel tracks | kg | 200 | ||
Weight of rubber tracks | kg | 134.5 | ||
Appearance size | A | Overall length | mm | 4190 |
B | Overall width | mm | 1500 | |
C | Overall height | mm | 2580 | |
D | Width of platform | mm | 1350 | |
E | Length of crawler | mm | 1980 | |
F | Overall width of chassis | mm | 1500 | |
G | Width of crawler | mm | 300 | |
H | Distance between tumblers | mm | 1560 | |
I | Crawler gauge | mm | 1200 | |
J | Clearance under counterweight | mm | 535 | |
K | Min. ground clearance | mm | 290 | |
L | Min. tail swing radius | mm | 790 | |
Working scope | A | Max. digging height | mm | 4390 |
B | Max. dumping height | mm | 3120 | |
C | Max. digging depth | mm | 2800 | |
D | Max. vertical wall digging depth | mm | 2310 | |
E | Max. digging reach | mm | 4750 | |
F | Min. swing radius | mm | 1980 | |
G | Maximum dozer lifting height | mm | 300 | |
H | Maximum dozer cutting depth | mm | 330 | |
I | Boom deflection distance (left/right) | mm | 610/585 | |
The XE27E excavator, with its compact and flexible design, stable and efficient performance, and excellent economic efficiency, can be widely used in municipal construction, landscaping, and operations in confined spaces. Its reliable overall quality and convenient maintenance design make it a trustworthy and cost-effective choice for small-scale engineering projects.
