37 Ton Large Hydraulic Crawler Excavator XE370D on Sale

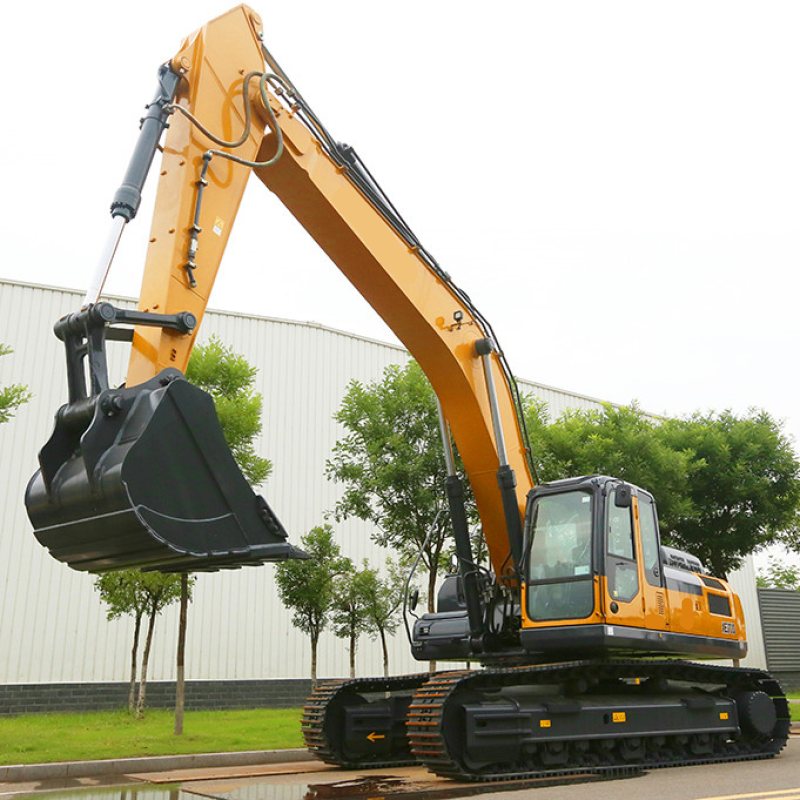

The XE370D tracked excavator is a high-performance 37-ton class machine designed for large-scale engineering and mining operations, combining powerful performance, efficient operation, and stable reliability. The machine features a mature power system and optimized hydraulic matching, enabling it to maintain stable output and excellent efficiency in high-intensity continuous construction environments.

Through reinforced structural design and a strengthened chassis system, the XE370D maintains outstanding stability and durability even in complex terrain and heavy-duty conditions. Meanwhile, its wide operating range and flexible handling effectively improve construction efficiency and reduce operating costs, making it an ideal mainstay machine for earthmoving, mining construction, and infrastructure development.


+

-

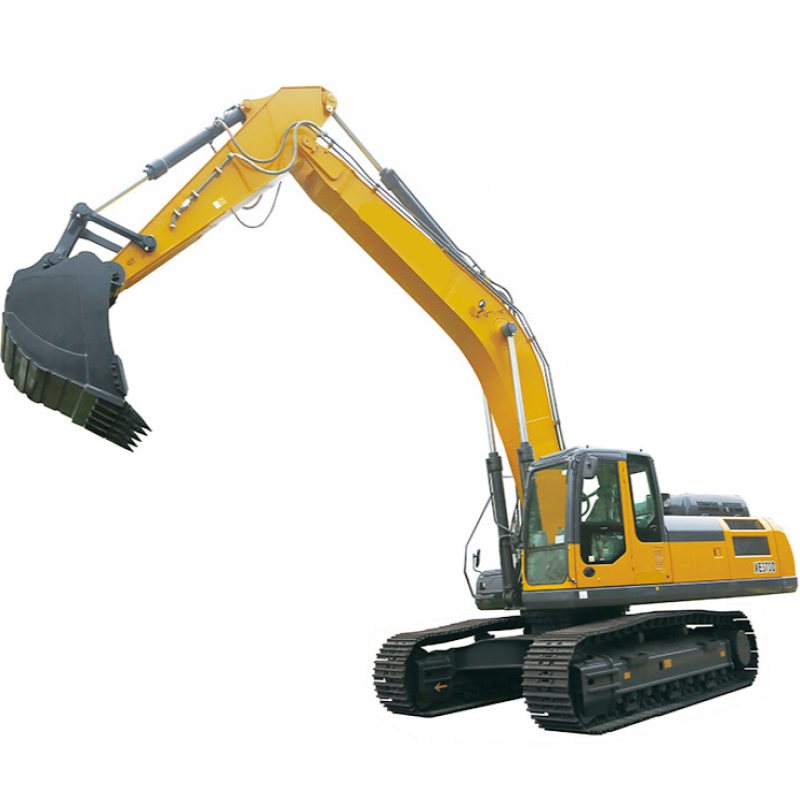

XE370D large hydraulic excavator

The XE370D excavator is designed to function in demanding working conditions with its low-speed, high-torque engine. This engine provides a remarkable power output, with a balanced power curve and fuel consumption, making it ideal for excavator operations. Additionally, the latest generation of controllers has been employed to optimize the power match between the hydraulic pump and the engine. This aims to maximize the efficiency of engine power, reduce waste, and further enhance fuel savings.The efficient and fast hydraulic system is supplemented by a new large-diameter multi-way control valve; the valve core control range is expanded, the controllability is improved, and the channel pressure loss is reduced by 30%, which greatly improves the composite operation efficiency of the whole machine. The new generation of control system realizes the precise and fast four-way matching of the power system and the hydraulic system, and fully utilizes the engine power. The standard extended and reinforced chassis has better working stability and higher reliability in the mine. The heavy-duty reinforced boom, dipper and bucket can maintain strong digging force under harsh working conditions.


Item
Unit
Parameters
Model

XE370D
Operating weight
kg
36800
Bucket capacity
m3
1.6~1.8
Engine
Engine model
\
GH-6HK1XKSC-03
Cylinders
\
6
Output power of engine
kW/rpm
212/2000
Max. torque / speed
N.m/rpm
1080/1500
Displacement
L
7.79
Main performance
Travel speed
km/h
5.4/3.2
Slewing speed
r/min
9.7
Gradient capability
°
≤35
Ground pressure
kPa
66.7
Bucket digging force
kN
263
Arm digging force
kN
111
Hydraulic system
Rated flow of main pump
L/min
2×304
Pressure of main safety valve
MPa
34.3/37
Pressure of traveling system
MPa
34.3
Pressure of pilot system
MPa
3.9
Oil volume
Fuel tank capacity
L
660
Hydraulic tank capacity
L
350
Engine oil volume
L
30
Overall dimension
Total length
mm
11388
Total width
mm
3190
Total height
mm
3530
Width of rotary table
mm
3050
Length of track
mm
5035
Total width of chassis
mm
3190
Width of track
mm
600
Wheelbase of track
mm
4040
Track gauge
mm
2590
Counterweight ground clearance
mm
1197
Min. ground clearance
mm
500
Min. tail swing radius
mm
3700
Working radius
Max. digging height
mm
10445
Max. unloading height
mm
7287
Max. digging depth
mm
7423
8-feet digging depth under ground
mm
7266
Max. vertical digging depth
mm
6776
Max. digging radius
mm
11114
Max. swing radius
mm
4369
Standard configuration
Length of boom
mm
6400
Length of arm
mm
3200
