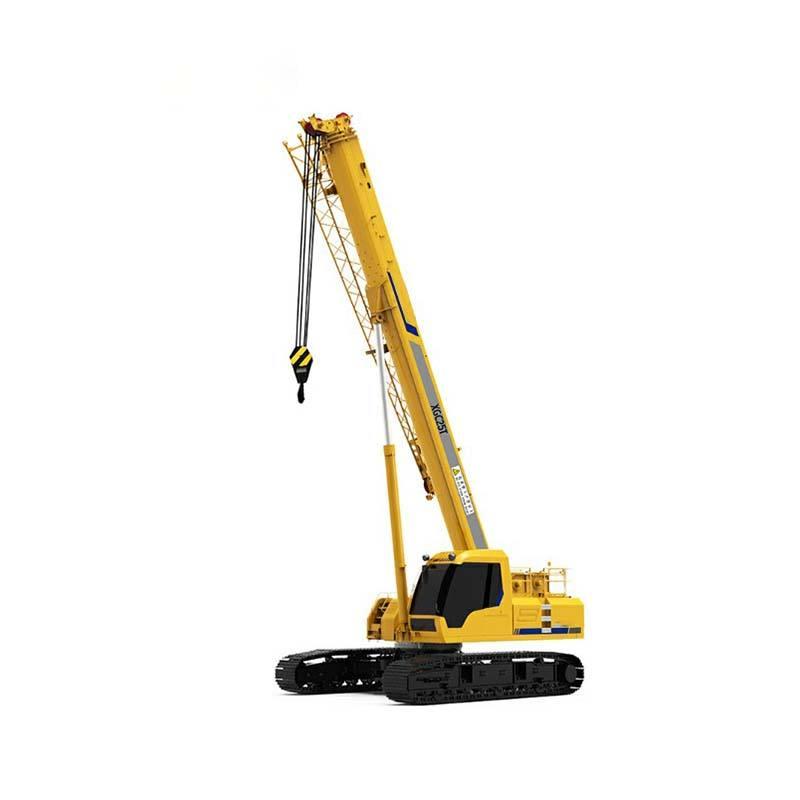

The XGC25T is a 25-ton telescopic boom crawler crane that combines the excellent mobility of a crawler chassis with the flexible operation of a telescopic boom crane. It is widely used in municipal construction, steel structure installation, power construction, foundation engineering, and hoisting operations on narrow construction sites. The machine features a high-strength telescopic boom structure and an advanced hydraulic control system, providing stable and reliable lifting performance, flexible relocation capabilities, and excellent adaptability to complex terrain. With its 33-meter boom working range, 45% gradeability, and ability to travel with a load, the XGC25T effectively improves construction efficiency and reduces overall operating costs, making it a highly efficient solution for small to medium-sized engineering hoisting projects.
+
-
1.High-Efficiency Lifting Capacity of 25 Tons:
Maximum rated lifting capacity reaches 25 tons, meeting the hoisting needs of municipal, power, and foundation construction.
Maximum lifting torque reaches 970 kN·m, ensuring stable and reliable hoisting performance.
Suitable for various small and medium-sized engineering construction conditions.
2. Extra-Long Telescopic Boom Design:
The main boom can reach a maximum length of 33 m.
With the auxiliary boom, the maximum working height reaches 39.8 m.
Meets the needs of high-altitude hoisting and complex construction conditions.
3. Strong Adaptability to Complex Terrain with Tracked Chassis:
The tracked walking system has a ground pressure of only 0.06 MPa.

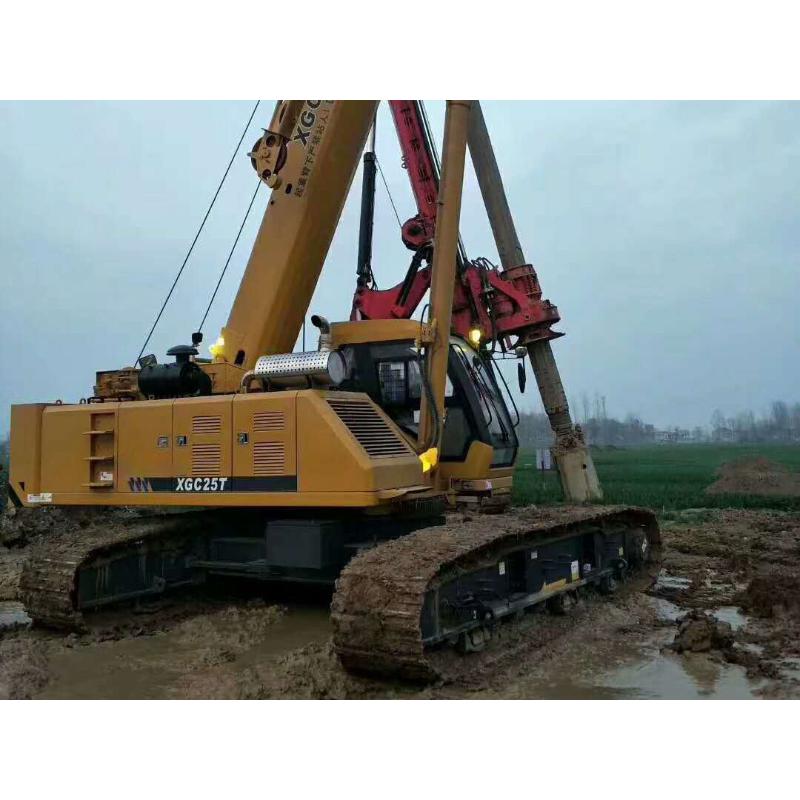

Suitable for muddy ground, soft foundations, and complex construction environments.
Maximum climbing ability reaches 45%, providing excellent off-road performance.
4. Flexible Load-Bearing Travel Capability:
Supports loaded travel operations, improving on-site construction flexibility.
Fully loaded travel speed can reach 1.5 km/h.
Improves the efficiency of continuous hoisting construction.
5. High-Efficiency Hydraulic Control System
Lifting speed up to 140 m/min.
Main boom raising time is only 48 s, and full extension time is approximately 56 s.
Rapid response and smoother, more precise control.
6. Powerful and Energy-Saving Power System
Equipped with a QSB6.7 engine, rated power 142 kW.
Meets EU Stage IIIA emission standards for non-road use.
Stable power output and excellent fuel economy.
7. Compact Body for Easy Relocation
The overall width is only 2950 mm after retraction.
Suitable for narrow construction sites and urban construction environments.
Reduces the difficulty of transportation and on-site relocation.
8. Comfortable and Safe Operating Environment
The cab offers excellent visibility and a rationally designed ergonomic layout.
Equipped with an intelligent safety monitoring system to improve construction safety.
Reduces fatigue during long-term operation.
01
High-efficiency lifting capacity (25 tons): Maximum rated lifting capacity up to 25 tons, maximum lifting moment up to 970 kN·m, meeting the lifting needs of various small and medium-sized projects.
02
33 m ultra-long telescopic boom: The main boom can reach a maximum length of 33 m, and with the auxiliary boom, the maximum lifting height reaches 39.8 m.
03
Excellent performance in complex terrain: Maximum climbing ability up to 45%, ground pressure specificity of only 0.06 MPa, adaptable to construction environments in muddy and soft foundations.
04
High-efficiency hydraulic operating system: Maximum lifting speed up to 140 m/min, main boom raising time only 48 s, improving construction efficiency.
| Item | Unit | XGC25T |
|---|---|---|
| Dimensions | ||
| Overall Length | mm | 12805 |
| Overall Width (Extended/Retracted) | mm | 4200 / 2950 |
| Overall Height | mm | 3035 |
| Distance Between Drive and Idler Wheel Centers | mm | 4330 |
| Track Shoe Width | mm | 700 |
| Weight Parameters | ||
| Total Weight in Travel State | kg | 34960 |
| Travel Parameters | ||
| No-load Travel Speed | km/h | 2.6 |
| Full-load Travel Speed | km/h | 1.5 |
| Min. Ground Clearance | mm | 357 |
| Max. Gradeability | % | 45 |
| Ground Pressure | MPa | 0.06 |
| Power Parameters | ||
| Noise Level at Operator Ear | dB(A) | 80 |
| Engine Model | - | QSB6.7 |
| Rated Engine Power | kW | 142 |
| Rated Engine Speed | r/min | 1800 |
| Emission Standard | - | Non-road EU Stage IIIA |
| Capacity Parameters | ||
| Hydraulic Oil Tank Capacity | L | 400 |
| Fuel Tank Capacity | L | 450 |
| Main Performance Parameters | ||
| Max. Rated Lifting Capacity | t | 25 |
| Min. Rated Working Radius | m | 3 |
| Max. Lifting Moment – Basic Boom | kN·m | 970 |
| Max. Lifting Moment – Longest Main Boom | kN·m | 576 |
| Lifting Height – Basic Boom | m | 9.9 |
| Lifting Height – Longest Main Boom | m | 32.3 |
| Lifting Height – Longest Main Boom + Jib | m | 39.8 |
| Boom Length – Basic Boom | m | 10.6 |
| Boom Length – Longest Main Boom | m | 33 |
| Boom Length – Longest Main Boom + Jib | m | 41.15 |
| Jib Installation Angle | ° | 0°, 15°, 30° |
| Working Speed | ||
| Boom Raising Time | s | 48 |
| Boom Fully Extending Time | s | 56 |
| Max. Slewing Speed | r/min | 2.5 |
| Hoisting Speed – Main Winch (No-load, 4th Layer) | m/min | 140 |
| Hoisting Speed – Auxiliary Winch (No-load, 4th Layer) | m/min | 140 |
The XGC25T telescopic boom crawler crane, with its efficient 25-ton lifting capacity, 33-meter ultra-long main boom, and excellent crawler chassis mobility, can meet a variety of complex lifting needs in municipal construction, power construction, steel structure installation, and foundation engineering. The machine combines advantages such as flexible loaded movement, efficient hydraulic control, convenient relocation, and stable and reliable operation, maintaining excellent performance even in confined spaces and complex working conditions. Whether in urban engineering or field construction, the XGC25T provides users with a more efficient, safe, and economical lifting solution.
