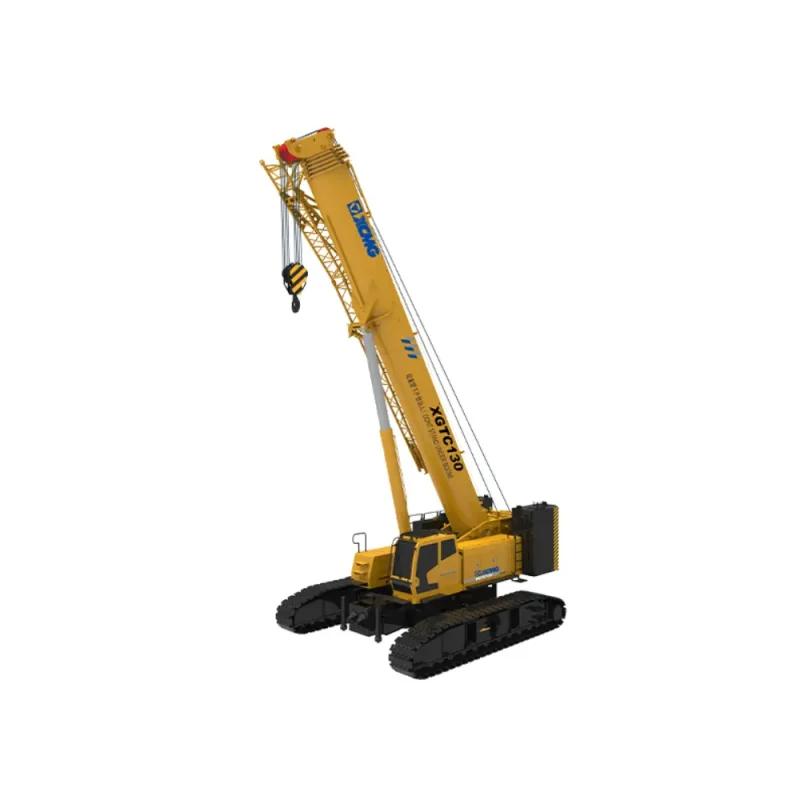

The XGTC130 is a 130-ton high-performance telescopic boom crawler crane that combines the stability of a crawler crane with the flexibility of a telescopic boom crane. It is widely used in bridge construction, wind power installation, steel structure hoisting, petrochemical engineering, and large-scale infrastructure construction. The machine features a high-strength six-section telescopic boom structure and an advanced hydraulic control system, providing powerful lifting capacity, rapid relocation efficiency, and excellent adaptability to complex terrain, meeting the demands of various high-intensity hoisting conditions. With its stable and reliable operating performance, intelligent safety control system, and comfortable and convenient operation, the XGTC130 effectively improves construction efficiency and reduces overall operating costs, making it an ideal choice for medium to large-scale hoisting projects.
+
-
1.Powerful 130-ton Lifting Capacity:
Maximum rated lifting capacity reaches 130 tons, meeting the hoisting needs of large bridges, steel structures, and wind power projects.
Maximum lifting moment reaches 4860 kN·m, providing enhanced heavy-duty hoisting capabilities.
Suitable for various high-intensity engineering construction conditions.
2. Six-Section Extra-Long Telescopic Boom Design:
Boom length ranges from 13.9–65 m, covering a wider operating radius.
The six-section telescopic boom structure enhances high-altitude hoisting capabilities.
Optional fixed jib lengths of 11 m / 18.5 m are available to meet complex hoisting requirements.
3.Strong Adaptability to Complex Terrain with Tracked Chassis:
The tracked chassis has low ground pressure, with an average ground pressure of only 1.035 MPa.
Excellent performance in mud, mountains, and soft foundations.
Maximum climbing ability reaches 45%, adapting to complex construction environments.
4. High-Efficiency and Stable Hydraulic System
Adopting advanced hydraulic control technology, the system offers rapid response.
Lifting, slewing, and telescopic movements are smooth and precise.
Improving lifting efficiency and construction safety.
5. Powerful and Reliable Power System
Equipped with a Shangchai 9DF engine, with a rated power of 265 kW.
Stable power output meets the needs of long-term continuous operation.
Meets the National IV emission standards for non-road applications, making it more energy-efficient and environmentally friendly.
6. Flexible and Efficient Relocation Capability
The telescopic boom structure reduces disassembly and assembly work, improving equipment relocation efficiency.
The maximum single-piece transport weight is approximately 51.6 tons, facilitating transportation and on-site deployment.
Reducing auxiliary transportation and installation costs.
7. Intelligent Safety Control System
Equipped with intelligent monitoring and safety protection functions.
Real-time monitoring of lifting status enhances construction safety assurance capabilities.
Effectively reducing operational risks under complex working conditions.
8. Comfortable and Convenient Operation and Maintenance
The spacious cab design provides excellent visibility.
The ergonomic control layout reduces fatigue during long-term operation.
Modular structure design makes maintenance more convenient.
01
130-Ton Class Ultra-Strong Lifting Capacity With a maximum rated lifting capacity of 130 tons and a maximum lifting moment reaching 4,860 kN·m, it meets the demands of large-scale hoisting projects.
02
65-Meter, Six-Section Ultra-Long Telescopic Main Boom The main boom spans a length range of 13.9 to 65 meters, covering a wider operating radius and delivering enhanced high-altitude lifting capabilities.
03
Strong Adaptability to Complex Terrain With an average ground pressure of just 1.035 MPa and a maximum gradeability of 45%, it is well-adapted to operating conditions involving muddy ground, mountainous terrain, and soft foundations.
04
265 kW High-Performance Power System Equipped with a Shangchai 9DF engine, delivering a rated power of 265 kW, it meets the requirements for prolonged, high-intensity, and continuous construction operations.
| Item | Unit | XGTC130 |
|---|---|---|
| Max. Rated Lifting Capacity | - | / |
| Boom Working Condition | t | 130 |
| Fixed Jib Working Condition | t | 7.4 |
| Boom Tip Pulley Working Condition | t | 10 |
| Max. Lifting Moment | kN·m | 4860 |
| Dimensions Parameters | - | / |
| Boom Length | m | 13.9–65 (6 Sections) |
| Fixed Jib Length | m | 11 / 18.5 (2 Sections) |
| Engine | - | / |
| Rated Power | kW | 265 |
| Engine Brand | - | Shangchai 9DF |
| Emission Standard | - | Non-road China Stage IV |
| Average Ground Pressure | MPa | 1.035 |
| Gradeability | - | 0.45 |
| Operating Weight | t | / |
| Max. Weight of Single Transport Component | t | 51.6 |
| Main Unit Transport Weight (Including Track Frame) | t | / |
| Max. Transport Dimension (L × W × H) | m | 16.6 × 3.2 × 3.1 |
With its robust 130-ton lifting capacity, an ultra-long 65-meter telescopic main boom, and exceptional off-road maneuverability provided by its crawler chassis, the XGTC130 telescopic crawler crane is capable of meeting the diverse and complex construction demands of projects such as bridge building, wind power installation, steel structure erection, and large-scale infrastructure development. The machine combines high stability, superior operational efficiency, flexible site-to-site transfer capabilities, and intelligent safety control systems, ensuring stable and reliable lifting performance even under the most complex working conditions. Whether deployed in large-scale engineering projects or challenging field environments, the XGTC130 delivers highly efficient, safe, and cost-effective lifting solutions for its users.
