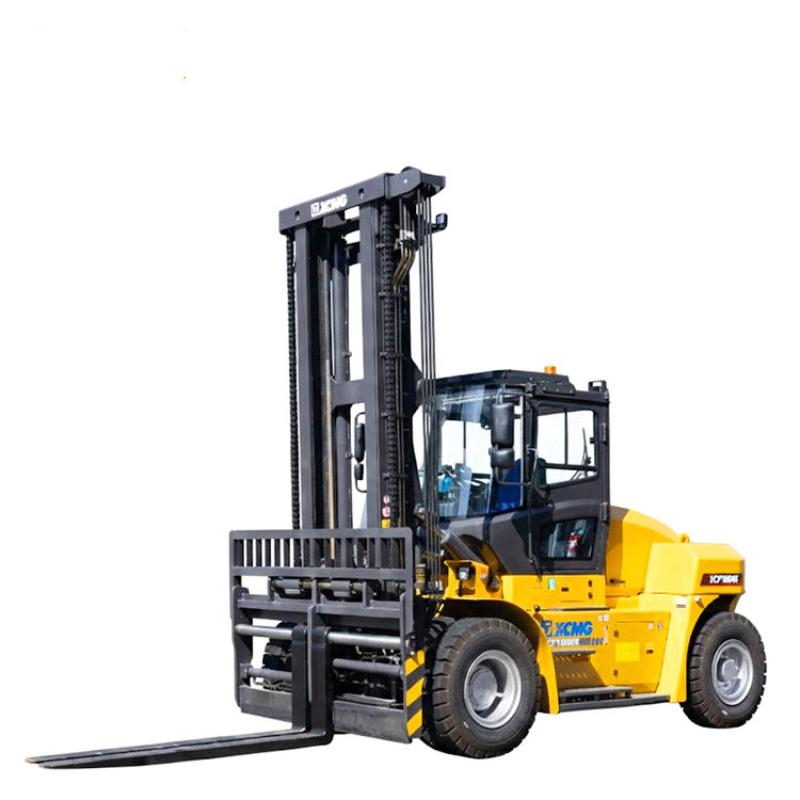

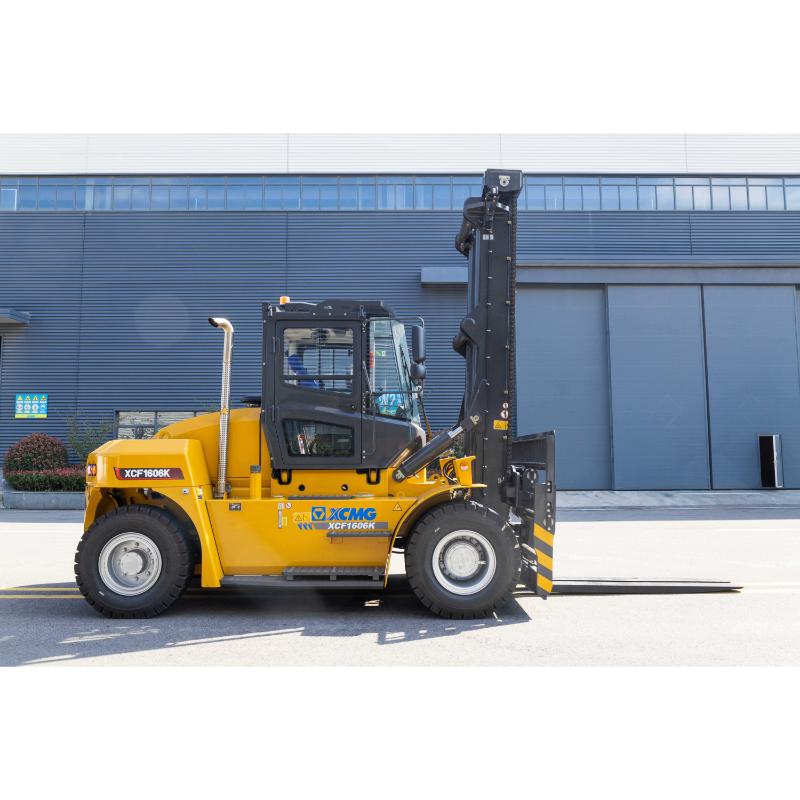

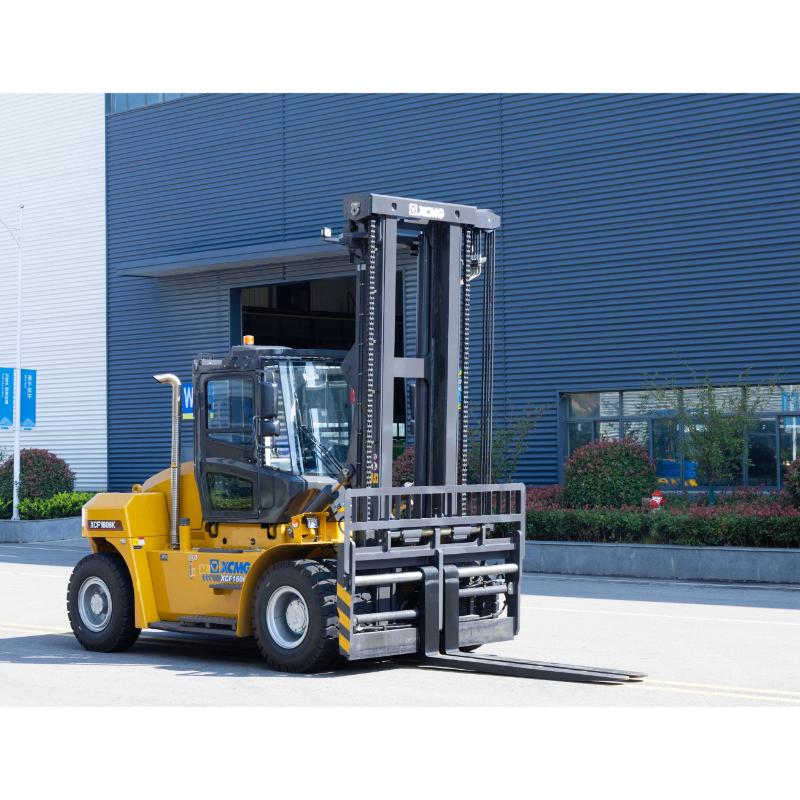

The XCF1606K is a 16-ton heavy-duty internal combustion counterbalance forklift designed for heavy-duty applications in steel metallurgy, ports and docks, stone processing, construction machinery manufacturing, and large-scale logistics transportation. The machine utilizes a high-strength frame structure, a heavy-duty drive system, and efficient hydraulic technology, boasting excellent load-bearing capacity, stable operating performance, and superior durability. With its powerful output, excellent handling, and reliable overall stability, the XCF1606K can efficiently complete various heavy-duty cargo handling and loading/unloading tasks.
+
-
1.16-Ton High Load Capacity:
Rated load up to 16,000 kg, meeting the needs of handling steel, stone, large equipment, and heavy industrial materials.
Designed for high-intensity continuous operation, suitable for port and heavy industrial environments.
2. High-Strength Heavy-Duty Structural Design:
Utilizes a reinforced frame and high-strength gantry structure.
High overall rigidity and excellent impact resistance.
Enhancing the equipment's durability and safety under heavy-duty conditions.
3. Powerful and Reliable Power System:
Equipped with a high-performance diesel engine (126 kW).
Output torque reaches 746 N·m, providing ample power reserves.
Meets the requirements for heavy-duty starts and complex operating environments.
4. Highly Efficient Operation Performance:
Maximum lifting height: 3000 mm; Lifting speed: Up to 400 mm/s (unloaded).
Improves loading and unloading efficiency and reduces operation time.
5. Excellent Overall Stability:
Weighing only 19,845 kg, with a rationally designed center of gravity.
Wide track and long wheelbase structure improve stability under heavy loads.
Adaptable to uneven and complex working environments.
6. Strong traction and climbing ability
Maximum traction: 145kN
Maximum climbing ability: 23%
Suitable for slopes, ports, and heavy-duty transport environments.
7. Flexible handling and maneuverability
Minimum turning radius: 4,480mm
Balancing heavy tonnage with maneuverability, allowing for flexible operation even in confined spaces.
8. Comfortable and safe driving environment
Equipped with a ROPS safety cab.
Provides a wide field of vision and a rational layout.
Enhances comfort and safety during long-term operation.
01
Powerful 16-ton Load Capacity Rated Load: 16,000 kg Designed for handling steel, stone, and large industrial equipment, meeting heavy-duty requirements.
02
Highly Efficient Loading and Unloading Performance Maximum Lifting Height: 3,000 mm Lifting Speed: Up to 400 mm/s (unloaded) Improves loading and unloading efficiency and shortens operation cycles.
03
Powerful Power and Traction Capacity Engine Power: 126 kW Maximum Traction Force: 145 kN Sufficient power, suitable for continuous operation environments in ports and heavy industries.
04
Stable and Reliable Heavy-Duty Design Total Weight: 19,845 kg Maximum Gradeability: 23% Ensures stability and safety under complex working conditions.
| Parameter | Unit | XCF1606K |
|---|---|---|
| Model | - | XCF1606K |
| Drive | - | Diesel |
| Rated Load | kg | 16,000 |
| Load Center Distance | mm | 600 |
| Wheelbase | mm | 3,250 |
| Front Overhanging | mm | 795 |
| Rear Overhanging | mm | 850 |
| Service Weight | kg | 19,845 |
| Full-loaded Axle Load (Front/Rear) | kg | 32,271 / 3,574 |
| Unloaded Axle Load (Front/Rear) | kg | 9,403 / 10,442 |
| Tire Type | - | Pneumatic Tires |
| Tire Size (Front/Rear) | - | 12.00-20-20PR |
| Front Wheel Tread | mm | 1,888 |
| Rear Wheel Tread | mm | 2,120 |
| Mast Tilting Angle (Front/Rear) | ° | 6 / 12 |
| Mast Lowered Height | mm | 3,385 |
| Free Lifting Height | mm | 85 |
| Standard Maximum Lifting Height | mm | 3,000 |
| ROPS Cab Height | mm | 3,355 |
| Overall Length | mm | 6,265 |
| Overall Width | mm | 2,570 |
| Fork Size (L × W × T) | mm | 1370 × 200 × 85 |
| Fork Carriage Width | mm | 2,490 |
| Ground Clearance Under Load | mm | 265 |
| Min. Turning Radius | mm | 4,480 |
| Fork Outer Spread Adjustment Range | mm | 2,370 / 500 |
| Traveling Speed (Loaded/Unloaded) | km/h | 28 / 30 |
| Lifting Speed (Loaded/Unloaded) | mm/s | 350 / 400 |
| Lowering Speed (Loaded/Unloaded) | mm/s | 400 / 400 |
| Full-Load Traction Force | kN | 145 |
| Gradeability (Loaded/Unloaded) | % | 23 |
| Driving Brake / Parking Brake | - | Hydraulic / Hydraulic |
| Rated Power / RPM | kW/rpm | 126 / 2000 |
| Torque / RPM | N·m/rpm | 746 / 1200 |
| Number of Cylinders | - | 6 |
| Bore × Stroke | mm | 107 × 124 |
| Emission Standard | - | Stage III |
| Overall Length (Forks Excluded) | mm | 4,895 |
| Maximum Height (Mast Raised) | mm | 4,865 |
With a rated load of 16 tons, a lifting height of 3000mm, a powerful 126kW engine, and a superior heavy-duty structural design, the XCF1606K forklift can efficiently handle material handling tasks in complex environments such as steel metallurgy, ports and docks, stone processing, and large-scale industrial logistics. The machine utilizes a high-strength frame and a stable and reliable power transmission system, ensuring both strong load-bearing capacity and operational efficiency and safety. Whether for high-intensity continuous operation or heavy cargo loading and unloading, the XCF1606K provides users with a stable, efficient, and economical material handling solution, making it an ideal choice for medium to large-scale industrial and port transportation sectors.
