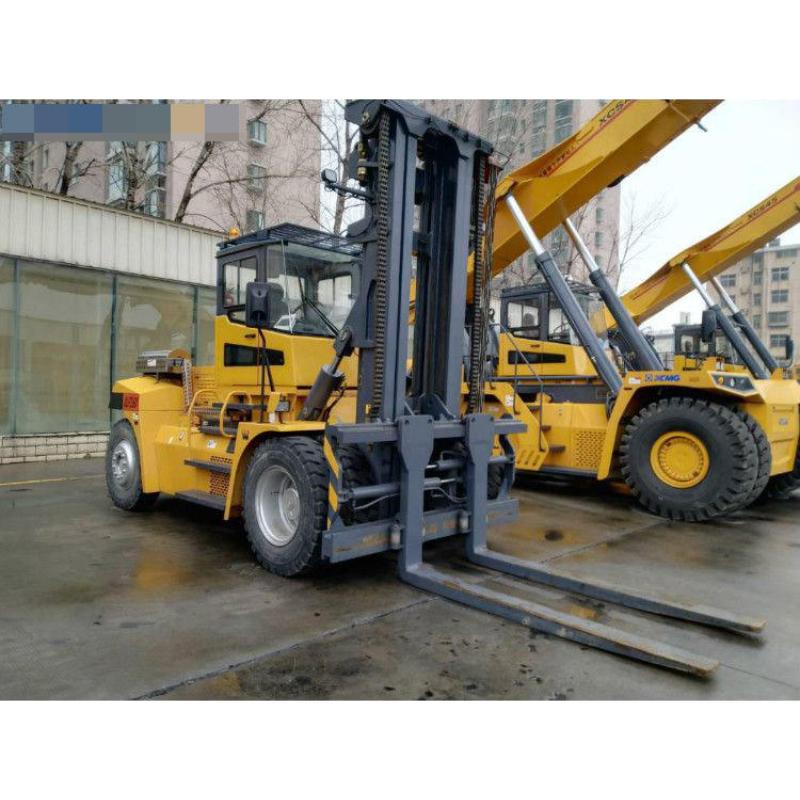

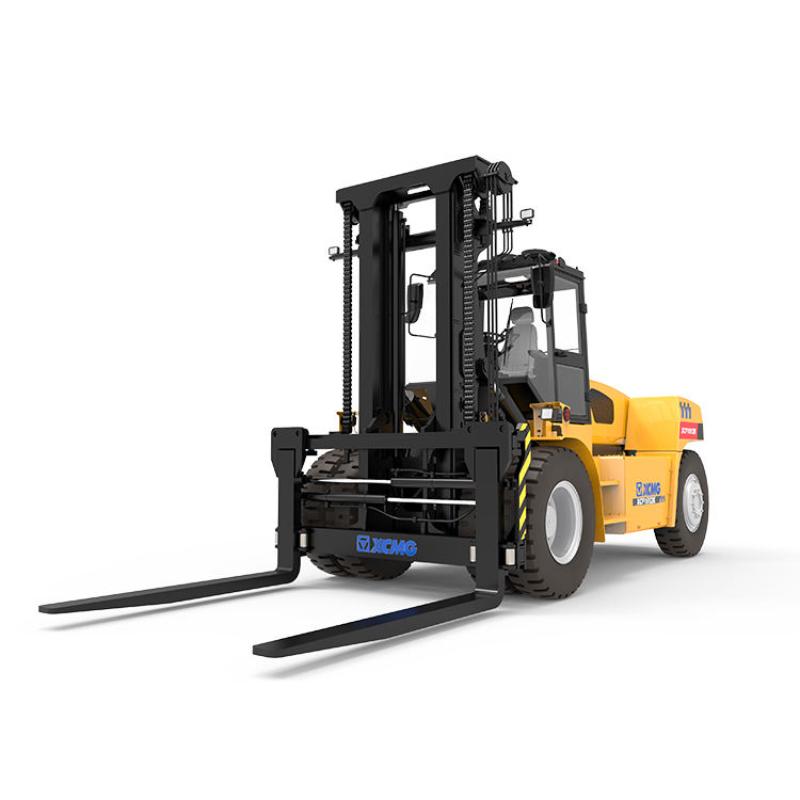

The XCF2512K is a 25-ton heavy-duty counterbalance forklift designed for heavy-duty material handling applications in ports, steel mills, wind power equipment manufacturing, construction machinery manufacturing, and large logistics centers. The machine features a high-strength structural design, a heavy-duty drive system, and advanced hydraulic control technology, providing excellent load-bearing capacity, stable operating performance, and high loading and unloading efficiency. With a 25-ton rated load, a 4-meter lifting height, and a reliable power configuration, the XCF2512K can easily handle the handling of large equipment, steel components, containers, and heavy industrial materials.
+
-
1.Extreme 25-ton Load Capacity:
Rated load up to 25,000 kg.
Designed specifically for handling large equipment, steel structures, wind power components, and heavy industrial materials.
Meets the heavy-duty operation requirements of ports, docks, and heavy industry.
2. High-Strength Heavy-Duty Structural Design:
Utilizes a reinforced frame and heavy-duty gantry structure.
Weighing only 38,150 kg, it offers enhanced stability.
Suitable for continuous high-load operation.
3. Powerful and Reliable Power System:
Equipped with a 194kW high-power diesel engine.
Maximum torque of 1175 N·m, providing ample power reserves.
Meets the needs of heavy-duty starts and complex operating conditions.
4. Highly Efficient Loading and Unloading Capacity:
Maximum lifting height of 4,000 mm.
Maximum lifting speed of 310 mm/s (unloaded).
Effectively improves cargo loading and unloading efficiency.
5. Excellent Towing and Climbing Performance:
Maximum traction force of 242 kN.
Maximum climbing ability 25%.
Easily handles ramps, docks, and complex working conditions.
6. Wide Frame and Fork Design
Fork dimensions: 2440×250×110mm.
Fork spacing adjustment range: 820-2700mm.
Adaptable to various large cargo handling needs.
7. Excellent Overall Stability
Wheelbase: 4250mm.
Wide track design enhances safety and stability during heavy-duty handling.
Meets the requirements for handling large industrial equipment.
8. Comfortable and Safe Driving Environment
Equipped with a ROPS safety cab.
Open field of vision and comfortable operation.
Effectively reduces driver fatigue.
01
25-ton Ultra-large Load Capacity A rated load of 25,000 kg easily handles heavy material handling.
02
High-Torque Diesel Power System A high-power engine provides more stable power output under heavy-duty conditions.
03
Reinforced Heavy-Duty Structural Design Strengthened frame and mast for greater impact resistance and durability.
04
High Stability and Safe Operation Long wheelbase and low center of gravity design enhance safety during fully loaded operations.
| Parameter | Unit | XCF2512K |
|---|---|---|
| Model | - | XCF2512K |
| Drive Type | - | Diesel |
| Rated Load Capacity | kg | 25,000 |
| Load Center Distance | mm | 1,200 |
| Wheelbase | mm | 4,250 |
| Front Overhang | mm | 1,115 |
| Rear Overhang | mm | 982 |
| Service Weight | kg | 38,150 |
| Full-loaded Axle Load (Front/Rear) | kg | 56,658 / 6,300 |
| Unloaded Axle Load (Front/Rear) | kg | 18,030 / 19,928 |
| Tire Type | - | Pneumatic Tires |
| Tire Size (Front/Rear) | - | 14.00-24-28PR |
| Front Wheel Tread | mm | 2,202 |
| Rear Wheel Tread | mm | 2,512 |
| Mast Tilting Angle (Front/Rear) | ° | 6 / 10 |
| Mast Lowered Height | mm | 3,995 |
| Free Lifting Height | mm | 110 |
| Standard Maximum Lifting Height | mm | 4,000 |
| ROPS Cab Height | mm | 3,795 |
| Overall Length | mm | 8,790 |
| Overall Width | mm | 3,035 |
| Fork Size (L × W × T) | mm | 2440 × 250 × 110 |
| Fork Carriage Width | mm | 3,000 |
| Ground Clearance Under Mast at Full Load | mm | 270 |
| Aisle Width for 1000 × 1200 Pallet (Transverse) | mm | 9,575 |
| Aisle Width for 800 × 1200 Pallet (Longitudinal) | mm | 9,575 |
| Minimum Turning Radius | mm | 5,817 |
| Fork Outer Spread Adjustment Range (Max./Min.) | mm | 2,700 / 820 |
| Traveling Speed (Loaded/Unloaded) | km/h | 22 / 24 |
| Lifting Speed (Loaded/Unloaded) | mm/s | 280 / 310 |
| Lowering Speed (Loaded/Unloaded) | mm/s | 300 / 300 |
| Full-load Traction Force | kN | 242 |
| Gradeability (Loaded/Unloaded) | % | 25 |
| Driving Brake / Parking Brake | - | Hydraulic / Hydraulic |
| Rated Power / RPM | kW/rpm | 194 / 2200 |
| Torque / RPM | N·m/rpm | 1175 / 1350 |
| Number of Cylinders | - | 6 |
| Bore × Stroke | mm | 110 × 135 |
| Emission Standard | - | Stage III |
| Overall Length (Forks Excluded) | mm | 6,350 |
| Maximum Height with Mast Raised | mm | 5,950 |
The XCF2512K 25-ton heavy-duty forklift is designed for high-intensity working conditions, integrating massive load capacity, powerful output, and a highly reliable structure. It enables efficient, continuous, and stable material handling operations in mining, port, and heavy industrial settings. Its reinforced frame and optimized stability design not only enhance overall machine durability but also significantly improve operational safety under complex conditions.
With its outstanding load-bearing capacity and reliable overall performance, the XCF2512K provides a highly efficient, low-failure-rate solution for heavy-duty logistics handling, making it a reliable choice for heavy material handling applications.
