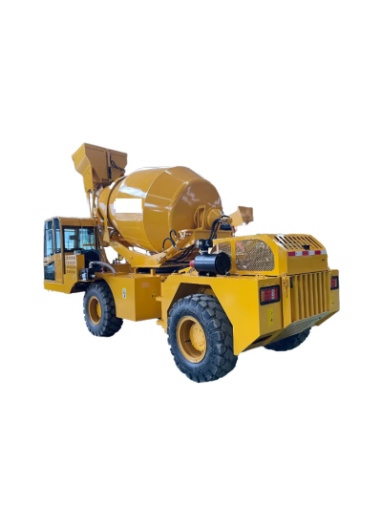

The SLM3500 is a medium-sized self-loading concrete mixer truck that integrates automatic loading, mixing, transportation, and unloading. It is suitable for small to medium-sized construction projects, municipal construction, rural construction, and mining operations. The machine has a compact structure and high maneuverability, allowing for flexible operation in narrow or complex road conditions.
This model typically features a hydraulically driven self-loading system and a high-efficiency mixing drum, with a single discharge capacity of approximately 3.5 m³. This high production efficiency reduces reliance on external loading equipment and manual labor, effectively lowering construction costs. The vehicle boasts high reliability and easy maintenance, making it suitable for overseas markets and continuous construction needs. It is a self-loading mixer truck model offering excellent value for money.
+
-
01
Integrated operation, high efficiency: Integrates loading, mixing, transportation, and unloading into one unit, eliminating the need for external loading equipment and commercial concrete plants, significantly improving construction efficiency and reducing labor and equipment costs.
02
3.5 m³ discharge capacity, wide applicability: Moderate single discharge capacity balances production capacity and mobility, suitable for small to medium-sized projects, municipal construction, and dispersed overseas sites.
03
4×4 four-wheel drive + articulated steering, good passability: Four-wheel drive combined with articulated hydraulic steering provides a small turning radius, adapting to muddy, inclined, and complex working conditions.
04
Reliable structure, simple maintenance: Key components are highly interchangeable, the hydraulic system is stable, and daily maintenance is convenient, suitable for high-intensity and continuous operating environments.
SLM3500 Mixer Product Parameters
Overall Parameter | |
Model | SLM3500 |
Dimension (L×W×H) | 7117×2500×3331 mm |
Weight (approx.) | 8600 kg |
Performance | |
Mixing Drum Capacity | Drum capacity 5.3m³,Concrete output: 3.5 m³ per batch |
Mixing Speed | 0-20rpm in full, infinitely variable speed change |
Loading Speed | 3 shovels/min, 650L/Shovel |
Water Pumping Capacity | 1.5 min/batch, 40 t/hour |
Traveling Speed | Low Speed: 0-10km/hour / High Speed: 0-20km/hour |
Drum Rotation | Horizontal rotation 270° |
Transmission Type | 4 wheel drive and 4 wheel steering |
Electrical System | 24V |
Water Tank Capacity | 2x350L |
Diesel Tank Capacity | 150L |
Hydraulic Oil Tank Capacity | 125L |
Engine | |
Model | YC4A125Z |
Manufacturer | YUCHAI |
Rated Power | 92 KW |
Displacement | 4.84 L |
The SLM3500 integrates loading, mixing, and transportation, with a single discharge capacity of 3.5 m³, offering high efficiency and strong mobility. Equipped with 4×4 four-wheel drive and articulated steering, it adapts to complex working conditions and is easy to maintain, making it a practical self-loading mixer for small and medium-sized projects and overseas markets.
