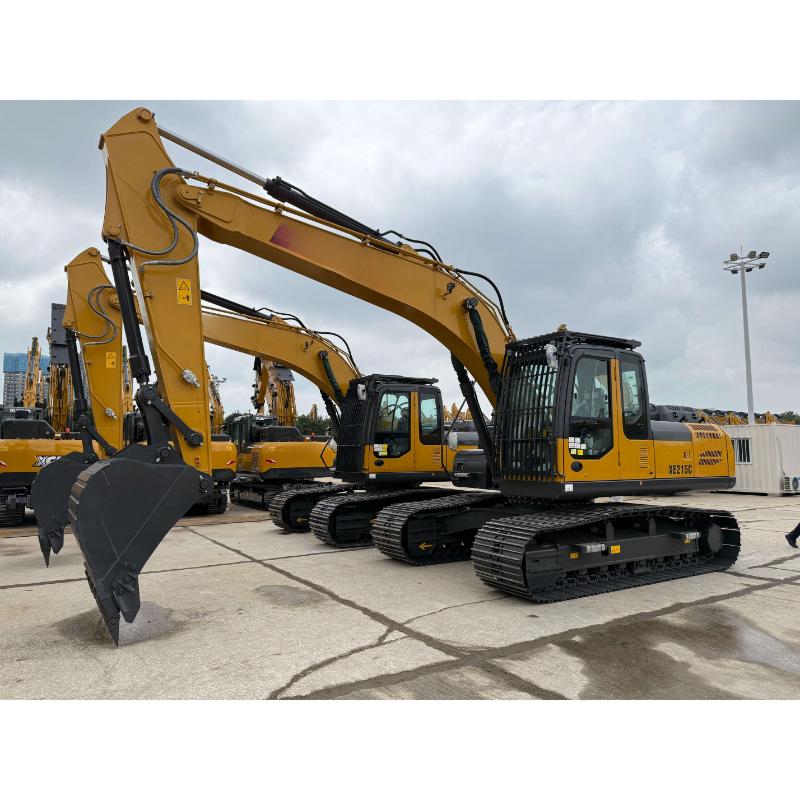

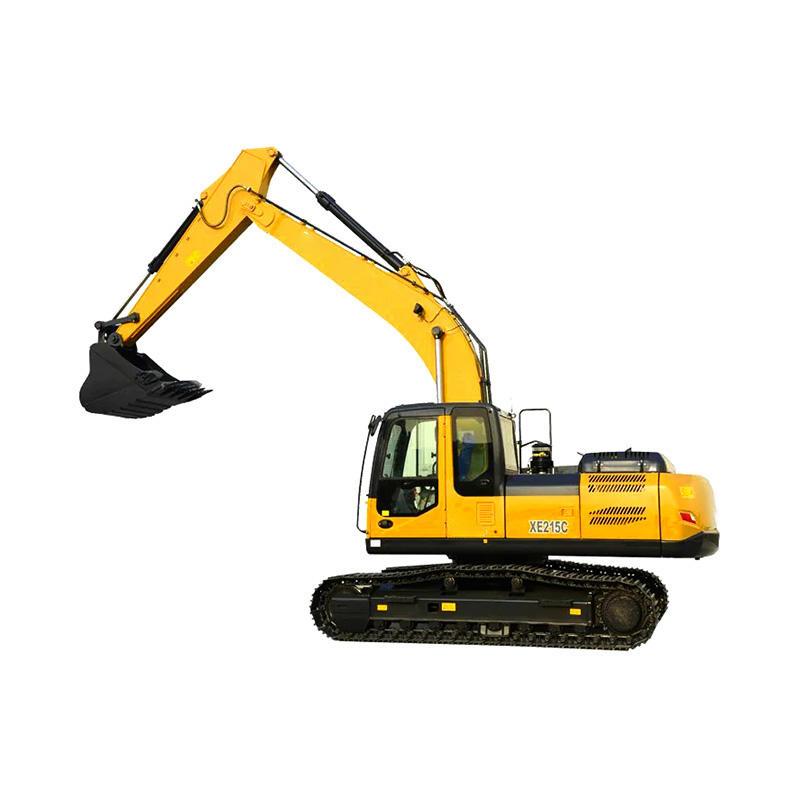

The XE215C is a classic and reliable 21-ton tracked excavator, widely used in earthmoving, foundation construction, road construction, and mining operations. As a mature and best-selling model, the XE215C offers a balanced performance in terms of power, efficiency, and durability, meeting the demands of long-term, high-intensity construction.
This model utilizes a stable and efficient power system and mature hydraulic technology, ensuring smooth and coordinated digging, slewing, and traveling movements, improving work efficiency while maintaining operator comfort. The machine's robust and durable structure, with reinforced key components, ensures excellent reliability and long service life even under complex working conditions.
+
-
Engine: Equipped with Yuchai YC6J185-T20 engine, rated power is 136kW (about 182 horsepower), with strong power output, suitable for high-load work.
Working weight: about 21,500kg, it is a medium-sized excavator, suitable for a variety of construction environments.
Bucket capacity: 0.8-1.2m³, choose the appropriate bucket type according to different working conditions to meet the needs of different earthwork operations.
Digging depth: up to 6810mm, suitable for deep digging tasks.
Digging height: up to 9880mm, suitable for high-altitude operation requirements.
Maximum digging radius: 10380mm, can easily complete a wide range of digging work.
Hydraulic system: efficient load-sensitive hydraulic system (LUDV), quick response, high work efficiency.
Driving speed: The maximum driving speed is 5.5km/h, suitable for long-distance transfer.
Maximum climbing ability: 70%, able to adapt to more complex working environments and slope operations.
Fuel tank capacity: 350L, ensuring the fuel demand during long-term work.
Cab: Spacious and comfortable cab, equipped with modern control system and air conditioning to ensure the comfort of the operator.
Efficient operation capability: XE215C has a powerful power system and an efficient hydraulic system, which can provide excellent operation performance in various complex earthwork operations and deep excavation tasks, meeting the needs of various working conditions.
Low fuel consumption, energy saving and environmental protection: The optimized power and hydraulic systems enable XE215C to maintain low fuel consumption while operating efficiently, reducing operating costs and reducing environmental pollution.
Excellent stability and durability: With high-strength materials and optimized design, XE215C has high mechanical strength and durability, can cope with high-load operations, reduce equipment failures and improve work efficiency.
Comfortable operating environment: The spacious cab design, air conditioning system and humanized operation layout enable operators to maintain a comfortable working state for a long time, effectively improve work efficiency and reduce fatigue.
Intelligent management system: The intelligent control system not only improves the convenience of operation, but also can perform fault diagnosis and automatically adjust working parameters, improving the work efficiency and reliability of the equipment.
High cost performance: XE215C has performance comparable to similar products, but the price is highly competitive. It is suitable for small and medium-sized projects and various construction sites. It is a very cost-effective choice.
01
Powerful Powertrain: Isuzu engine 106.5kW + dual main pumps 2×206L/min, providing stable output and high operating efficiency.
02
High Digging Force: Bucket digging force 138kN, boom 103kN, easily handling heavy-duty conditions.
03
Wide Operating Range: Maximum digging depth 6655mm, maximum radius 9925mm, providing wider construction coverage.
04
Stable and Reliable Chassis: 21.45-ton weight + 600mm track shoes ensure strong stability and enhanced safety in complex working conditions.
| Category | Item | Specification |
|---|---|---|
| General Information | Model | XE215C |
| Machine Type | Crawler Excavator | |
| Power Type | Conventional | |
| Bucket Type | Backhoe | |
| Operating Weight | 21,450 kg | |
| Bucket Capacity | 1.0 m³ | |
| Dimensions | Boom Length | 5,680 mm |
| Arm Length | 2,910 mm | |
| Overall Dimensions (L×W×H) | 9,525 × 2,990 × 3,000 mm | |
| Track Shoe Width | 600 mm | |
| Track Gauge | 2,390 mm | |
| Minimum Ground Clearance | 470 mm | |
| Counterweight Clearance | 1,050 mm | |
| Tail Swing Radius | 2,750 mm | |
| Engine | Engine Model | ISUZU BB-6BG1TRP |
| Rated Power | 106.5 kW | |
| Hydraulic System | Main Pump Flow | 2 × 206 L/min |
| Travel Circuit Pressure | 34.3 MPa | |
| Swing Circuit Pressure | 28 MPa | |
| Fluid Capacities | Fuel Tank | 360 L |
| Hydraulic Tank | 220 L | |
| Engine Oil Capacity | 25 L | |
| Performance | Travel Speed | 5.5 / 3.5 km/h |
| Bucket Digging Force | 138 kN | |
| Arm Digging Force | 103 kN | |
| Working Range | Max Digging Radius | 9,925 mm |
| Max Digging Depth | 6,655 mm | |
| Max Digging Height | 9,640 mm | |
| Max Dumping Height | 6,800 mm | |
| Max Vertical Digging Depth | 5,695 mm |
The XE215C tracked excavator boasts powerful performance, high efficiency, and stable operation as its core advantages, while also prioritizing durability and economy. It excels in earthmoving, municipal construction, and mining applications. With a mature and reliable overall configuration and low maintenance costs, it offers users higher uptime and a better return on investment, making it a classic and mainstream choice among 21-ton excavators.
