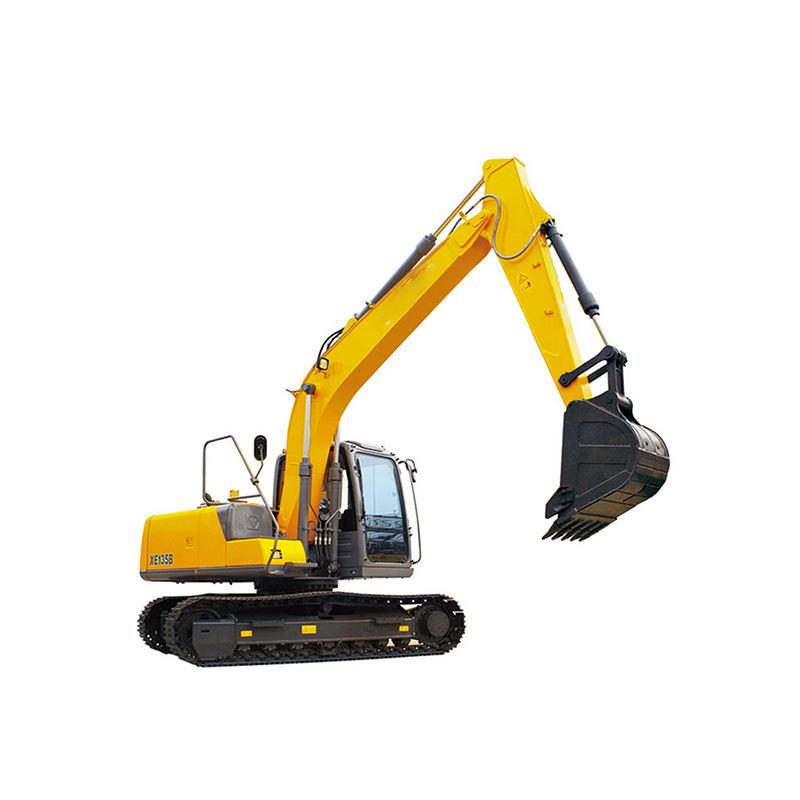

The XE135B is a stable 13.5-ton tracked excavator designed for medium-sized projects and multi-condition construction. Equipped with a mature and reliable power system and efficient hydraulic configuration, the machine achieves smooth operation and rapid response, enabling efficient work in earthwork excavation, pipeline construction, municipal construction, and foundation engineering.
+
-
XE135B hydraulic excavator is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on, it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency.
New generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced.
1. Engine
Imported Isuzu BB-4BG 1TRP engine is used, featuring powerful force, low noise, low fuel consumption, and more reliable operation.
2. Hydraulic system
Advanced energy-saving hydraulic system is used, and key hydraulic components are imported intenational brands, to ensure quality of the product; combined with latest research results, energy consumption is low and accurate control is achieved, to ensure powerful digging force and excellent operation efficiency.
3. Wider cab/new suspension seat
With increased interior space and 360° wider vision applied, it created a pleasant working environment for operators. Seat designed according to ergonomic principles is used, thus greatly enhancing comfort, with seat height adjustable by driver's weight through suspension air bag, such that operation is more comfortable.
01
Powerful Performance Equipped with an Isuzu engine, delivering 72.7 kW of power and 337.6 N·m of torque for stable and efficient output.
02
High-Efficiency Hydraulic System Features dual main pumps (2 × 123 L/min) with a maximum pressure of 34.3 MPa, ensuring rapid response and high operational efficiency.
03
Robust Excavation Force Boasts a bucket digging force of 85 kN and an arm digging force of 65 kN, effortlessly handling medium-duty working conditions.
04
Extensive Operating Range Offers a maximum digging depth of 5,538 mm and a maximum radius of 8,296 mm, enhancing construction coverage and efficiency.
| Category | Item | Specification |
|---|---|---|
| General Information | Model | XE135B |
| Operating Weight | 13,000 kg | |
| Bucket Capacity | 0.4–0.52 m³ | |
| Engine | Engine Model | ISUZU BB-4BG1TRP |
| Direct Injection | √ | |
| 4-Stroke | √ | |
| Water-Cooled | √ | |
| Turbocharged | √ | |
| Air-to-Air Intercooler | × | |
| Number of Cylinders | 4 | |
| Rated Power / Speed | 72.7 kW / 2,200 rpm | |
| Max Torque / Speed | 337.6 N·m / 1,600 rpm | |
| Displacement | 4.329 L | |
| Performance | Travel Speed | 5.16 / 3.03 km/h |
| Swing Speed | 12.3 r/min | |
| Gradeability | ≤35° | |
| Ground Pressure | 42 kPa | |
| Bucket Digging Force | 85 kN | |
| Arm Digging Force | 65 kN | |
| Max Traction Force | 134 kN | |
| Hydraulic System | Main Pump | 2 Piston Pumps |
| Main Pump Rated Flow | 2 × 123 L/min | |
| Main Relief Valve Pressure | 31.4 / 34.3 MPa | |
| Travel Circuit Pressure | 34.3 MPa | |
| Swing Circuit Pressure | 25 MPa | |
| Pilot Pressure | 3.9 MPa | |
| Fluid Capacities | Fuel Tank | 250 L |
| Hydraulic Tank | 130 L | |
| Engine Oil | 14 L | |
| Dimensions | Overall Length | 7,770 mm |
| Overall Width | 2,512 mm | |
| Overall Height | 2,880 mm | |
| Upperstructure Width | 2,512 mm | |
| Track Length | 3,660 mm | |
| Chassis Width | 2,490 mm | |
| Track Shoe Width | 500 mm | |
| Track Base | 2,910 mm | |
| Track Gauge | 1,990 mm | |
| Counterweight Clearance | 964 mm | |
| Minimum Ground Clearance | 478 mm | |
| Tail Swing Radius | 2,294 mm | |
| Working Range | Max Digging Height | 8,641 mm |
| Max Dumping Height | 6,181 mm | |
| Max Digging Depth | 5,538 mm | |
| 8 ft Level Digging Depth | 5,287 mm | |
| Max Vertical Digging Depth | 4,727 mm | |
| Max Digging Radius | 8,296 mm | |
| Min Swing Radius | 2,335 mm | |
| Standard Configuration | Boom Length | 4,600 mm |
| Arm Length | 2,510 mm | |
| Bucket Capacity | 0.52 m³ |
With its stable and reliable power system, highly efficient hydraulic performance, and exceptional digging capabilities, the XE135B excavator delivers outstanding performance in earthmoving operations, municipal projects, and infrastructure construction. Featuring a robust structural design and stable operation, the machine strikes an optimal balance between efficiency and durability. Furthermore, it boasts excellent fuel economy and a user-friendly maintenance design, offering users higher uptime, lower operating costs, and a superior return on investment—making it the preferred choice among 13-ton class excavators.
