Operation weight: 7460kg.
Engine: Cummins 4JG1TPC engine, direct injection, 4-stroke, water-cooled, turbocharged, displacement 3.059L, rated power 53.8kW/2150rpm, maximum torque 255N・m/1800rpm.
Travel system: crawler travel, high speed 4.4km/h, low speed 2.4km/h, climbing ability 35°.
Bucket capacity: 0.3m³.
Digging force: bucket digging force 51.2kN, bucket digging force 34.2kN, maximum traction force 68.5kN.
Slewing system: slewing speed 11r/min, slewing system pressure 20.6MPa.
XE80C C Series Features
Powerful power
Advanced hydraulic system
High working efficiency
Comfortable operation
Easy maintenance
Tailless design
Versatility
01
Compact and Efficient Its compact 7.46-ton design makes it suitable for municipal, landscaping, and confined work environments.
02
Stable Power Turbocharged engine + efficient hydraulic system provide fast response and ample power.
03
Strong Digging Force Bug digging force of 51.2 KN and boom digging force of 34.2 KN easily handle small to medium-sized engineering tasks.
04
Stable and Durable Sturdy chassis, fuel-efficient, and easy to maintain, reducing operating costs.
| Category | Item | Specification |
|---|---|---|
| General Information | Operating Weight | 7,460 kg |
| Bucket Capacity | 0.3 m³ | |
| Engine | Engine Model | 4JG1TPC |
| Direct Injection | √ | |
| 4-Stroke | √ | |
| Water-Cooled | √ | |
| Turbocharged | √ | |
| Number of Cylinders | 4 | |
| Rated Power / Speed | 53.8 kW / 2,150 rpm | |
| Max Torque / Speed | 255 N·m / 1,800 rpm | |
| Displacement | 3.059 L | |
| Performance | Travel Speed | 4.4 / 2.4 km/h |
| Swing Speed | 11 r/min | |
| Gradeability | 35° | |
| Ground Pressure | 33.5 kPa | |
| Bucket Digging Force | 51.2 kN | |
| Arm Digging Force | 34.2 kN | |
| Max Traction Force | 68.5 kN | |
| Hydraulic System | Main Pump Rated Flow | 172 L/min |
| Main Relief Valve Pressure | 27.4 MPa | |
| Travel Circuit Pressure | 27.4 MPa | |
| Swing Circuit Pressure | 20.6 MPa | |
| Pilot Pressure | 3.5 MPa | |
| Fluid Capacities | Fuel Tank | 130 L |
| Hydraulic Tank | 115 L | |
| Engine Oil | 9.7 L | |
| Dimensions | Overall Length | 6,144 mm |
| Overall Width | 2,272 mm | |
| Overall Height | 2,682 mm | |
| Upperstructure Width | 2,250 mm | |
| Chassis Width | 2,200 mm | |
| Track Shoe Width | 450 mm | |
| Track Length on Ground | 2,195 mm | |
| Track Gauge | 1,750 mm | |
| Counterweight Ground Clearance | 797 mm | |
| Minimum Ground Clearance | 393 mm | |
| Dozer Blade (W×H) | 2,200 × 396 mm | |
| Working Range | Max Digging Height | 7,135 mm |
| Max Dumping Height | 5,030 mm | |
| Max Digging Depth | 4,160 mm | |
| Max Vertical Digging Depth | 3,485 mm | |
| Max Digging Radius | 6,295 mm | |
| Minimum Swing Radius | 1,800 mm | |
| Tail Swing Radius | 1,805 mm | |
| Dozer Max Lift Height | 363 mm | |
| Dozer Max Dig Depth | 346 mm | |
| Standard Dimensions | Boom Length | 3,720 mm |
| Arm Length | 1,622 mm | |
| Bucket Capacity | 0.3 m³ |

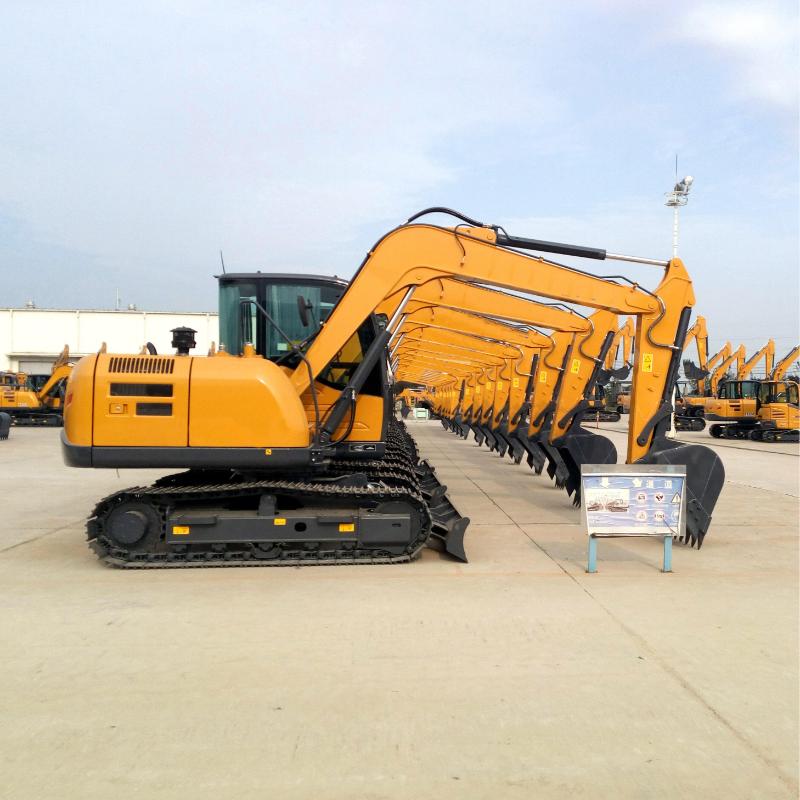

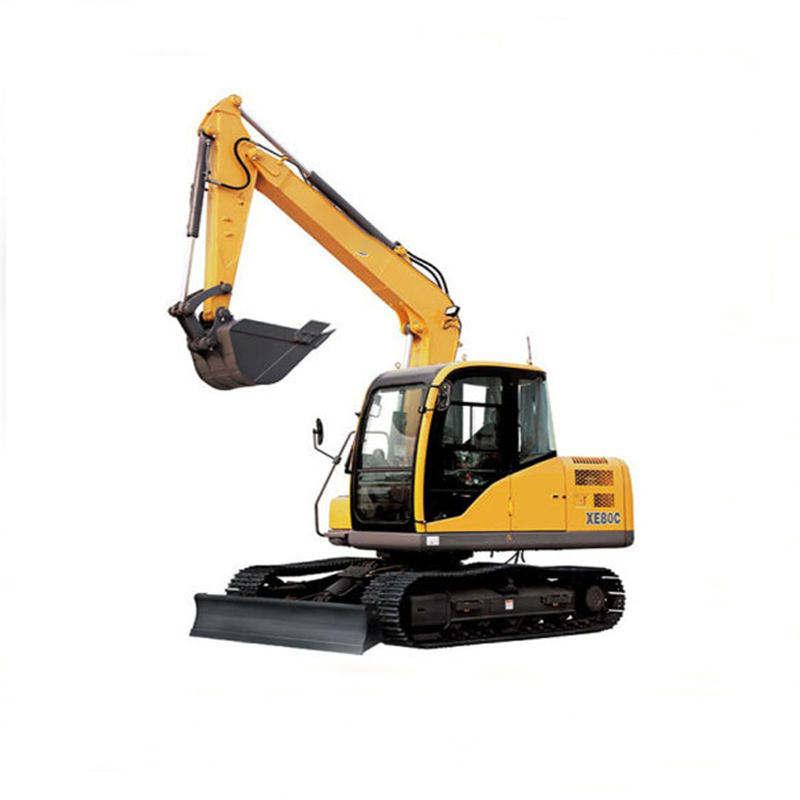

The XE80C excavator boasts compact efficiency, stable power, and strong digging force as its core advantages, while also balancing flexibility and durability. It can operate efficiently in municipal construction, pipeline laying, landscaping, and small to medium-sized projects. Its robust structure, smooth operation, convenient maintenance, and excellent fuel economy provide users with high uptime, low operating costs, and excellent return on investment, making it an ideal excavator choice for small to medium-sized construction projects.
