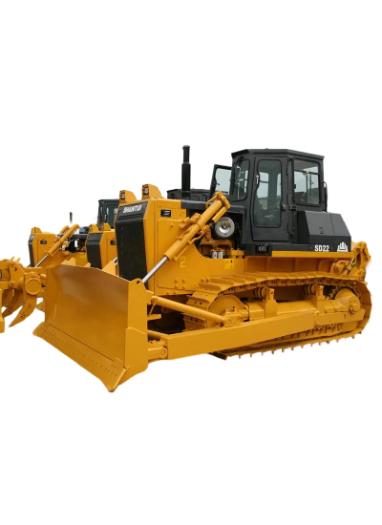

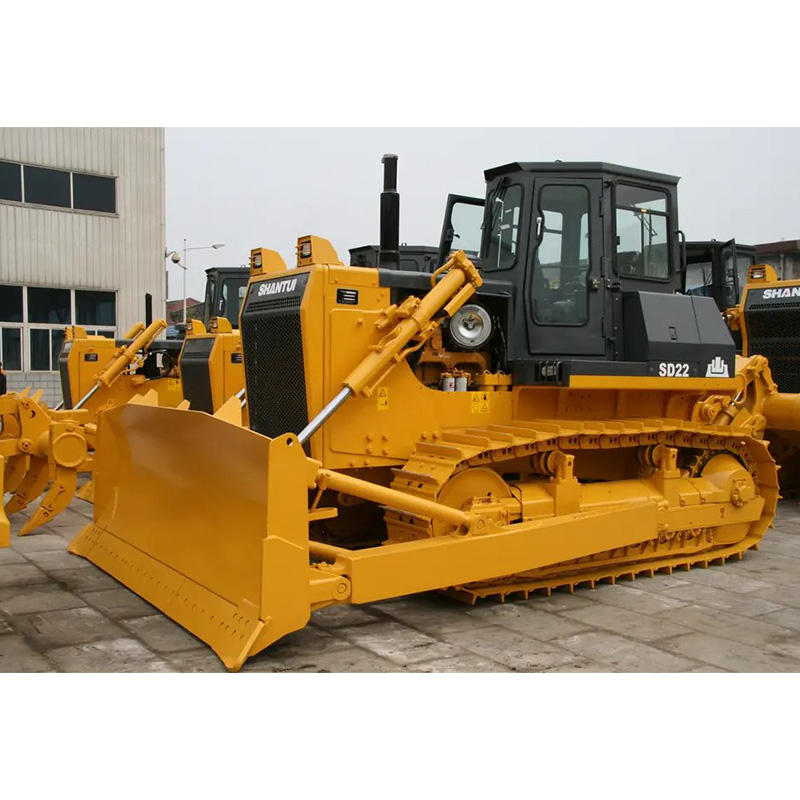

The Shantui SD22 bulldozer is a medium-to-large crawler bulldozer in the 220 horsepower class, characterized by its powerful engine, reliable structure, and strong adaptability to various working conditions. Equipped with a high-performance diesel engine and a mature hydraulic transmission system, it can reliably handle heavy loads and continuous operation, primarily targeting high-intensity construction fields such as mining, road construction, water conservancy, and large-scale earthmoving projects.
+
-
01
Powerful Performance and High Efficiency Equipped with a reliable engine, providing ample power and strong climbing ability, suitable for various complex working conditions, and improving construction efficiency.
02
Excellent Durability and Stability Features a fully welded chassis and high-strength tracks, resistant to wear and impact, ensuring long-term stable operation.
03
Comfortable Operation and Easy Maintenance Humanized cab design with wide field of vision and simple operation, while also facilitating daily maintenance, reducing operating costs.
04
Wide Applicability and Multifunctionality Can be equipped with different blades and attachments, adapting to various construction scenarios such as earthmoving, mining, and forestry, offering high flexibility.
Product Parameters
SD22 (Standard Version) | |
Performance Parameters | |
Working Weight (kg) | 23,450 |
Ground Pressure (kPa) | 66 |
Engine | |
Engine Model | WP12/QSNT-C235 |
Rated Power / Rated Speed (kW/rpm) | 175 / 1800 |
Dimensions | |
Overall Dimensions (mm) | 5495 * 3725 * 3402 |
Travel Performance | |
Forward Speed (km/h) | F1: 0-3.6, F2: 0-6.5, F3: 0-11.2 |
Reverse Speed (km/h) | R1: 0-4.3, R2: 0-7.7, R3: 0-13.2 |
Chassis System | |
Track Center Distance (mm) | 2000 |
Track Pad Width (mm) | 560 / 610 / 660 |
Ground Length (mm) | 2730 |
Fuel Tank Capacity | |
Fuel Tank (L) | 450 |
Working Equipment | |
Blade Type | Straight Blade, Angle Blade, U-blade, Semi-U Blade |
Blade Cutting Depth (mm) | 540 |
Ripper Type | Single Tooth, Three-Tooth |
Ripper Depth (mm) | Single 695, Three 666 |
The SD22 bulldozer boasts powerful performance, exceptional durability, comfortable operation, and wide applicability as its core advantages, helping to complete various engineering projects efficiently. It is a reliable and efficient construction partner.
