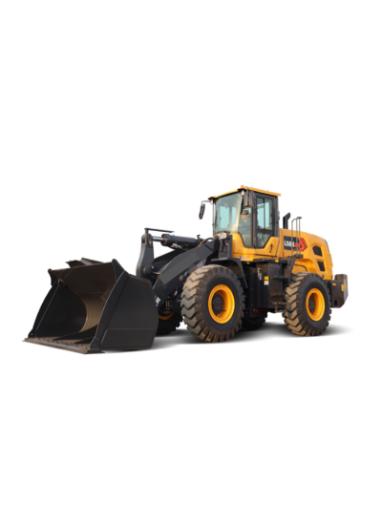

The Shantui L58K-B5 wheel loader is a 5-ton class main loader designed for heavy-duty and high-intensity working conditions. It integrates powerful performance, reliable transmission and robust structure, and is widely used in mines, sand and gravel yards, ports, concrete mixing plants and large-scale infrastructure projects.
+
-
01
Powerful Performance for Heavy-Duty Operations Equipped with a high-performance Weichai engine, delivering strong power and high breakout force to handle demanding mining and loading applications.
02
Reinforced Structure for Superior Durability Heavy-duty frame and reinforced working device made of high-strength steel provide excellent resistance to impact and fatigue in harsh operating conditions.
03
High Efficiency and Easy Operation Optimized machine matching and flexible steering ensure smooth loading cycles and improved productivity.
04
Easy Maintenance and Low Operating Cost Centralized service points and proven reliable components reduce downtime and lower overall operating and maintenance costs.
L58K-B5 wheel loader Product Parameter
| Category | Item | Specification |
|---|---|---|
| Engine | Emission Standard | Stage II |
| Engine Brand | Weichai | |
| Engine Model | WD10G220E23 | |
| Rated Power | 162 kW (220 hp) @ 2,000 rpm | |
| Max. Torque | 900 N·m | |
| Displacement | 9.726 L | |
| Number of Cylinders | 6 | |
| Aspiration | Turbocharged | |
| Performance | Tipping Load | 11,000 kg |
| Breakout Force | 185 kN | |
| Steering Angle | 45° | |
| Dumping Height (Side Dump) | 3,050 mm | |
| Dumping Height (Front Dump) | 1,185 mm | |
| Dump Reach | 4,100 mm | |
| Digging Depth | 116 mm | |
| Side Dump Bucket Capacity | 3.0 m³ | |
| Operating Weight | 18,400 kg | |
| Dimensions | Overall Length | 8,300 mm |
| Overall Width | 3,066 mm | |
| Overall Height | 3,450 mm | |
| Wheelbase | 3,300 mm | |
| Track Width | 2,250 mm | |
| Min. Ground Clearance | 430 mm | |
| Steering Angle | ±35° | |
| Turning Radius (Tire Outside) | 6,685 mm | |
| Turning Radius (Front Tire Center) | 6,385 mm | |
| Turning Radius (Bucket Outside) | 7,280 mm |
The Shantui L58K-B5 wheel loader boasts powerful performance, robust and durable construction, and high-efficiency operation. It is suitable for mining and heavy-duty applications and is a reliable and economical 5-ton loader.
