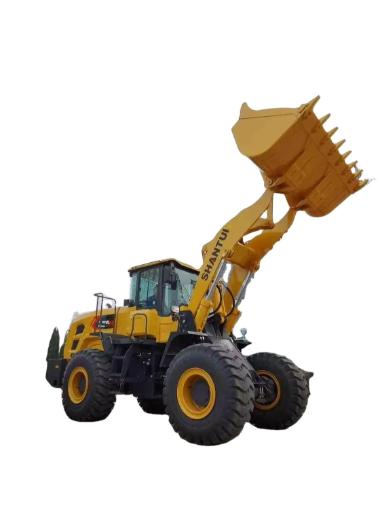

The Shantui L55-B5 wheel loader is a 5-ton class main loader designed for heavy-duty, high-frequency operation. It integrates an efficient power system, reliable transmission and reinforced structure, and is suitable for various application scenarios such as mines, sand and gravel yards, ports, mixing plants and large-scale infrastructure projects.
+
-
01
Powerful Performance for Heavy-Duty Work Equipped with a high-output engine and proven driveline, delivering strong traction and excellent productivity in mining, quarry, and aggregate applications.
02
Robust and Durable Structure Reinforced frame and working device made of high-strength steel provide superior resistance to impact and fatigue, ensuring long service life under harsh conditions.
03
Comfortable and Efficient Operation Spacious cab with wide visibility and ergonomic control layout reduces operator fatigue and improves continuous working efficiency.
04
Easy Maintenance and Low Operating Cost Centralized service points and highly reliable components minimize downtime and reduce overall operating and maintenance costs.

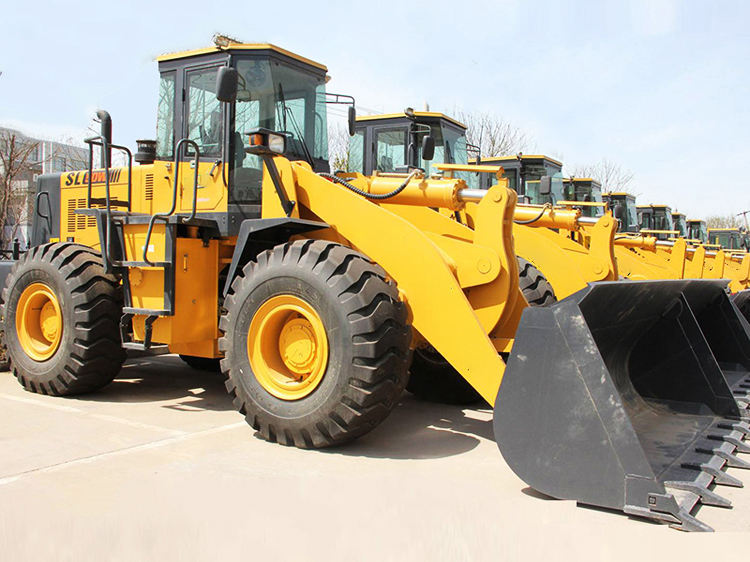

Wheel Loader L55-B5 Product Parameter
| Category | Item | Specification |
|---|---|---|
| Engine | Emission Standard | Stage II |
| Engine Brand | Weichai | |
| Engine Model | WD10G220E23 | |
| Rated Power | 162 kW (220 hp) @ 2000 rpm | |
| Max. Torque | 900 N·m | |
| Displacement | 9.726 L | |
| Number of Cylinders | 6 | |
| Aspiration | Turbocharged | |
| Performance | Tipping Load | 10,000 kg |
| Breakout Force | 170 kN | |
| Steering Angle | 45° | |
| Dumping Height (Side Dump) | 3050 mm | |
| Dumping Height (Front Dump) | 1120 mm | |
| Dump Reach | 4100 mm | |
| Digging Depth | 300 mm | |
| Side Dump Bucket Capacity | 3 m³ | |
| Operating Weight | 16,400 kg | |
| Dimensions | Overall Length | 8220 mm |
| Overall Width | 3066 mm | |
| Overall Height | 3450 mm | |
| Wheelbase | 3250 mm | |
| Track Width | 2238 mm | |
| Min. Ground Clearance | 440 mm | |
| Steering Angle | 35° | |
| Turning Radius (Tire Outside) | 6626 mm | |
| Turning Radius (Front Tire Center) | 6326 mm | |
| Turning Radius (Bucket Outside) | 7200 mm |
The Shantui L55-B5 wheel loader combines powerful performance, rugged durability, efficient operation, and low operating costs, making it a reliable 5-ton class solution for heavy-duty applications.
