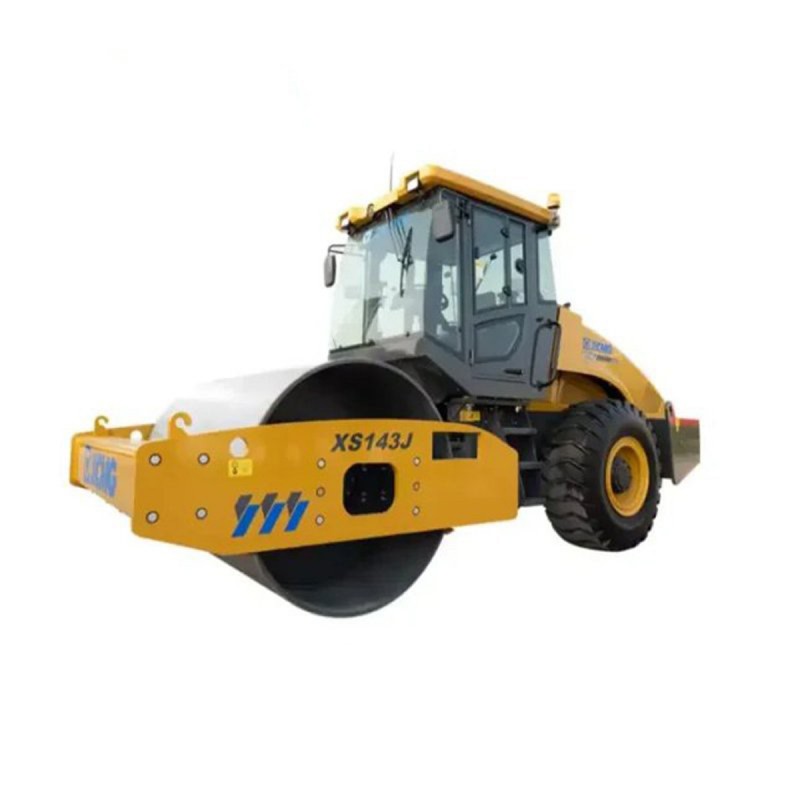

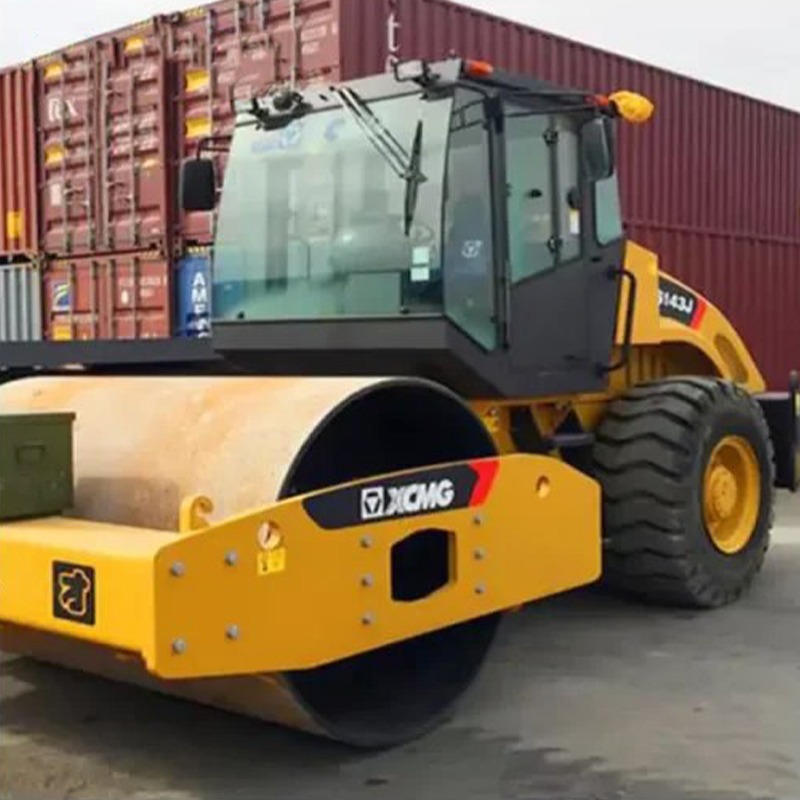

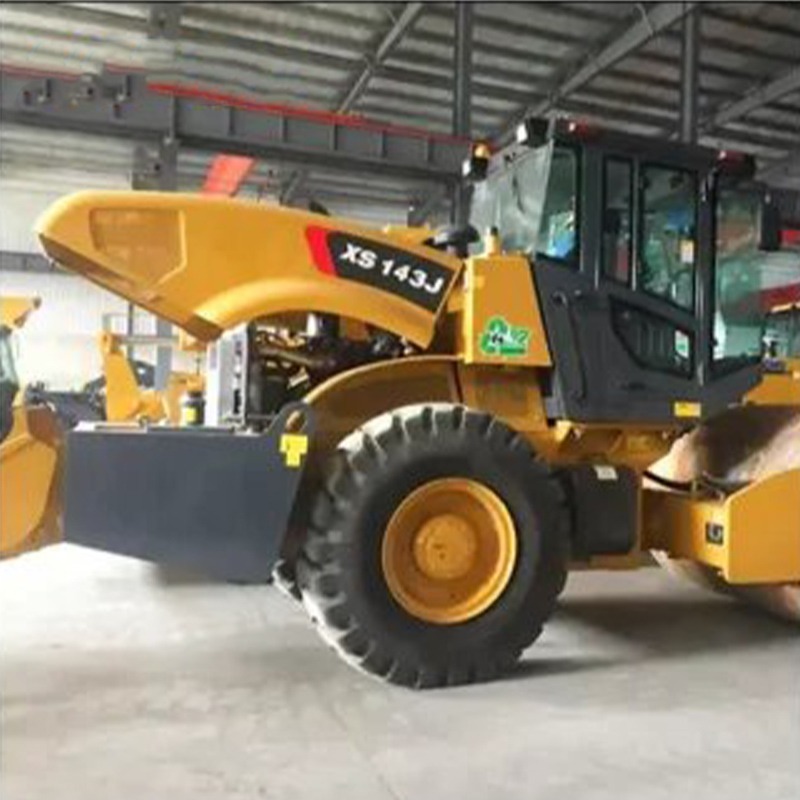

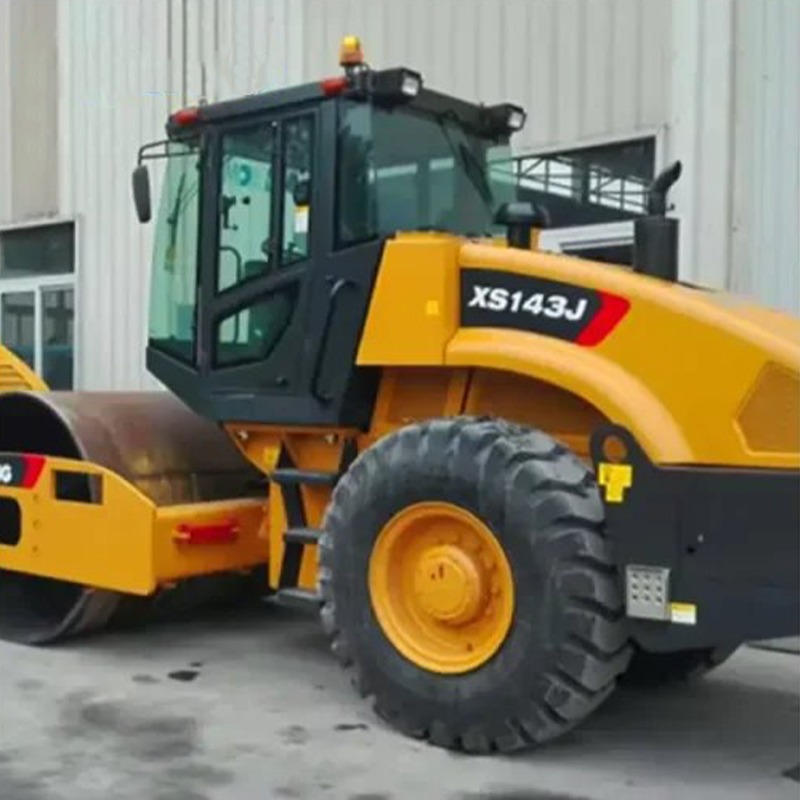

XCMG roller 14 ton compactor XS143J road roller vibratory
XS143Jvibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
Performance feature
The spacious and bright cab features wide view and comfort.
Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
+
-
XCMG roller 14 ton compactor XS143J road roller vibratory
Technical parameters:
● Engine: Equipped with Weichai WP6G175E22 engine, rated power is 128kW (about 172 horsepower), providing strong power and adapting to high-load operations.
● Vibration frequency: 30Hz, providing effective vibration energy.
● Amplitude: 1.8mm, suitable for different compaction needs.
● Machine weight: about 14,300kg, the heavier body improves the compaction effect, suitable for large-scale earthwork and asphalt compaction work.
● Steel wheel width: 2130mm, suitable for medium and large-scale compaction tasks.
● Maximum climbing ability: 30%, can still maintain good operating stability under conditions with large slopes.
● Maximum driving speed: 8km/h, suitable for fast movement and site transfer.
● Working speed: 1-5km/h, can flexibly adjust the compaction speed under different working conditions.
● Fuel tank capacity: 180L, to ensure long-term work.
● Cab: Enclosed cab, equipped with air conditioning and modern operating system, improves operating comfort.
Advantages and Strengths
01
Efficient compaction capability
02
High stability and reliability
03
Optimized work efficiency
04
Comfortable control experience
05
Excellent fuel economy
06
Excellent maneuverability and passability
07
Powerful power, adapting to complex working conditions
Product Parameters
| Industry-specific attributes | |
| Type | light vibratory rollers |
| Power | 103KW |
| Weight | 14000KG |
| Engine Brand | Cummins |
| Other attributes | |
| Travel Speed | 2-11KM /H |
| Grade Ability | 30% |
| Place of Origin | Jiangsu, China |
| Warranty | 1 Year |
| UNIQUE SELLING POINT | high performance |
| Drum | Single Drum Roller |
| Exciting Force | 240/160 |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Not Available |
| Warranty of core components | 1 Year |
| Core Components | Pressure vessel, Motor, Other, Bearing, Gear, PLC, Pump, Engine, Gearbox |
| Brand Name | XCMG |
| Dimension(L*W*H) | 2500*1200*1750mm |
| Hydraulic Pump Brand | XCMG |
| Hydraulic Valve Brand | XCMG |
| After-sales Service Provided | Overseas service center available |
| Wheelbase | 3040mm |
| rated power | 125kw |
| rated speed | 2200r/min |
| high frequency | 35hz |
| low frequency | 25hz |
| height | 3200mm |
| Certification | CE/ISO9001 |
